Cable Stop
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~19 g
- Print time
- ~1 h
- Express shipping
- $20
More information

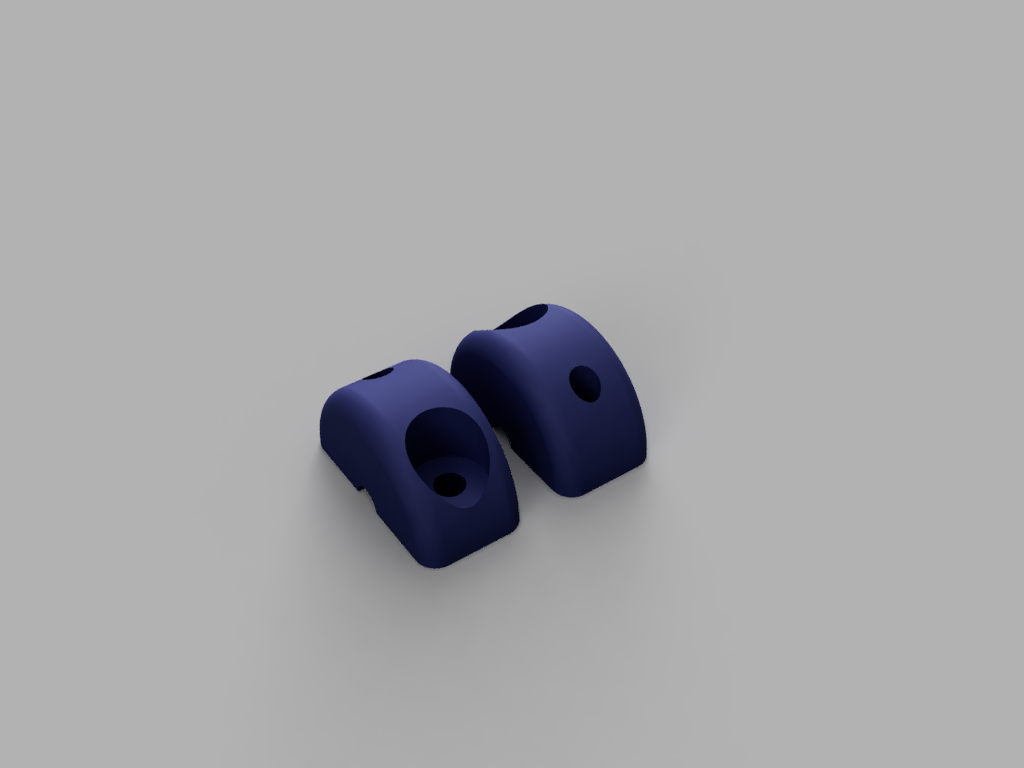

This cable stop is sized to fit the ice transducer cable for the Lowrance Hook series fish finders. However, the part can be resized to fit your needs. Two copies of the part are needed and are assembled with two screws. For the unedited design, two ½ inch - No. 8 screws are needed. I expect the design (resized) might be suitable for electrical cord reels with larger hardware, but obviously not for heavy duty winch applications.
The Fusion 360 model has 4 main parameters to control the sizing:
NameDescriptionTipsDefault Value (mm)
CableDiaDiameter of cableSimply measure the thickness of the cable you are using. This value will adjust the shape of the entire body.4
ScrewHeadDiaDiameter of screw head openingMeasure the head of the screw and add a little extra to ensure and easy fit.9
ScrewInnerThreadHoleDiaDiameter of hole for the side the screw threads grab intoUse the diameter of the shaft of the screw between the screw threads. Go a little larger than that to ensure you don't crack the part.3.4
ScrewOuterThreadHoleDiaDiameter of hole for the threads to pass through on the side where the screw head seatsUse the outer diameter of the screw threads here.4.2
Design and description by MooshSquisher , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Cable Stop is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
