Caravan door holder replacement
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~27 g
- Print time
- ~1.5 h
- Express shipping
- $20
More information
The original holders are worn by sunlight and broken, so it was time to make new ones.

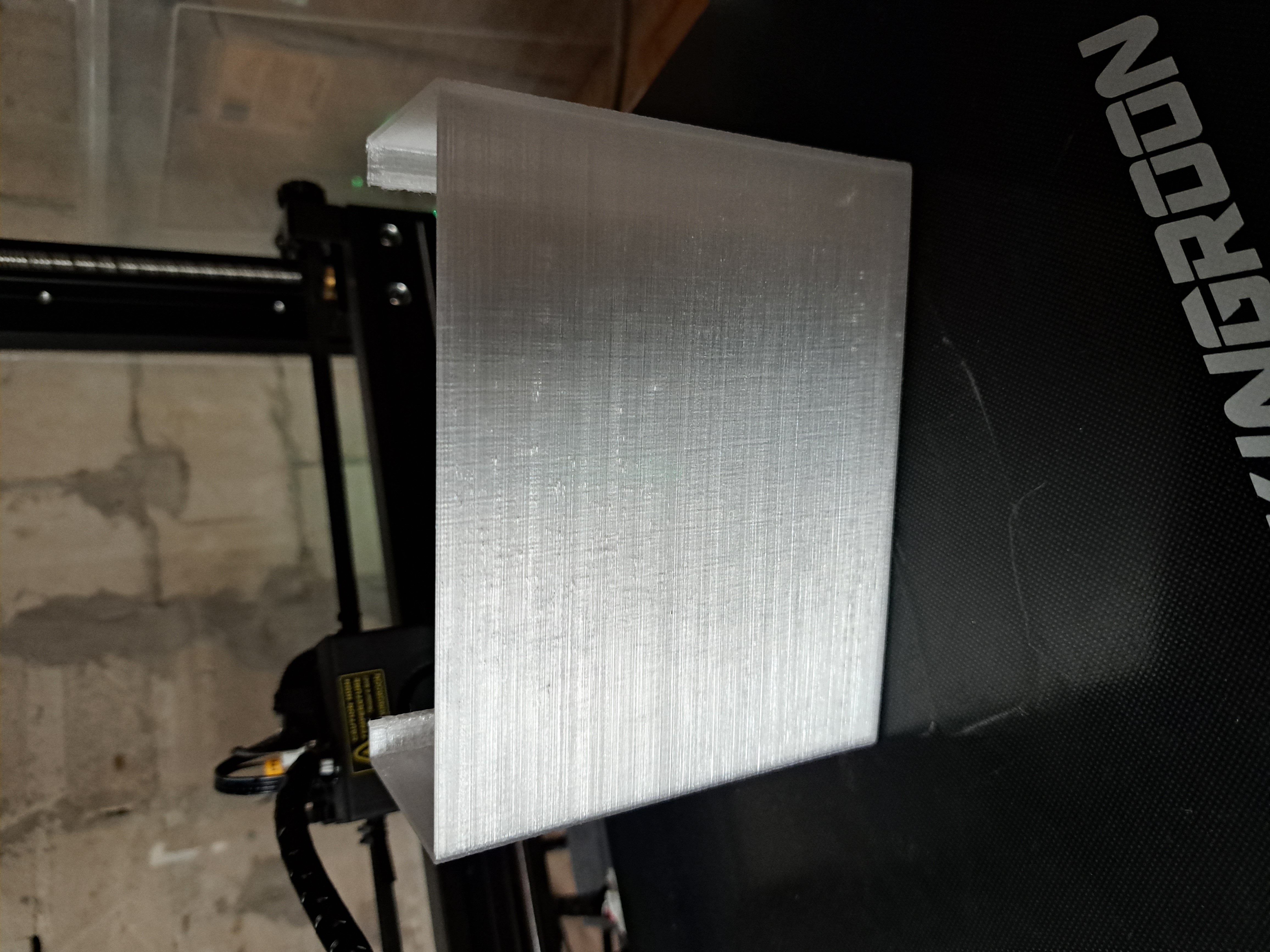

They are printed in clear no-name PETG, which is a lot more flexible than PLA so it doesn’t instantly break when it is bent. Because they are clear(ish) you can easily see if they hold a certain tool.
Print the model upright, otherwise the inner overhangs would need support on top of the front surface. For the little remaining overhangs I used normal tree supports, although default supports may also work great.
Set the seam location to custom/back, that way there is no stringing in the inside of the part and stringing/seam are not visible afterwards.
I also enabled surface ironing so the inner bottom surface is smooth.
For a smooth bottom surface it is essential to have a good bed leveling. If you don’t have a probe, restrict the grid area for leveling to the print area. That way you have an accurate bed leveling without as much hassle.
I printed a temp tower beforehand and can only recommend it if you are using new filament. My optimal temperature is 230°C
Installation:
• remove the old holder (there was adhesive on the inside, just pry it open, as seen on the last image) • slide the new one in • glue/screw the panel back on

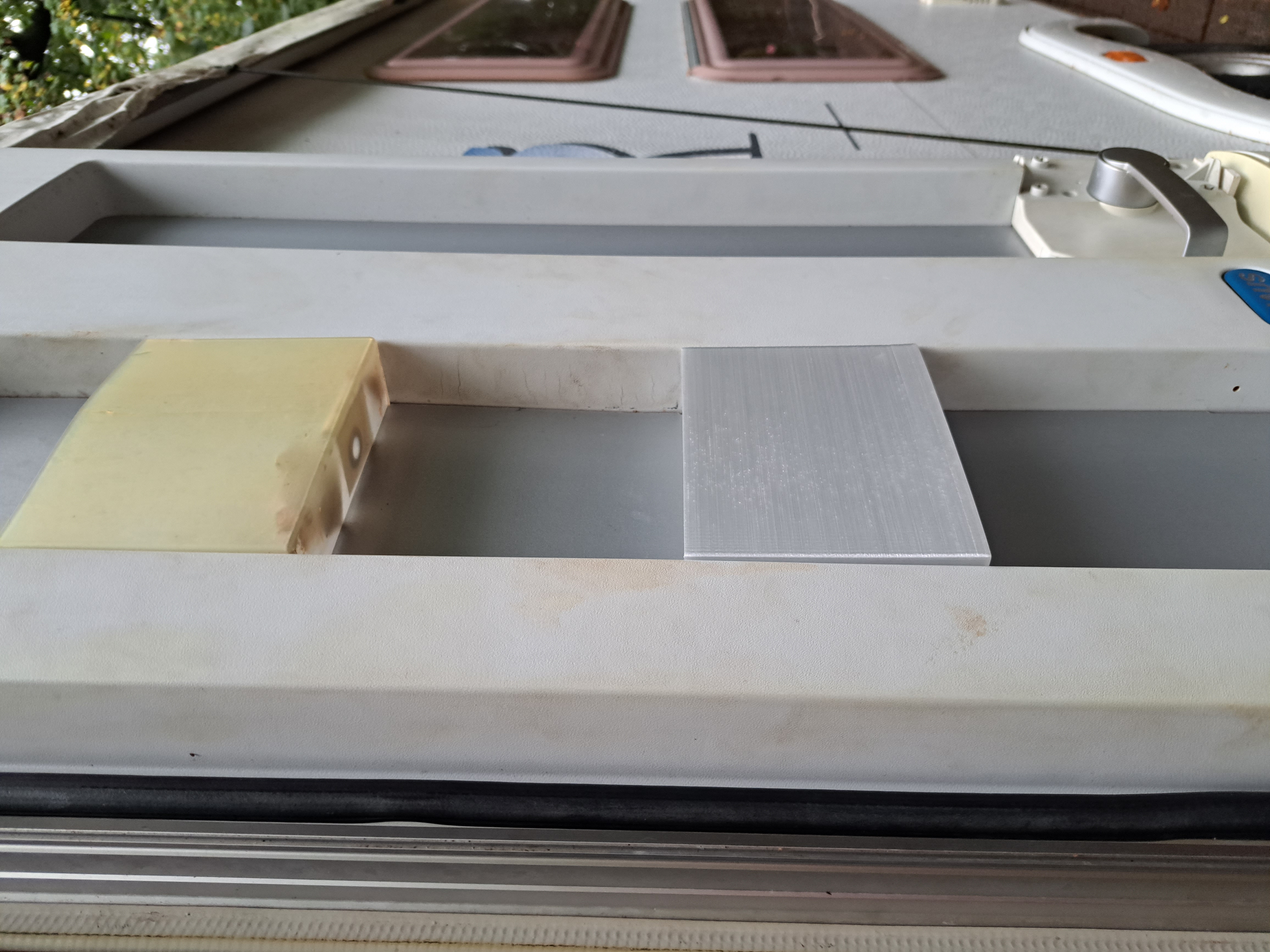

It for sure looks a lot better!
The other two are getting replaced too
Printed on Kingroon KP5L with Klipper/Mainsail
0.2mm at 60mm/s
Design and description by tippfehlr , licensed CC-BY-SA.
More 3D printed camping and caravan gearMore 3D printed door stops and wedges
Frequently asked
How long does shipping take?
Caravan door holder replacement is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
