Clamp
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~33 g
- Print time
- ~1.8 h
- Express shipping
- $20
More information
Printing

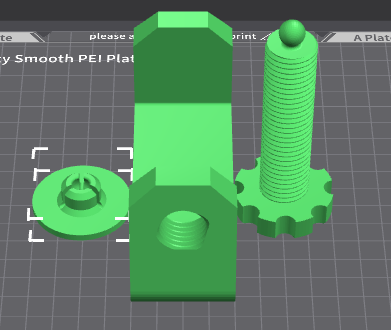

I printed my holder at 0.2mm layer height, with 25% gyroid infill
Printable without supports
Assembly
Thread the screw through the clamp body, and snap on the screw cap to the end of the screw (ball joint connection).
Usage
Before first use I recommend winding the thread all the way in and out once to clean up the threads. They should be tight but not binding, you may want to use an exclusive slicing tolerance if you have an issue here, but mine didn't require it. Adding a dab of silicone grease will make the whole assembly a bit smoother.
To attach the cap either press hard with your fingers, or wind the clamp screw all the way against the cap until it press fits in.
Being plastic there is a limit to the clamp's strength, with the primary failure mechanism being flexing of the body. Consequently just stop tightening when you see the body begin to flex visibly, and this way you won't snap anything.
Link to Filament Spool Holder

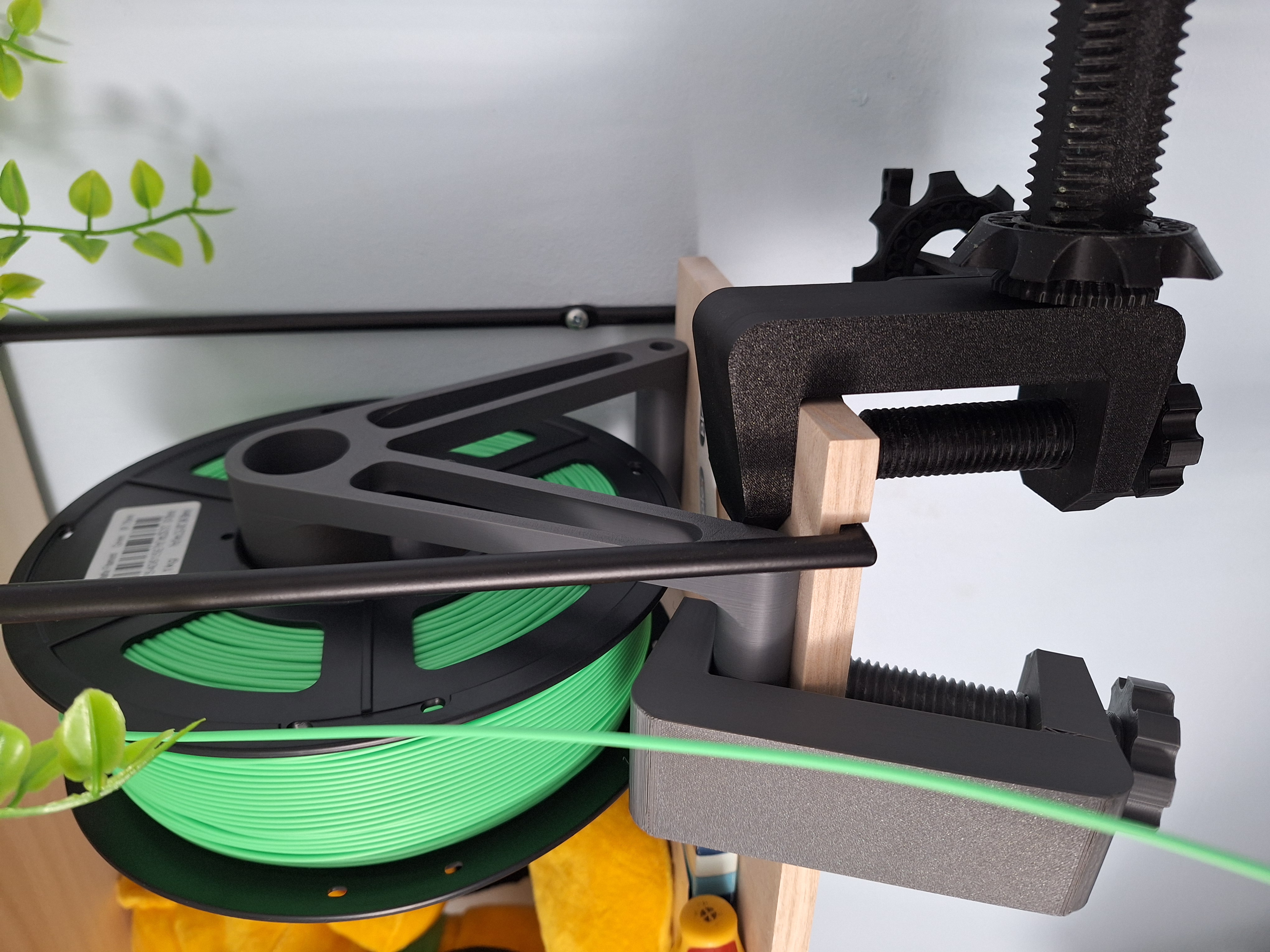

Here is the link to the Filament Spool Holder in the photo.
https://www.printables.com/model/203330-filament-spool-holder
Design and description by Wouter AB , licensed CC-BY.
Frequently asked
How long does shipping take?
Clamp is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
