Clampy Clamp v1
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~17 g
- Express shipping
- $20
More information

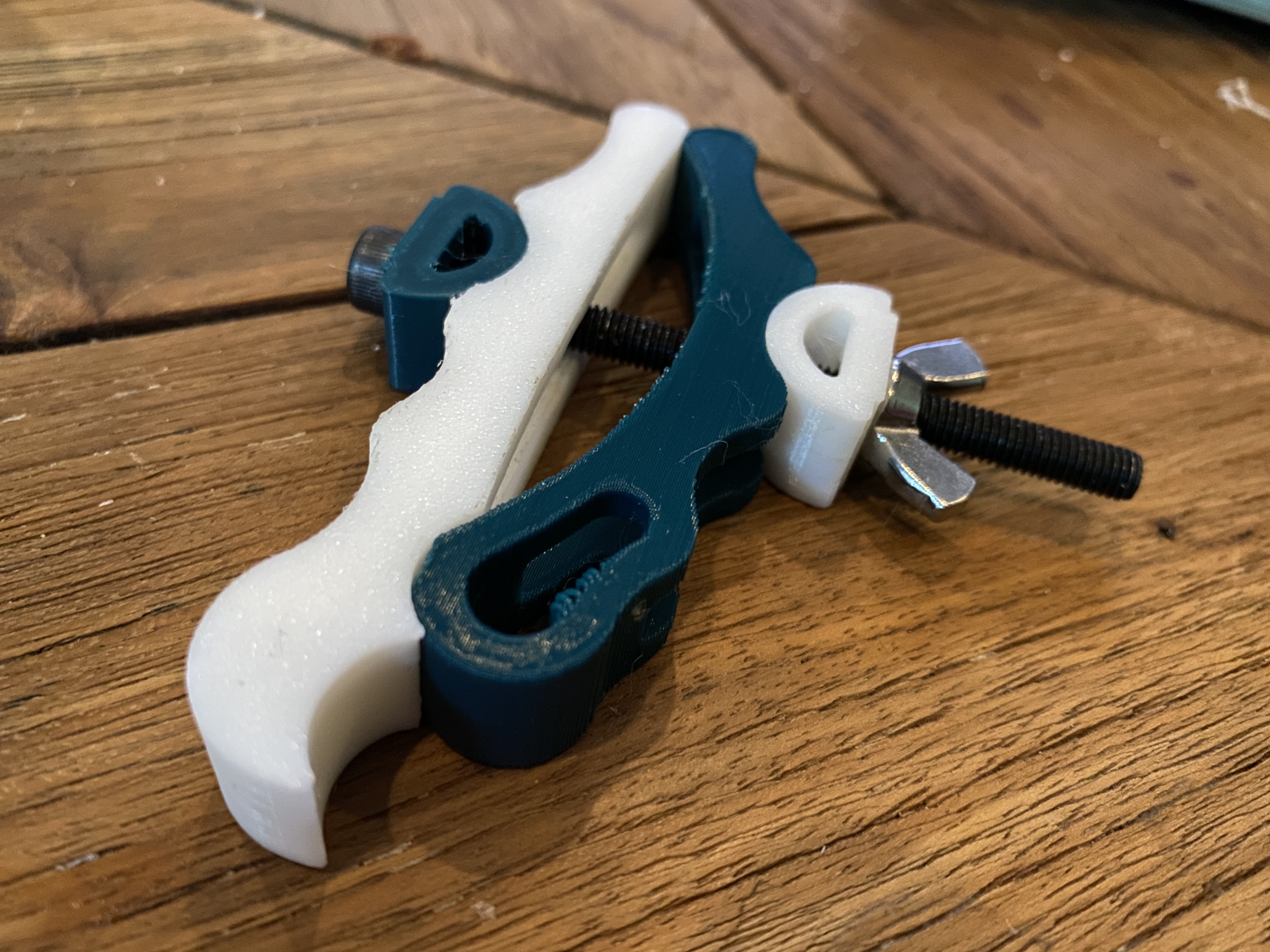

A low-profile 3d printed clamp that's quite versatile as far as positioning. For each clamp, print:
1x curved-clamp.stl 1x flat-clamp.stl 2x pivoting-clamp-toggle.stl
You'll also need 1x M5 socket head cap bolt (I use 80mm, but larger ones will allow you to clamp larger items at the expense of clamp profile size), and 1x M5 wingnut per clamp:
80mm bolts: https://www.amazon.com/gp/product/B08VD4VVSY/ref=ppx_yo_dt_b_asin_title_o04_s00?ie=UTF8&psc=1 wingnuts: https://www.amazon.com/gp/product/B07QG87ZN3/ref=ppx_yo_dt_b_asin_title_o03_s00?ie=UTF8&psc=1
I recommend to print as they are already laid out on the bed with supports on flat and curved clamp. This will result in a stronger part.
I also recommend printing out of PETG, ASA, or ABS due to the impact absorption properties on those filaments.
Happy clamping!
Design and description by dePrintinator , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Clampy Clamp v1 is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
