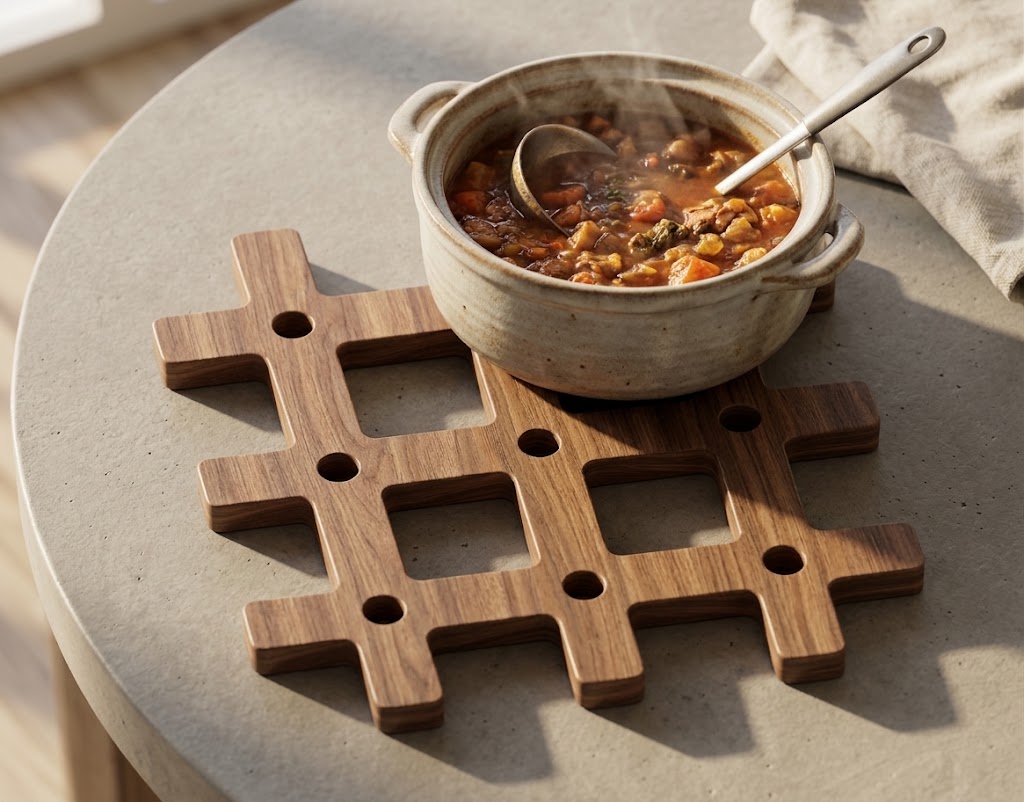

CNC Wood Kitchen Hot Dish Holder Laser Cut CNC

Protect your table and kitchen surfaces with this stylish CNC-cut wooden trivet designed for hot pots, pans, bowls, and serving dishes.

The interlocking grid design provides a stable support surface while the open structure adds a modern decorative touch. The design is suitable for CNC routing, laser cutting, and woodworking, making it easy to manufacture from materials such as wood, plywood, MDF, and other sheet materials.

FOR MORE CNC AND LASER CUTTING CHECK MY CGTRADER AND CULTS3D PROFILE https://www.cgtrader.com/souhaibboukra https://cults3d.com/en/users/souhaibboukra/3d-models

Features

CNC and laser-cut friendly design

Designed for hot pots, pans, bowls, and dishes

Decorative geometric appearance

Stable support for cookware

Suitable for wood, plywood, MDF, and similar materials

Easy to manufacture and reproduce

Ideal for home kitchens, restaurants, cafés, and handmade products

Great project for CNC and laser-cutting enthusiasts

Manufacturing: CNC Router / Laser Cutting

Recommended materials: Hardwood, plywood, MDF, bamboo, acrylic, etc.

Manufacturing Settings — CNC Wooden Trivet

Recommended materials: Hardwood, plywood, MDF, bamboo

Recommended thickness: 10–12 mm

CNC Router Settings

Parameter Recommended setting Material Wood / Plywood / MDF Thickness10–12 mm End mill 3 mm or 4 mm flat end mill Spindle speed 16,000–20,000 RPM Feed rate 1,500–2,500 mm/min Plunge rate500–800 mm/min

Step-down 2–3 mm/pass

Stepover 40–50%

Cutting strategy Inside cuts first, outside profile last

Tabs 3–4 tabs if needed

Tab size 3–5 mm wide × 2–3 mm high

Finishing pass 0.2–0.5 mm

Clearance Leave at least 3 mm between toolpath and clamps

Recommended Toolpath Order

Pocket / internal cutouts

Small holes

Internal profiles

Outer contour

Finishing pass

Remove tabs and sand edges

Laser Cutting Settings

Settings depend heavily on the laser power and material thickness.

For 10 mm plywood/MDF:

Use multiple passes rather than excessive power in a single pass.

Perform test cuts on scrap material first.

Keep the workpiece flat and properly focused.

Use air assist to reduce burning.

Clean the cut edges after machining.

Finishing

After cutting:

Remove tabs.

Sand with 180 → 240 → 320 grit.

Slightly break sharp edges.

Remove dust.

Apply food-safe mineral oil or suitable food-contact wood finish if the product will contact cookware/food-serving surfaces.

Important: Actual RPM, feed rate, power, and number of passes should be adjusted according to your CNC spindle/router, laser wattage, cutter diameter, material type, and material thickness. Always make a small test cut before production.

Design and description by souhaib boukra , licensed CC0.
