Coleman Cooler Hinge
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~21 g
- Print time
- ~1.2 h
- Express shipping
- $20
More information

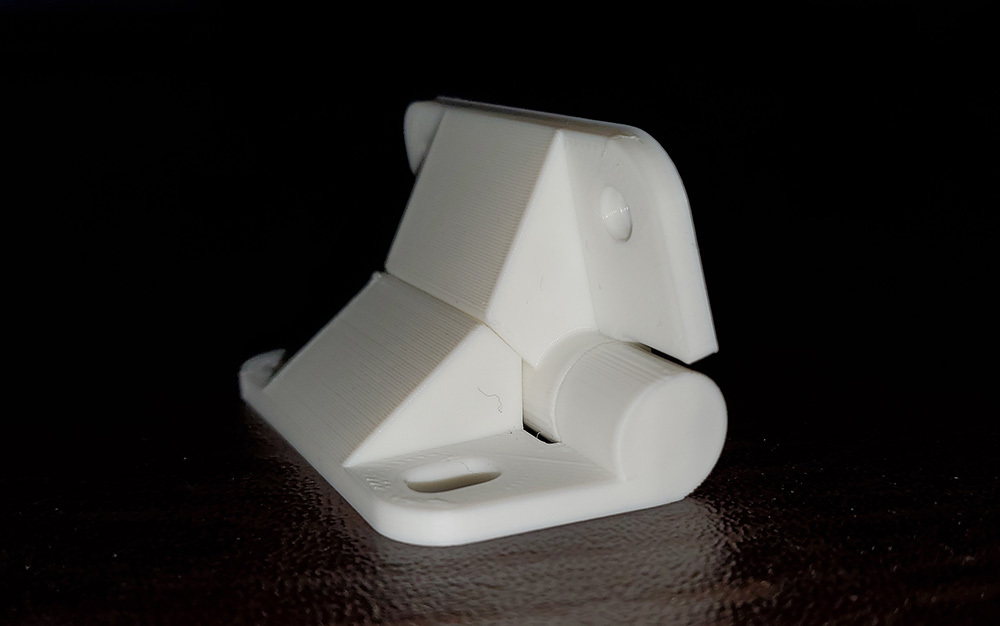

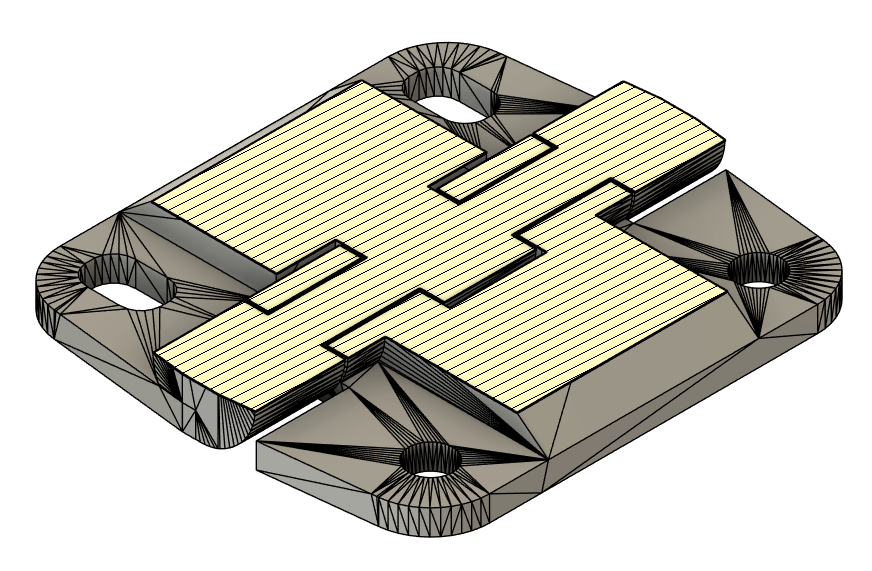

This is a print-in-place hinge for Coleman coolers. The “PIN” version is designed to have the same opening stops that the original hinge and the “CONE” version stops at 90 degrees to reduce the stress on the screws holding the hinges on. There is also a version of the hinge without the "stop" that the original manufacturer's hinge has that may be useful for a different purpose.

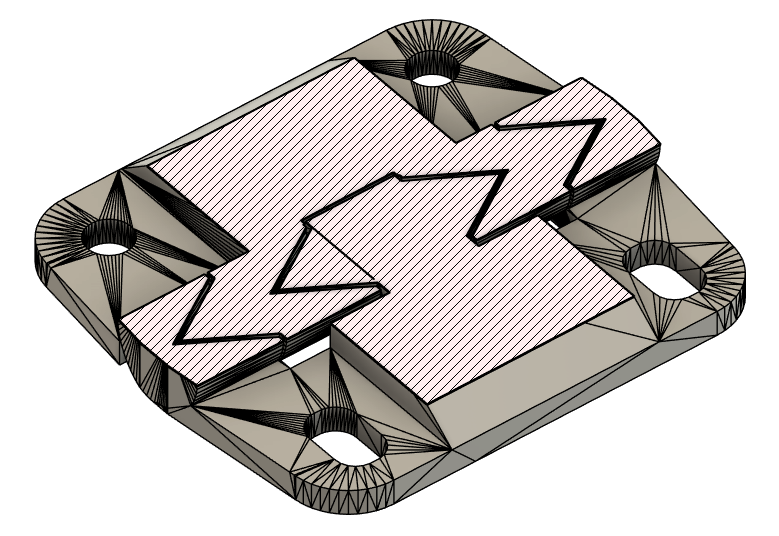

The CONE version of the hinge with a 90 degree stop was designed because I have a very large cooler with a heavy lid that if allowed to pass 90 degrees will pull the screws holding the hinges on out of the cooler. The CONE version is just as strong as the PIN version and is less likely to seize when printed.
Print settings that I used were:
Layer Height: .2 or finer
Walls: 6
Infill: 75%
Material: PETG or ABS is recommended for best results, however I have used PLA with acceptable results.
If either hinge does seize when printed, reduce the layer height to increase the tolerance.
(Updated with CONE version of the hinge on Sep. 30, 2025)
Design and description by Barry Willick , licensed CC-BY.
Frequently asked
How long does shipping take?
Coleman Cooler Hinge is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
