Compact F-Clamp Holder for Regular and Small Clamps
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- PLA (filament)
- Colour
- Grey
- Weight
- ~186 g
- Express shipping
- $20
More information

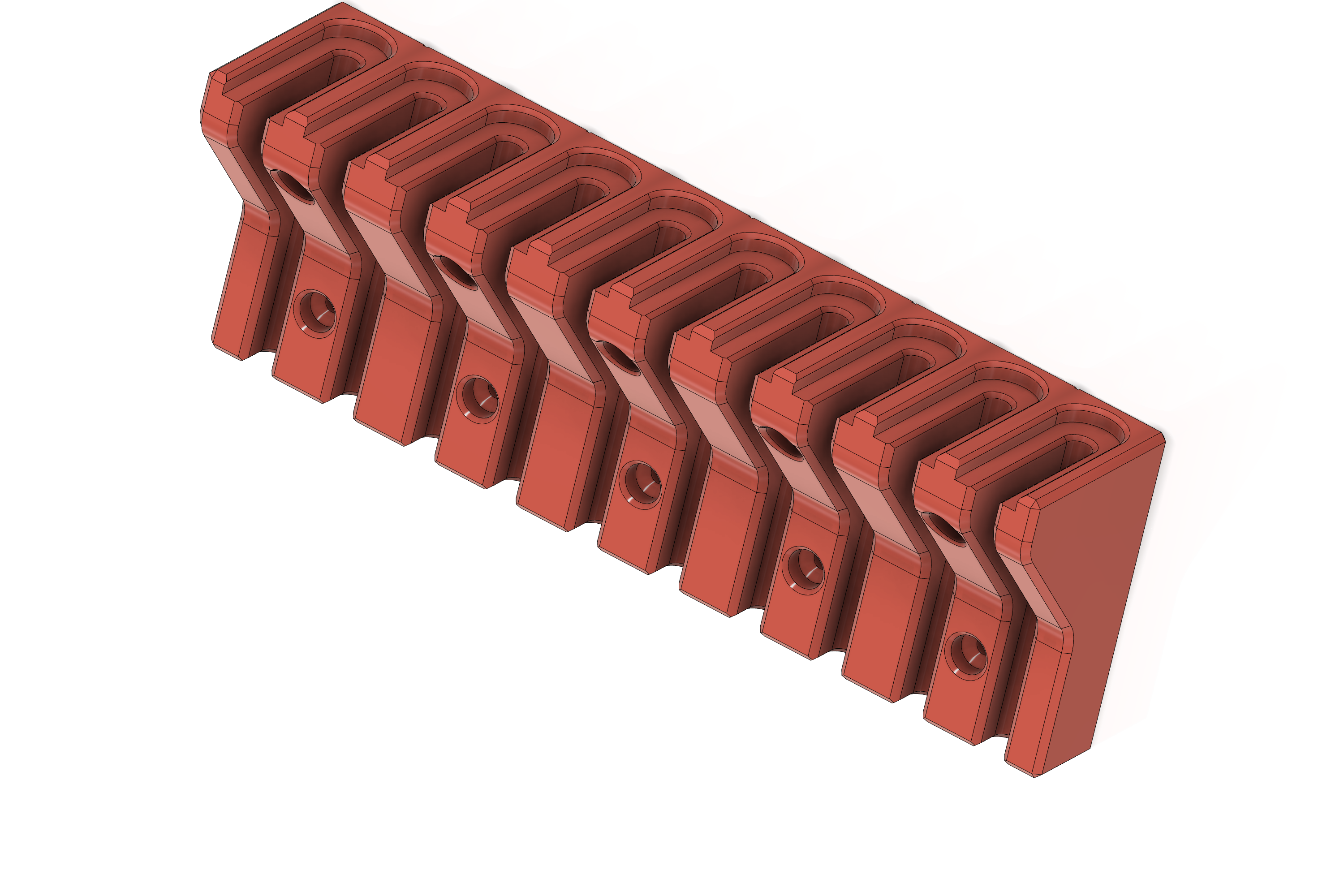

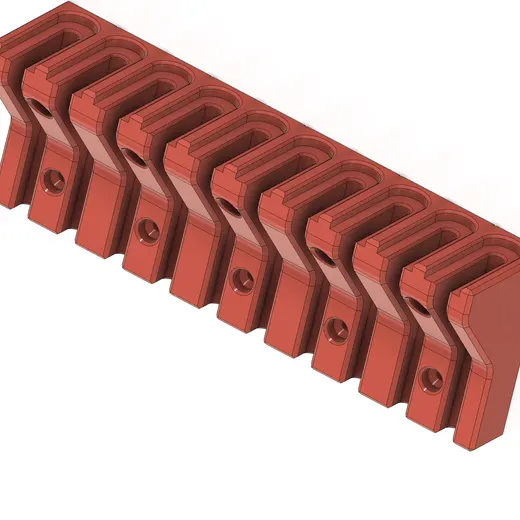

I designed this f-clamp holder to store my clamps in the most compact way on the wall. This is the smaller version of LR2218, for regular and small clamps.
How to Print this Clamp Holder
There is a Prusa Slicer example project ending in “Print”, where I configured all my recommended settings. The object is printed on its back.
Check out my recommendations in the table below:
Nozzle Size:0.4mm
Layer Height:0.2mm
Filament Materials:PETG or PLA
Perimeters:Three perimeters for extra toughness
Infill:15%
Prusa Slicer Profile:“0.2mm Quality”
Dimensions

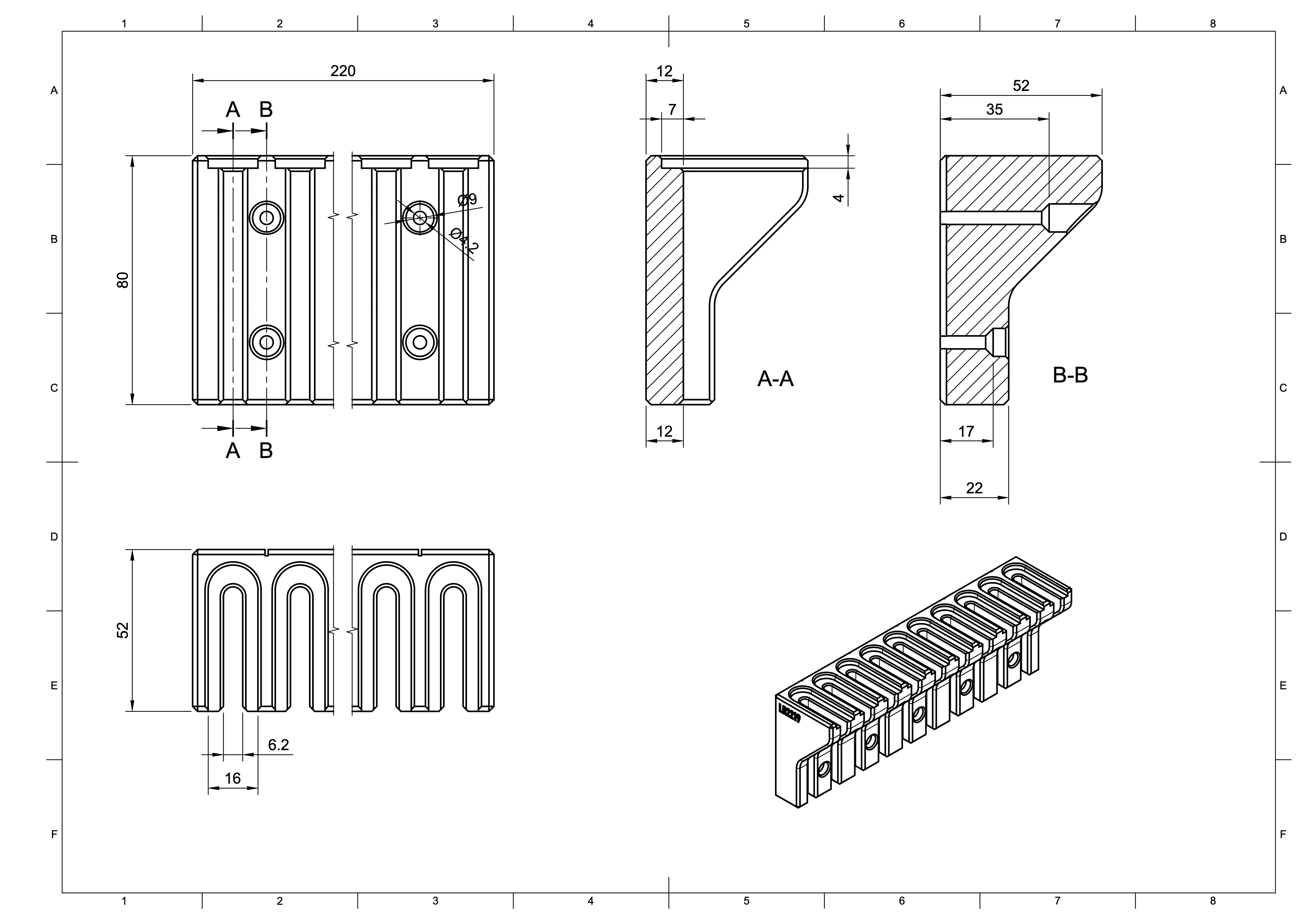

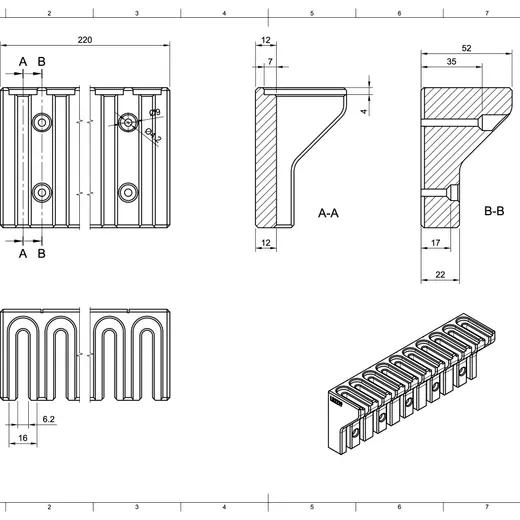

You find all dimensions in the drawing above. The holder will work up to a bar width of 6mm and a head width up to 16mm. The holder is designed for regular and small clamps. The head of the clamp should not be longer than 16cm, otherwise, it will not be kept securely in the holder.
Montage
Use 4mm countersunk wood screws to fasten the holder on any wall. Ideally, put a screw in every prepared screw hole to equally balance the forces and avoid bending of the part.
⚠ Tighten the screws carefully by hand! ⚠
About the Fusion360 Design
The Fusion360 design lets you easily adjust the dimensions of the slots and the total size of the holder. The design does automatically adjust the number of slots, to make the best use of the width. Only adjust parameters in the favourites section.
As Fusion360 has numerous problems, especially with fully parametric designs, I only recommend adjusting the design in Fusion360 if you are an experienced user of this software.
Variants
• LR2218 Solid and Compact F-Clamp Holder for Long and Heavy Clamps • LR2219 Compact F-Clamp Holder for Regular and Small Clamps
Explore More from Meti·kumi
Interested in my designs? Browse through my collection of 3D models:
👉 https://metikumi.com/3d-models/
Stay connected on social media for the latest updates and work-in-progress insights:
👉 https://metikumi.com
Conclusion
This print will allow you to store more clamps in a smaller space, now you can own even more clamps. Please rate and upload photos of your prints if you like this model, and let me know if you run into problems or have ideas on improving these models.
Happy printing!
Design and description by Metikumi , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Compact F-Clamp Holder for Regular and Small Clamps is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in PLA (filament) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
