Contour Tool
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~10 g
- Express shipping
- $20
More information

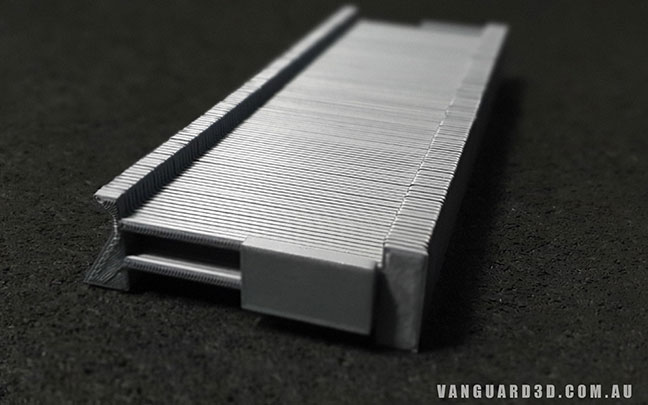

Contour tool
This contour gauge duplicator tool is a necessity when measuring and stenciling irregular shapes and corners during the construction process of any object or structure. It will conform to both square and round shapes, and trace shapes exactly for precise marking or 3D model building.
I created this Contour tool to be 3D printed economically, to save filament. There are two options:
#1 To print it only using Filament however the risk of breaking it accidentally is there.
#2 Print it with the option of inserting a metal plate (highly recommended) it will make this Contour Tool stronger.
135 -136 sliders You will need 135 to 136 pieces to complete the contour tool.
The Print Files:

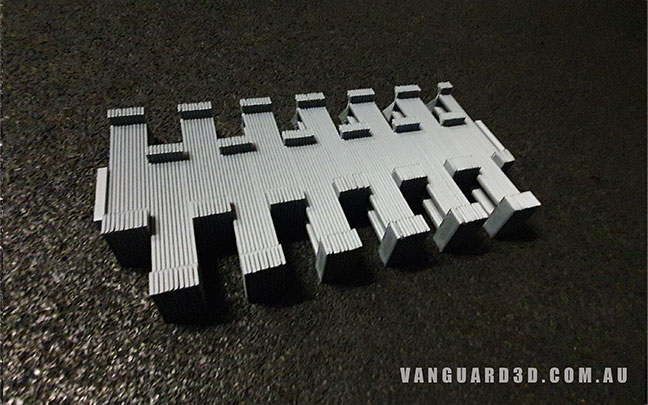

Plates - These are the main plates and you only need to print approx 136-137
Body with Hole Contour Gauge - This version of the body has a slot so you can insert a metal insert to make the part stronger.
Body Female/male Contour Gauge - this is to print the part completely with 3D Filament. You might have to do some sanding on the insert and use glue to hold it together.

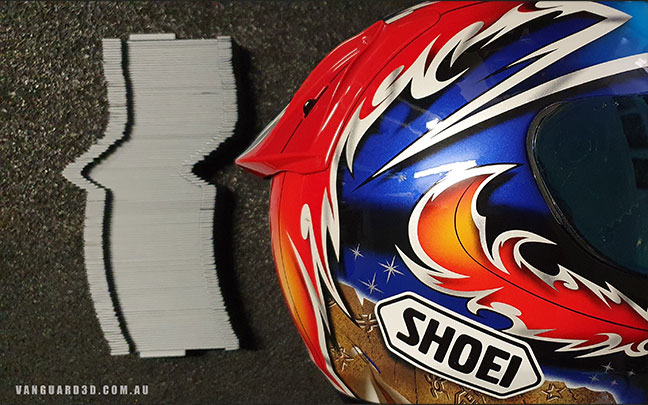

[PRECISE SHAPE DUPLICATION]: The Contour Gauge is designed for winding pipes, circular frames, ducts and many objects, Ideal for fitting tiles, laminate, carpet, checking dimensions, molding, etc.A useful tool for operations on car bodies, carpentry and for all kinds of modeling.
MATERIAL SUITABLE: The contour gauge can be made of high-quality ABS plastic, PETG, PLA, ASA and many more.
Design and description by Revolvar , licensed CC0.
Frequently asked
How long does shipping take?
Contour Tool is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
