CoreOne Door Cone Improves Frame Stiffness
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~11 g
- Express shipping
- $20
More information

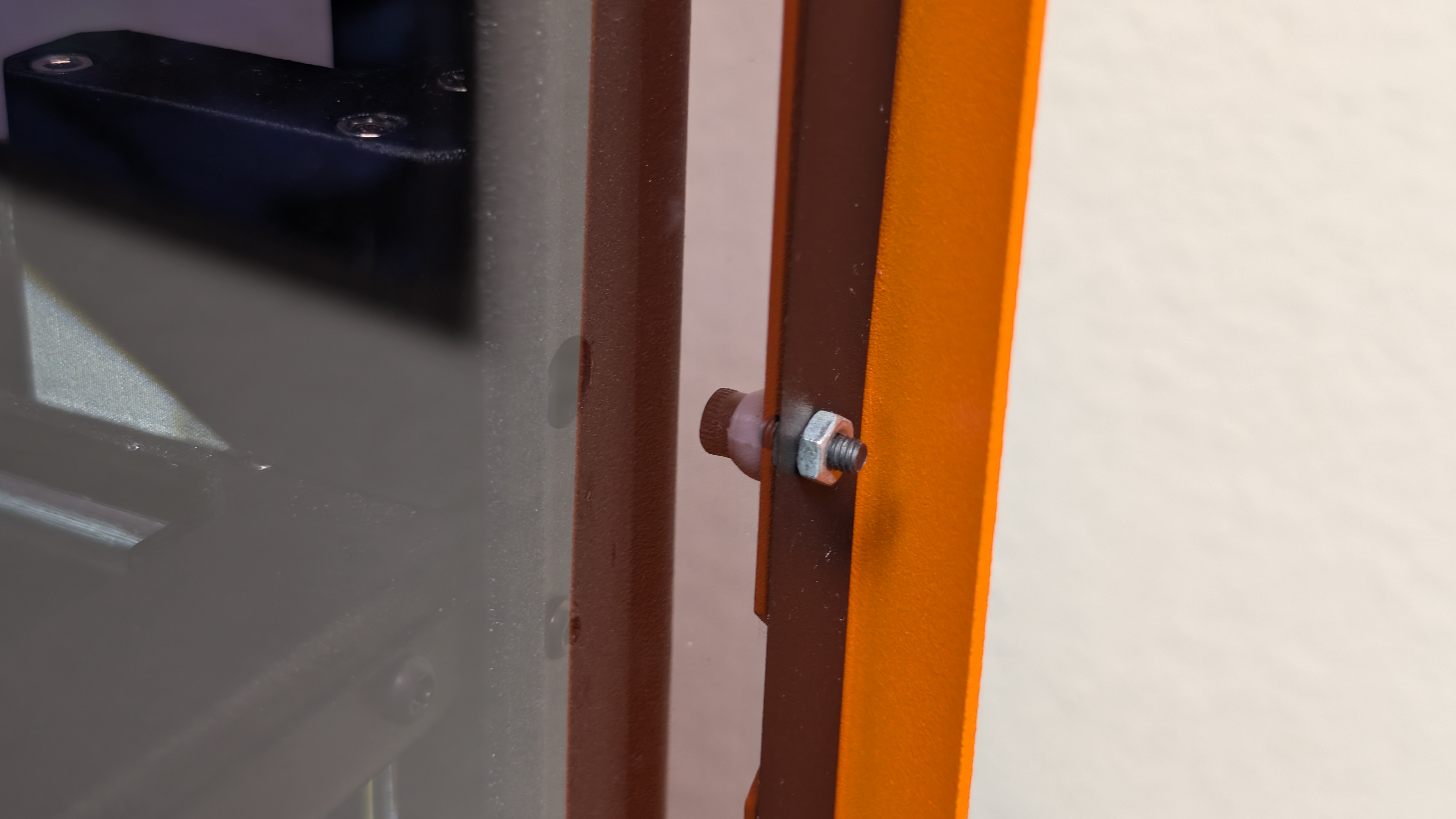

This cone part creates a tight fit between the door and the frame when you close the door. This improves overall frame stiffness since the door then acts as a shear panel across the front of the machine, where there is no diagonal support.
Bonus: the hardware rigidly mounts the door handle to the door panel, instead of relying on adhesive.

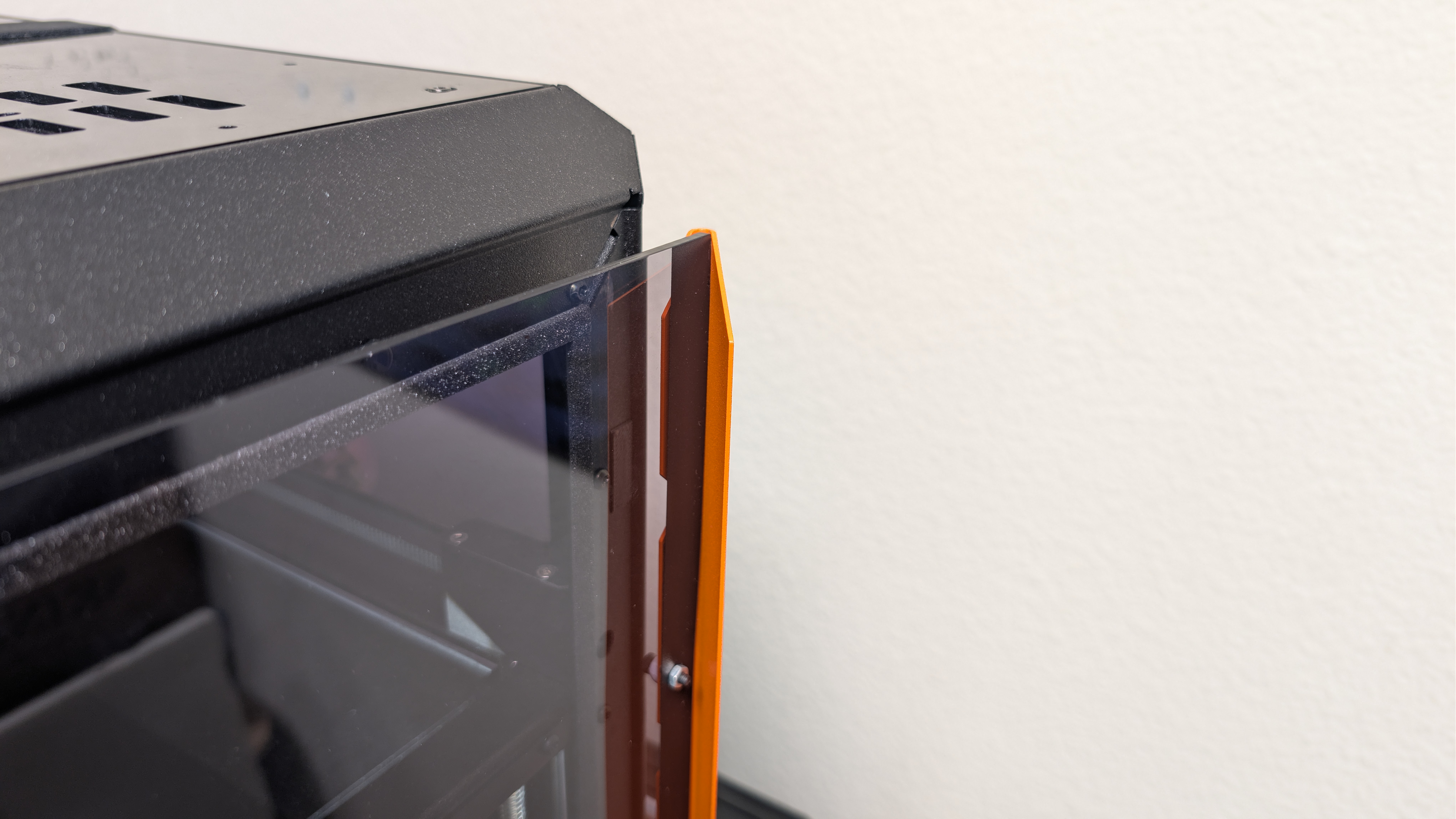

Install two of these, one in the top and one in the bottom hole.
Required hardware: 2x M3 Socket Head Cap Screw 10-12mm long 2x M3 Hex nut
Print with 100% infill, works fine with PLA. I'm now using a PCCF version.
NOTE: Double check the part OD and mating hole ID before installation. A close slip fit is ideal. Mine was 7.8mm
Design and description by KeepCalmAndDrawItAgain , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
CoreOne Door Cone Improves Frame Stiffness is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
