Cuisinart SM-50 worm gear replacement part
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~16 g
- Express shipping
- $20
More information

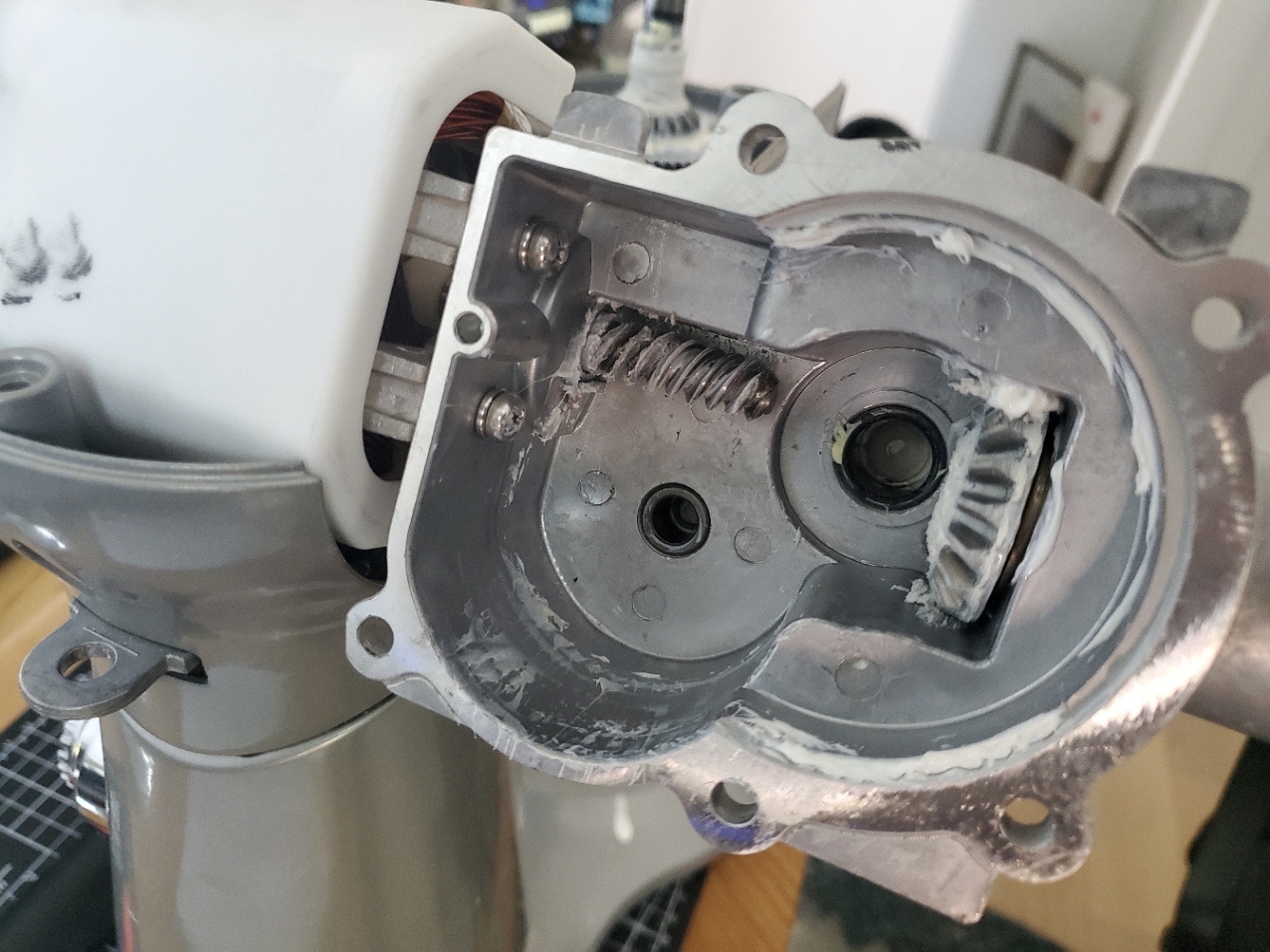

I have a Cuisinart SM-50 stand mixer and it stopped working properly after a few years. It felt like a “clutch” with the mixing part not spinning while the engine was speeding up.

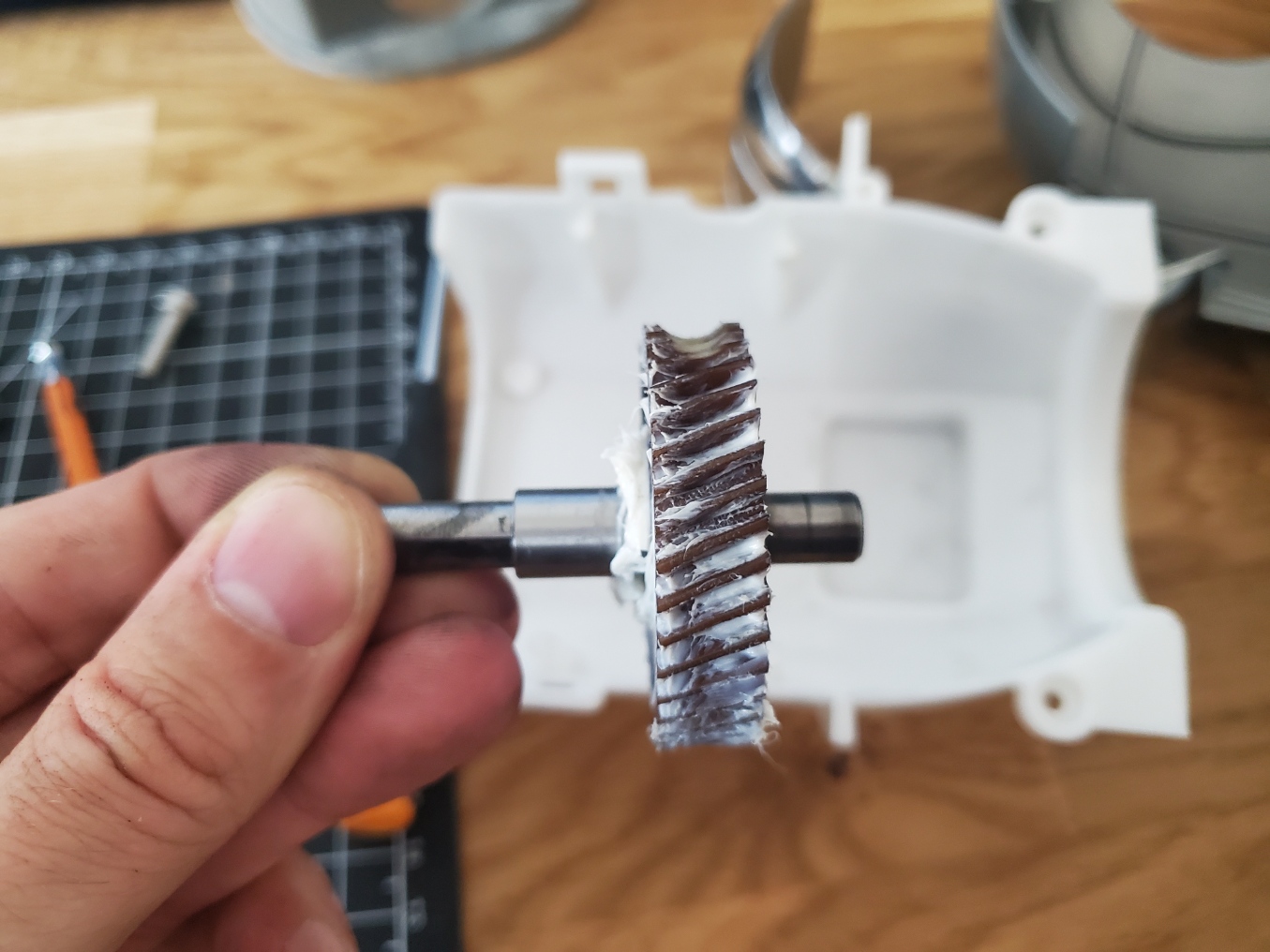

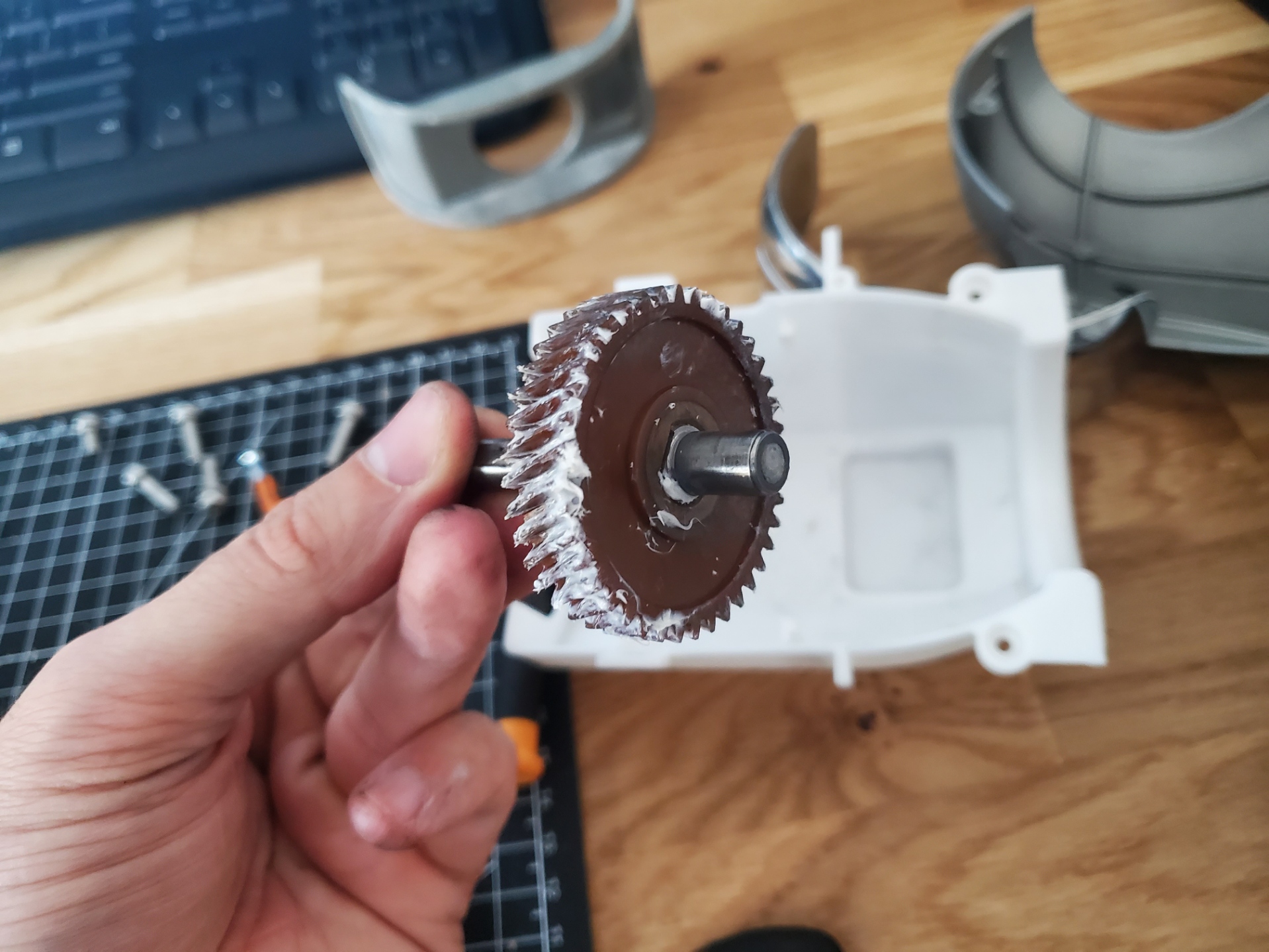

One gear in the main gear train is made of plastic/resin instead of metal. I could not find any schematics or replacement part online for this model. Some might say it's on purpose so you have to bring it to a Cuisinart specialist…
Anyway, I managed to isolate the specific issue, and modelled this replacement part. I printed it in PETG with 100% infill, and the mixer works perfectly now. I'm uploading this part so it could be useful if you want to save some money.
Print parameters
• PETG recommended • 100% infill recommended • 0.28mm layer height
Files
• The raw file is a perfect fit, with no tolerances. You might have some issues depending on your print • The 0.2mm offset is the one I used for the fix and it worked perfectly in my case
Design and description by Julien , licensed CC0.
Frequently asked
How long does shipping take?
Cuisinart SM-50 worm gear replacement part is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
