Custom Tool Stand Remix

UPDATE: Added the tool stand I made as shown in some of the pictures. I included the STL & 3MF files. If you open the 3MF in Microsoft 3D builder you can see all the parts and how they are laid out. If you want, you can use this as a starting point to design your own. Enjoy!

I liked the original tool stand, but, it did not have enough spots for my my tools and most of the spots were not the size I needed. So I saw some of the remixes but still wanted more. I decided to do a remix of the original and two remix's

https://www.thingiverse.com/thing:1937236 https://www.thingiverse.com/thing:3111832 https://www.thingiverse.com/thing:4290274

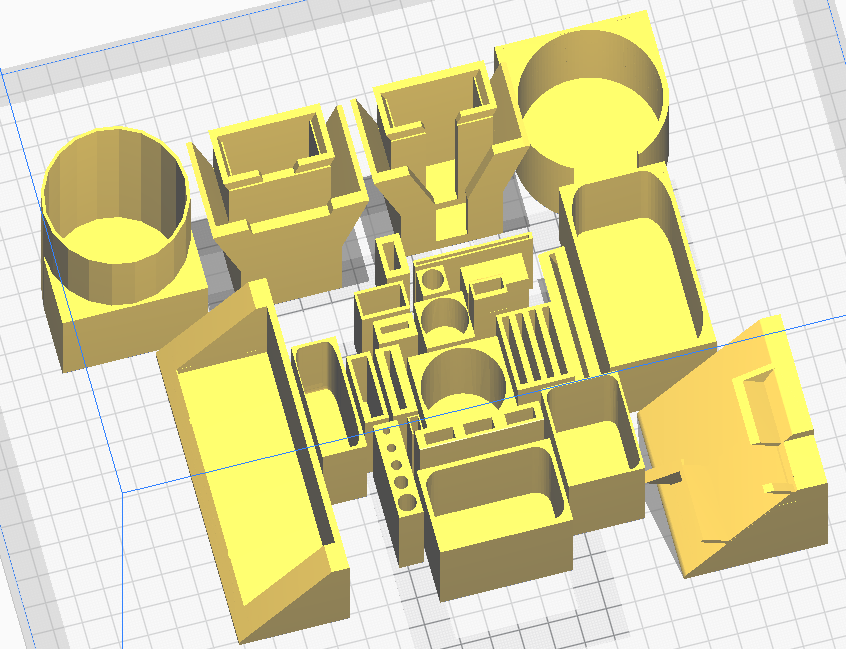

Using MS 3D Builder I cut them up to separate parts.

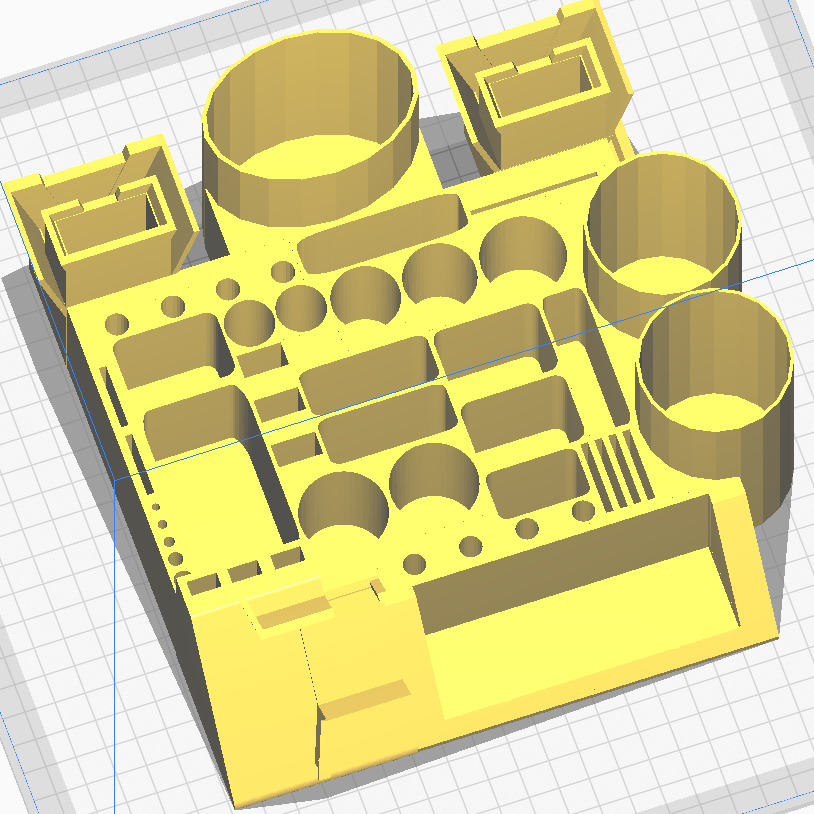

I then took a look at what I needed, measured out a few spots and then back in MS 3D Builder put it all togheter.

It took some time to get everything to the same height and match everything up. When I was done and I had a STL file, I Then opened the STL in MS 3D Builder and it showed errors, so I let the tool fix it.

One piece I added is called ToolStand_SpacerBlock.stl, this is to fill the gaps and resize as needed.

Then as a test to ensure that I had all the sections the right size, I cut a 3 layer portion in MS3D and printed that

After that made some minor adjustments I printed it. I had to do this on my larger Twotrees Tornado v2 with the 300x300 bed. Cura showed 2 days, 8 hours, 12 minutes and 414g

![alt text](

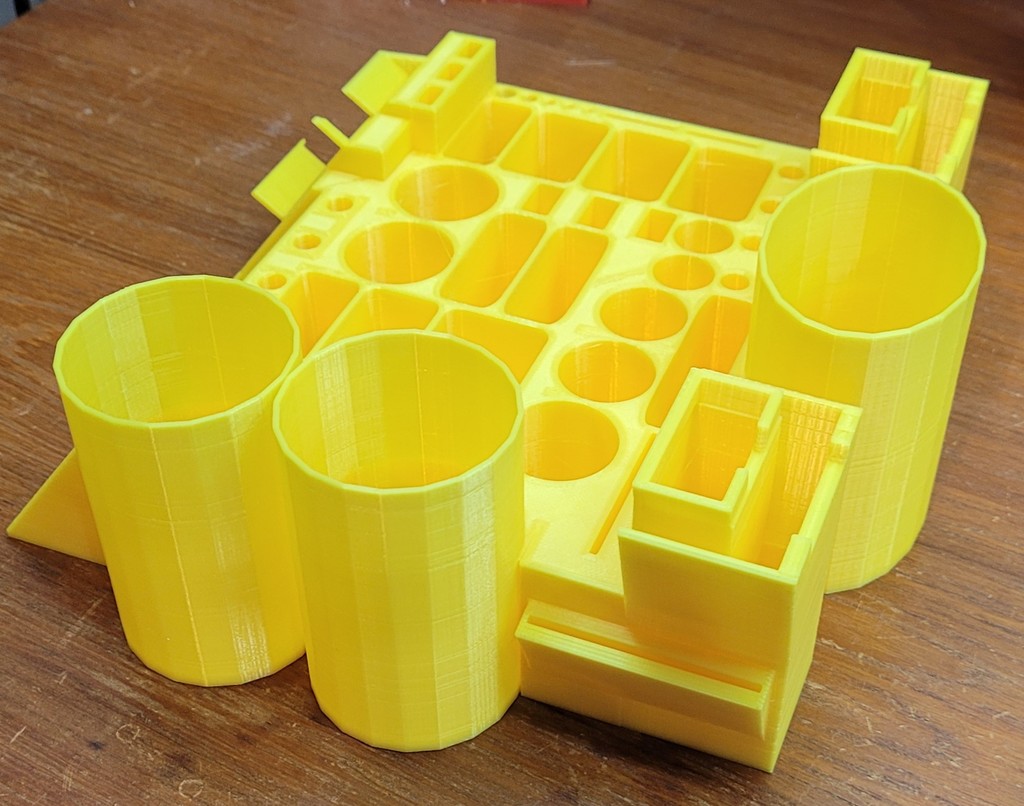

Quite happy with the results, there are some changes I would have liked to make, but very happy with the results.

Print Settings

Printer:

Twotrees Tornado V2

Rafts: No

Supports:

No

Resolution: 0.2

Infill:

10%

Filament:

ERYONE PLA Yellow

Category: Hobby
