DeLonghi KG89 Tray

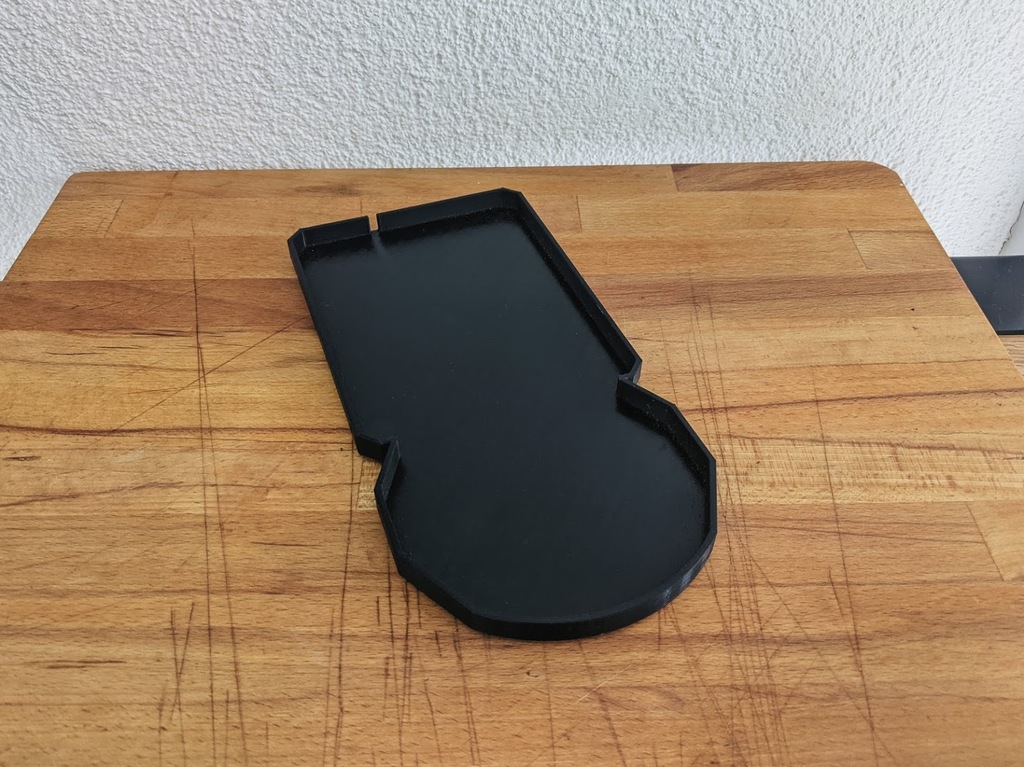

This is a tray for the DeLonghi KG89 coffee grinder. The KG89 is a very messy grinder and each time you pull out or insert the container for the ground coffee it'll spill some coffee grounds all over your kitchen counter.

This tray will catch that powder so you can just empty it once a week/month and keep your kitchen counter clean. Or vacuum it.

If you have some spare non-slip rubber pads around, you can stick those to the bottom of the tray to prevent it from moving.

You can remix this using the STEP file in the downloads section or you can directly edit it in Onshape.

Features

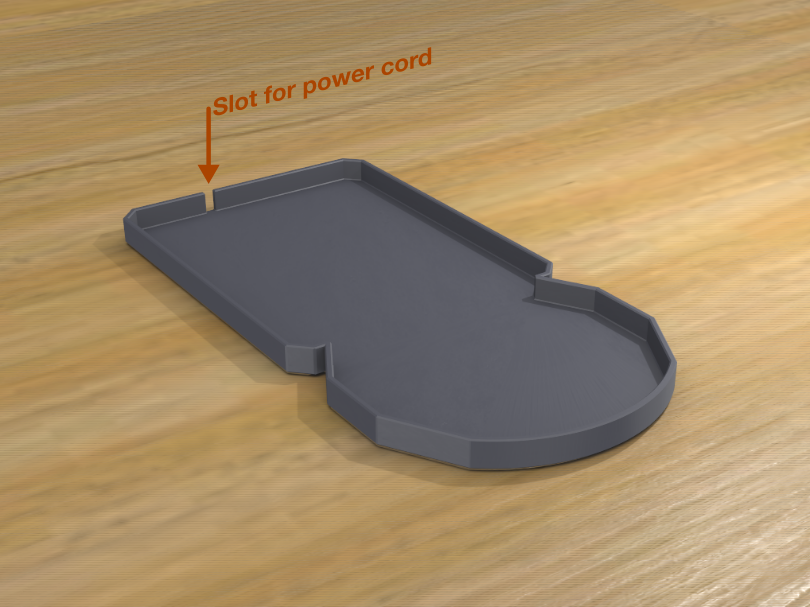

• Designed so that the grinder doesn't slide around inside the tray • Slot for the power cord • "Front yard" big enough to remove and insert the container comfortably

Printing

• Material: PLA, PETG, anything rigid really • Layer height: 0.2 or 0.1mm • Nozzle: 0.4 or 0.6mm • Perimeters: 2 • Infill: 10%

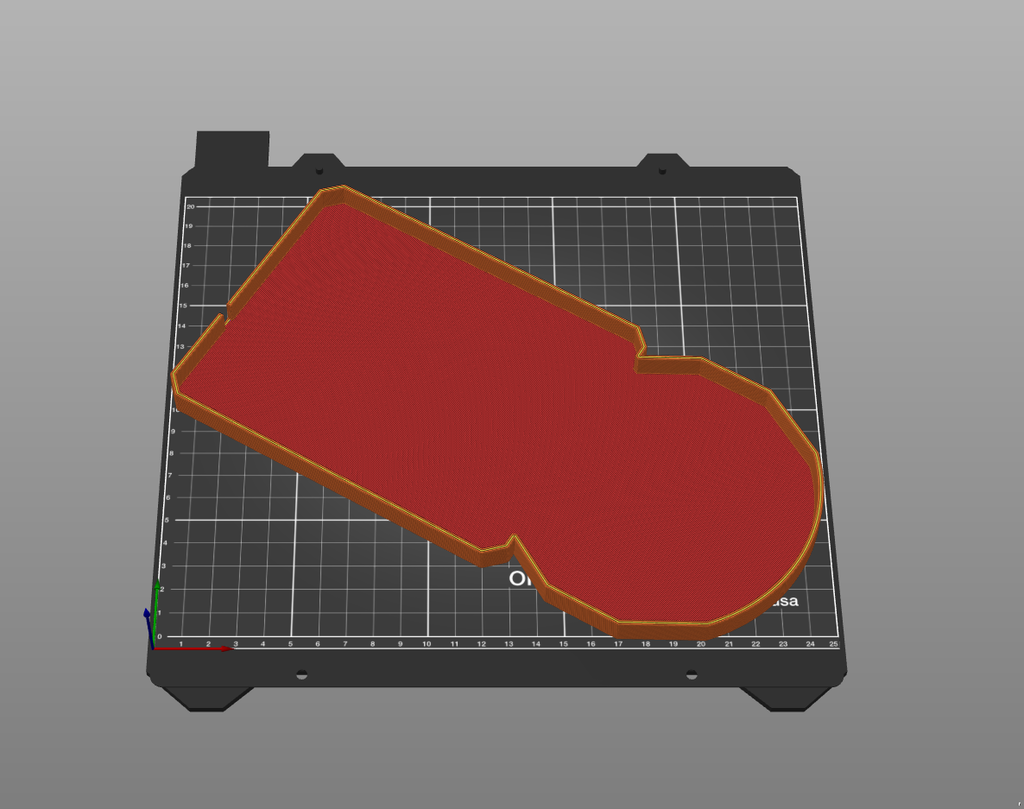

This is a rather large print. It comfortably fits on a 300x300mm bed and by rotating it you can just about fit it on a Prusa MK3. To fit it on an Ender 3 you would have to modify the firmware and increase the print area to 230mm.

For smaller beds you can try to split it in half in the slicer and then glue the parts together.

Design and description by 6d6178 , licensed CC-BY-SA.
