Desk Cable Port with Sliding Door
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~27 g
- Print time
- ~1.5 h
- Express shipping
- $20
More information

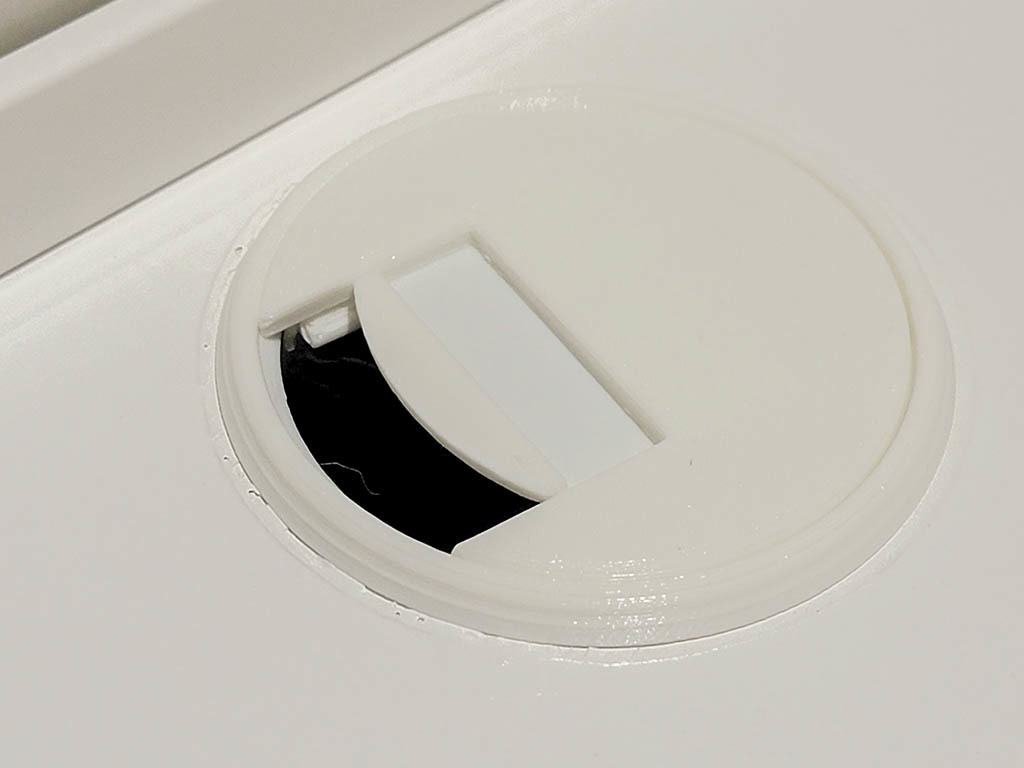

A 2.5" cable port with removable lid which itself contains a sliding door allowing multiple configurations and adjustability.
I had a four of these in some built-in-cabinets that had not aged well, were missing their lids, had yellowed etc. So decided to design a more flexible replacement with a sliding door that can be closed, varying degrees of open, removed, or the entire cover removed as needed to facilitate different cable configurations.
Of course you can color-match to your furniture too, white/grey/black/wood-filament etc.

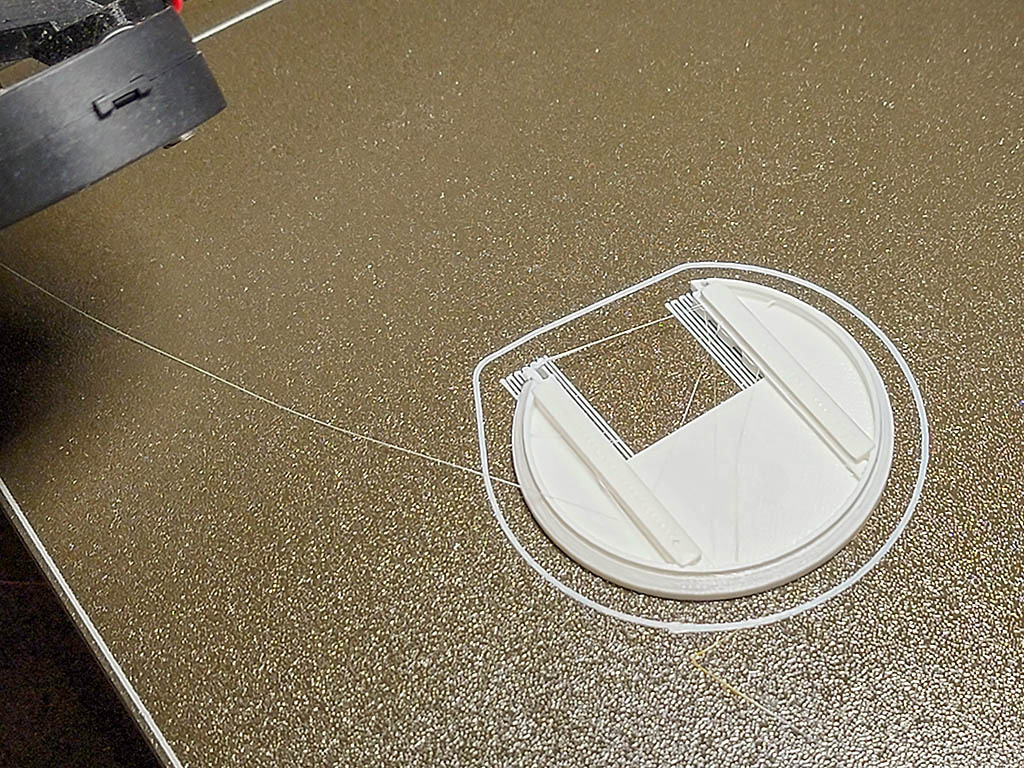

Supports are needed for the rails on the lid that the sliding door uses, but they don't exist for many layers. Remove them by running a smallish sharp flathead screwdriver up and down the rail slots until the door moves relatively freely.
OpenSCAD file included in case you have/want/use holes of different dimensions.
Print Settings
Printer Brand:
Prusa
Printer: i3 MK2.5
Rafts:
No
Supports: Yes
Resolution:
200
Infill: None
Filament: Hatchbox PLA White
Category: DIY
Design and description by TheRedcoat , licensed CC-BY.
Frequently asked
How long does shipping take?
Desk Cable Port with Sliding Door is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
