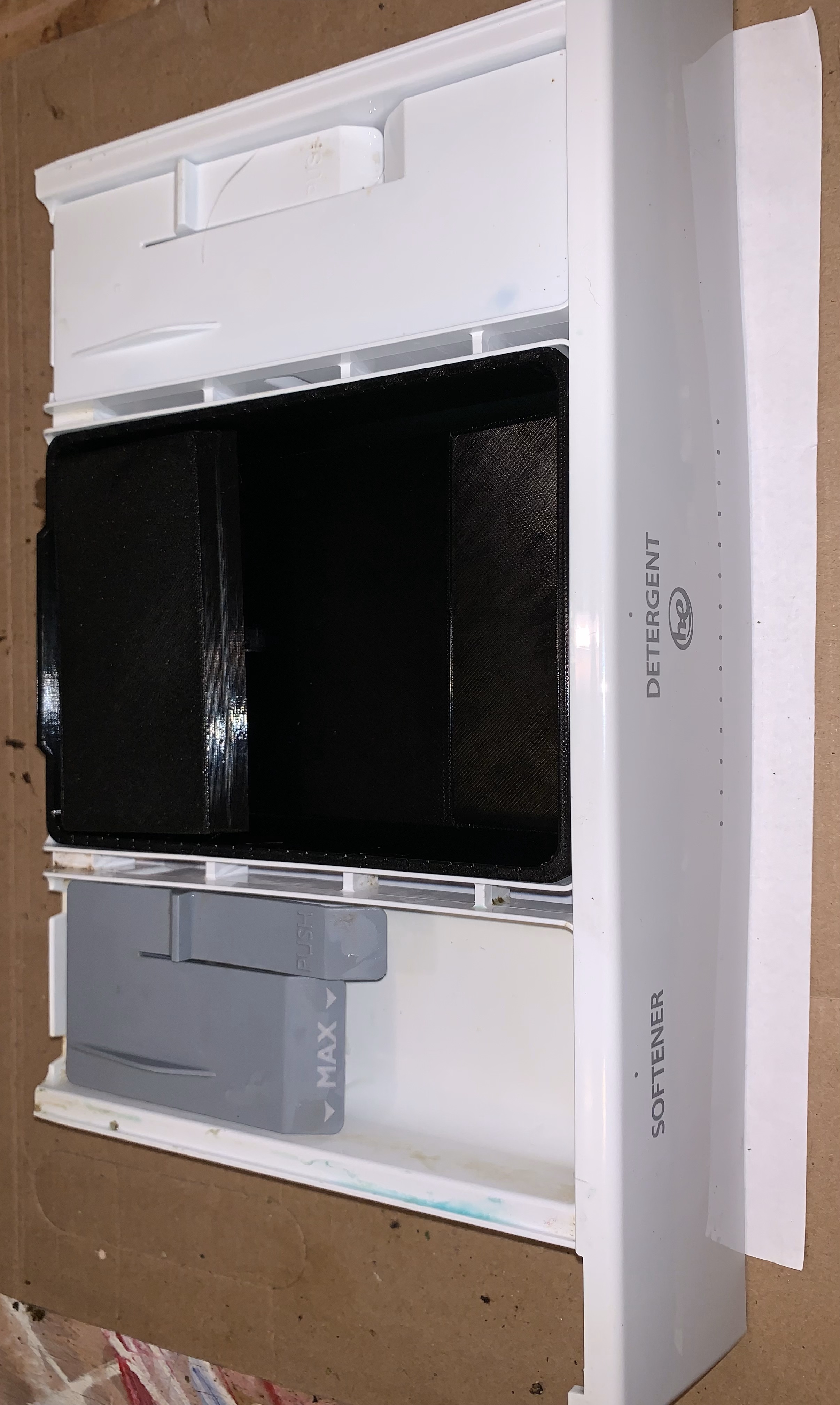

Detergent Tray Whirlpool Cabrio

Liquid detergent tray (for clothes washing machine)

Manufacture/model: Whirlpool Cabrio

Manufacture Manual Notes: Manual states that for liquid detergent you need this liquid detergent try and for powder detergent, to remove it. Without it, all liquid detergent pours out of the tray immediately.

Purchase Part Replacement Costs: New: ~ $50, Used: ~$25 (if available)

3D Print Notes: - Material Type: Overture PETG (Should print well with any material with proper print settings) - Design Program: FreeCAD - Printer type: Prusa MK3/S+, MMU2s, Single mode - G-Code/Slicer Program: Prusa Slicer v2.5.1 - Print Settings: Generic PETG - Nozzle Temp: 230*C - Bed: 85*C - Prusa MK3s printer options: (from printer display) - Speed: 85% - Flow: 90% - Print Time: - Main Tray: ~6 hrs 20min - Cap: 1 hr 50 min

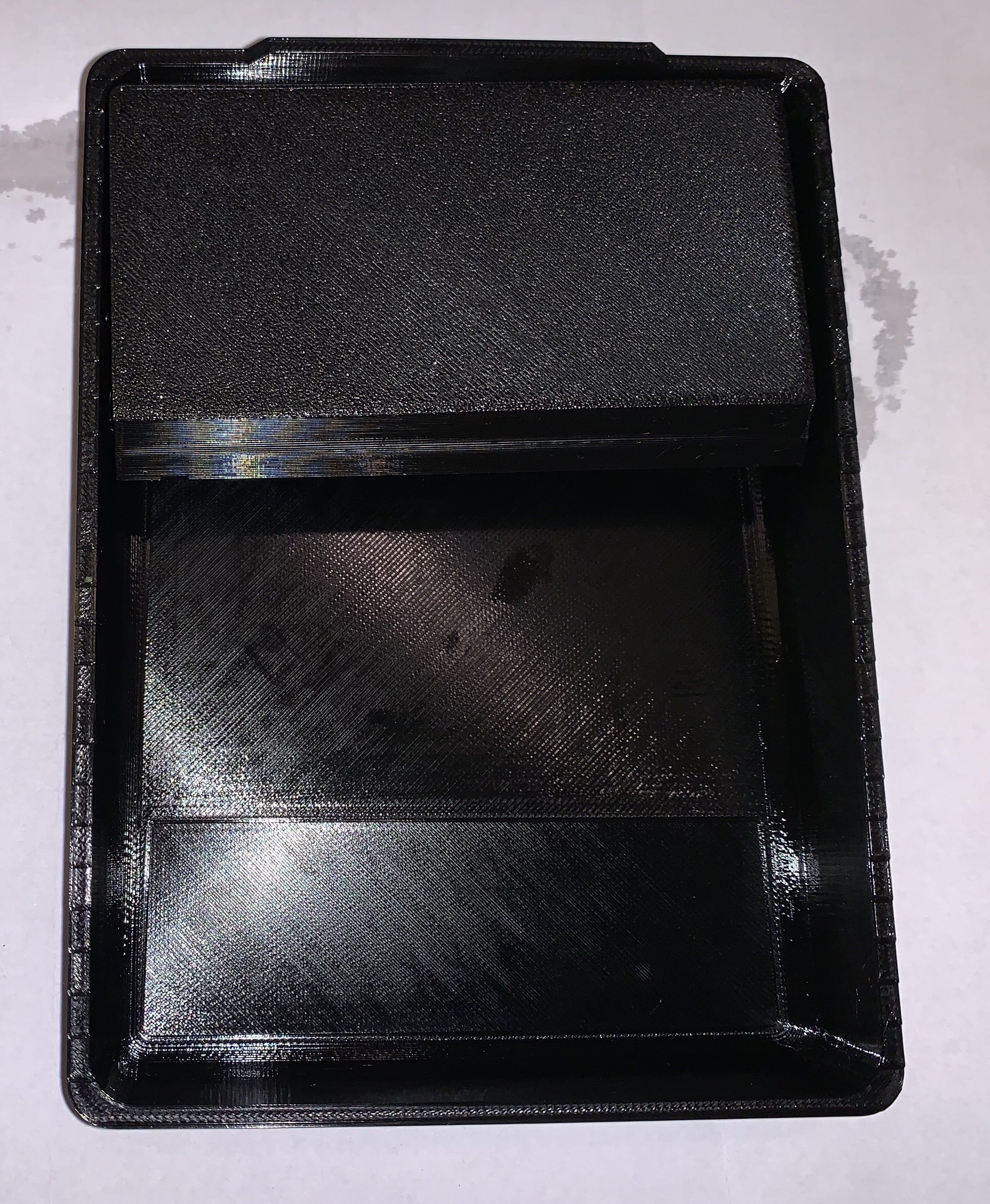

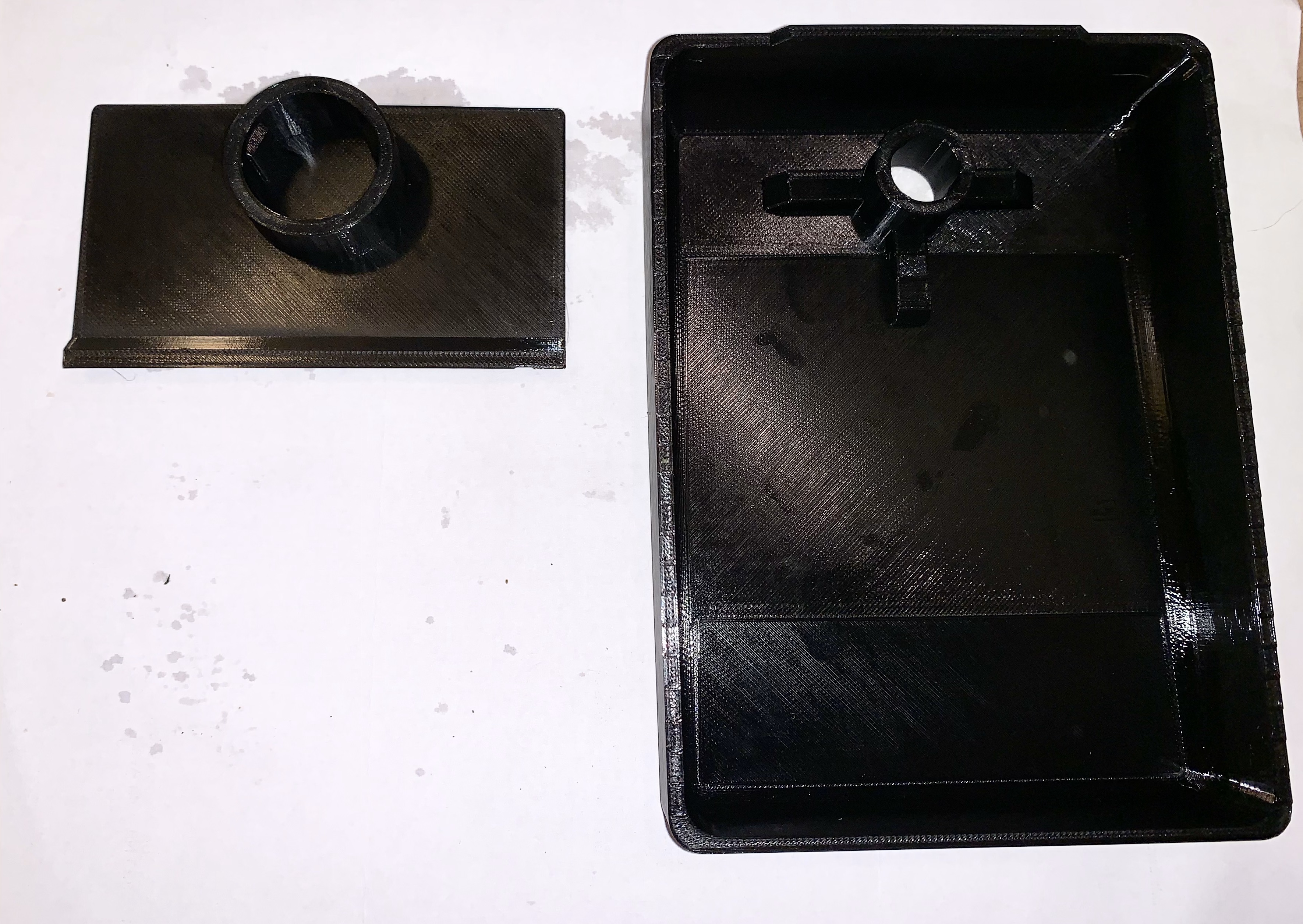

Part Design Notes: 1. I could have spent more time making the Tray Limit Cap fit on more snug on the Main Tra but when weighing the extra time vs the fact that whether the cap is loose or not, it's locked in place by the physical drawer, I opted to leave it loose. 2. On my machine, the Main Tray fit the first time after print but a little snug. If you have a scaling option, scaling the print down 2-5% might be a good idea. 3. When slicing, make sure to level the bottom of the part so that it's flat on the build plate.

Files Uploaded: STL: (Drop in Slicer) FCStd: FreeCAD File Format 3MF: Prusa Slicer / Most CAD Program File Format JPG: Pics of completed Project GCODE: Machine code (Print File)

Publisher Notes: (Disregard) Liquid Detergent Tray Revision Released: #11 Liquid Detergent Tray Limit Cap Revision Released: #4

Design and description by M , licensed CC-BY-SA.
