Dewalt DW735 to 4" 90° dust collection adapter
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~62 g
- Print time
- ~3.4 h
- Express shipping
- $20
More information

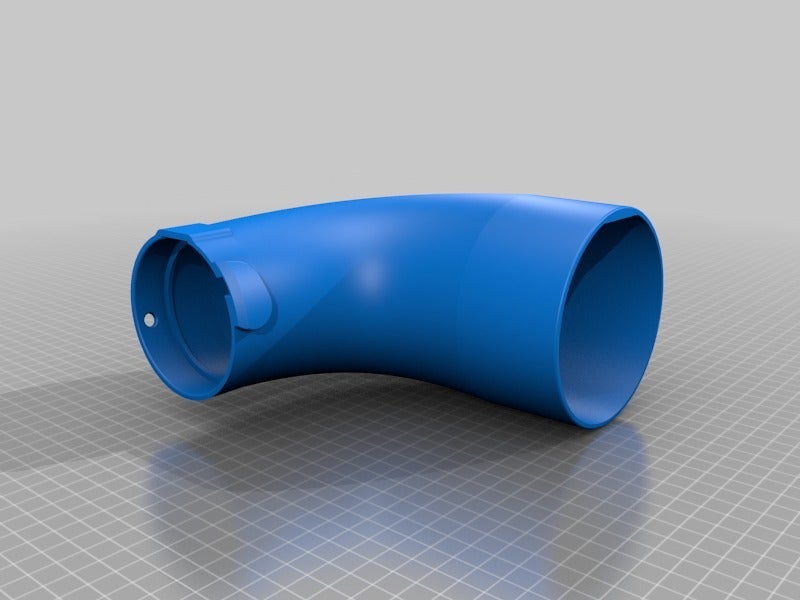

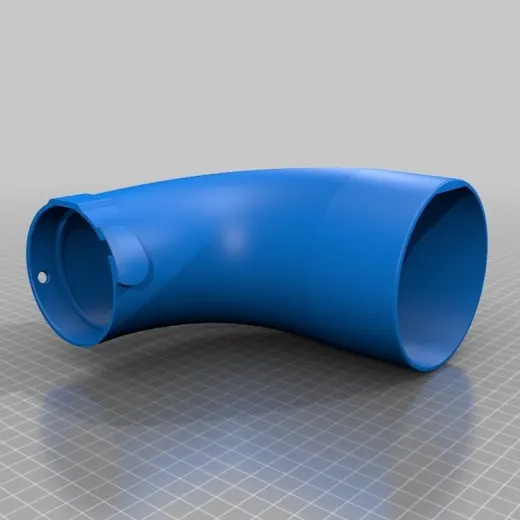

A 90° degree transition from the Dewalt DW735 dust collection port to 4". Here I'm using a Rockler quick connect but it'll also work fine with a 4" flex hose and it may work with various other fittings but I haven't verified this. The Fusion file is included so you can modify it to fit your configuration.
Print instructions
Category: Tools Print Settings
Printer Brand: Prusa
Printer: i3 MK3
Rafts: No
Supports: Yes
Resolution: 0.2
Infill: 15%
Notes
Printed in PETG with a 0.6 nozzle and four perimeters for strength. Recommend printing in the orientation provided with build plate supports as needed.
I needed to use 0.2 layer heights with the 0.6 nozzle to get all the inner and outer perimeters to adhere properly (and not be complete overhangs). There's a lot of bridging so if your printer is suspect in this area slice the top portion into a separate model and run some test prints of it.
Design and description by Frio , licensed CC-BY-SA.
More 3D printed DeWalt tool accessoriesMore 3D printed vacuum and dust collection adapters
Frequently asked
How long does shipping take?
Dewalt DW735 to 4" 90° dust collection adapter is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
