door lock indicator
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~21 g
- Print time
- ~1.2 h
- Express shipping
- $20
More information
This Model is a use of the three-stop Geneva drive presented here.
Background
The door lock has three positions: Unlocked- Locked - Locked twice. There is however no way of knowing in which state it is unless you turn the key or try to open it. The lock consists of a euro cylinder and a key that is stuck in the keyway.
Requirements for the mechanism
• It shall indicate the status of the lock: Unlocked- Locked - Locked twice • The key shall not be able to be removed without tools • Not bigger than the front plate is wide (50 mm)
Solution

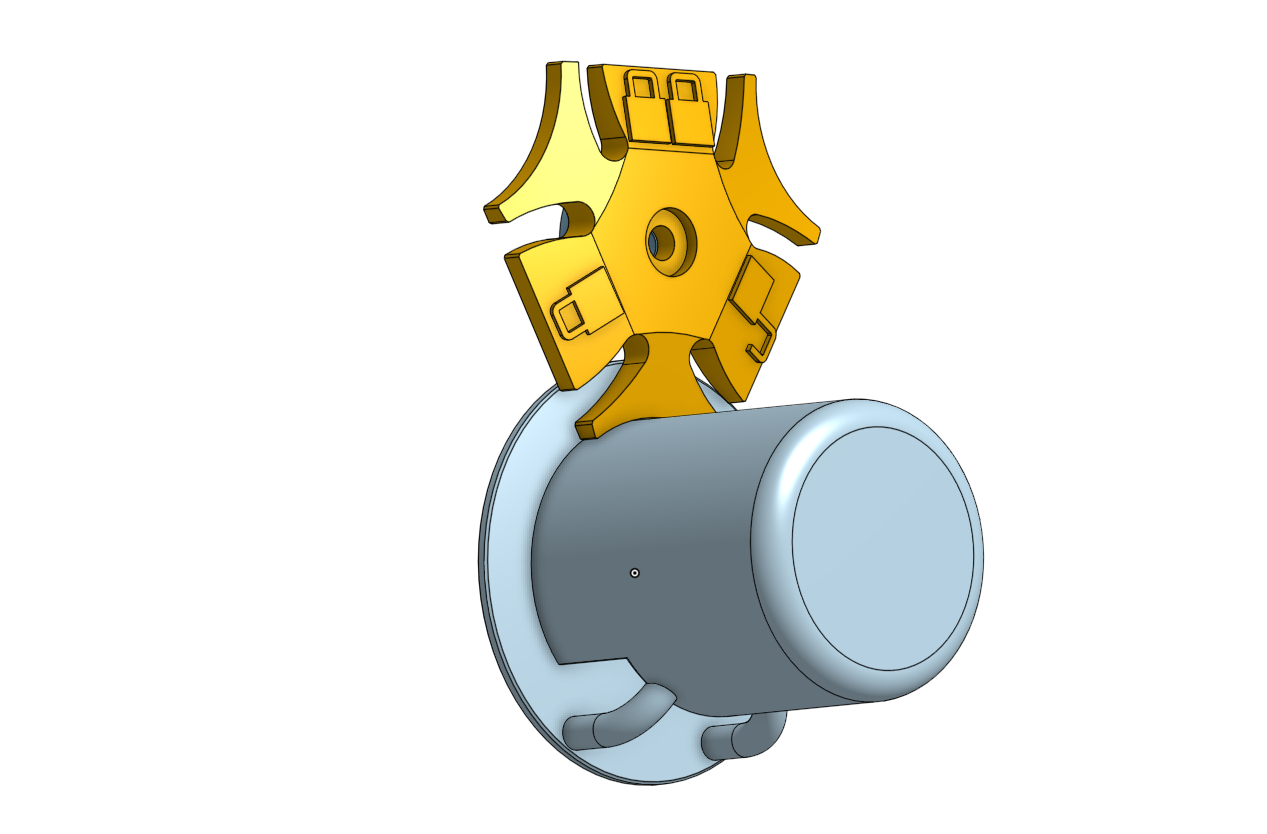

Cover the Key with a printed knob. Have a Geneva Drive as a state indicator. The Geneva Drive wheel also serves as retention plate of the knob - it cannot be removed without a tool.
Usage

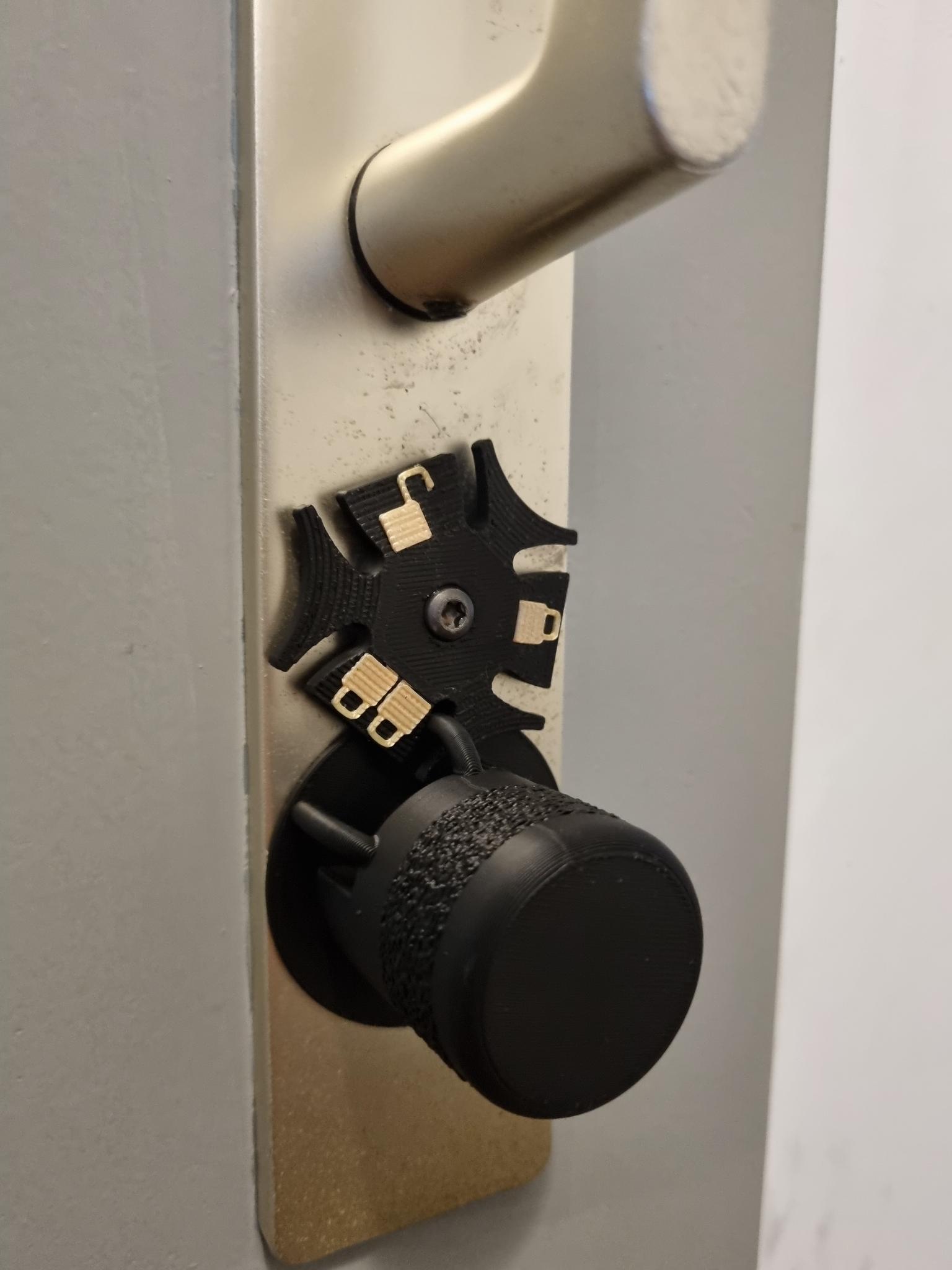

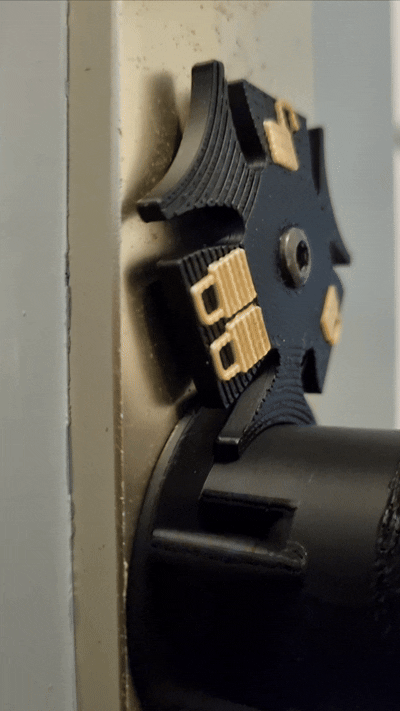

• put the key in the lock • add knob over the key • add three stop wheel and screw (synchronize the position with the lock state)
as provided in the 3mf file. There is one “Surface modifyer block” which allows to use fuzzy skin as you can see in the pictures.
Remix from here in onshape or with the provided files.
Design and description by Nils , licensed CC-BY.
