Door Lock Rod Clip
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~10 g
- Express shipping
- $20
More information
3D printer to the rescue once again. Two nights ago as I was getting in to my car (2000
Toyota Camry) in the freezing cold, I lifted the handle and nothing happened. Got in
through the passenger side and started home, once home I took a quick look, the door
handle rod had dislodged from handle, fortunately the handle looked intact. Forward to

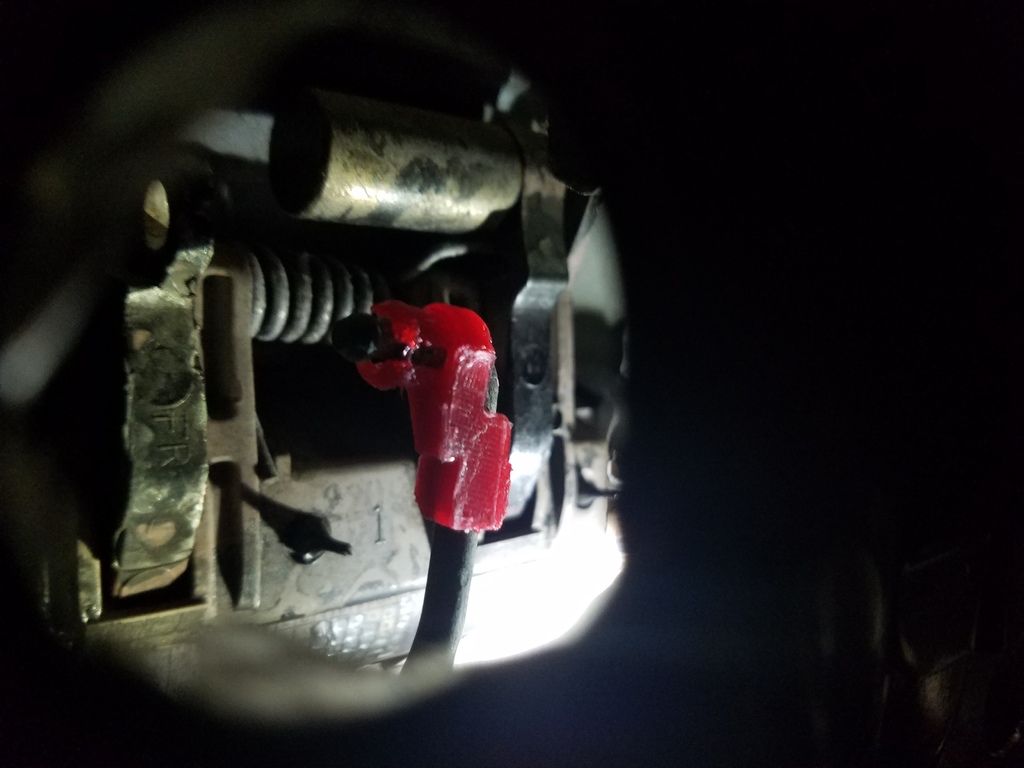

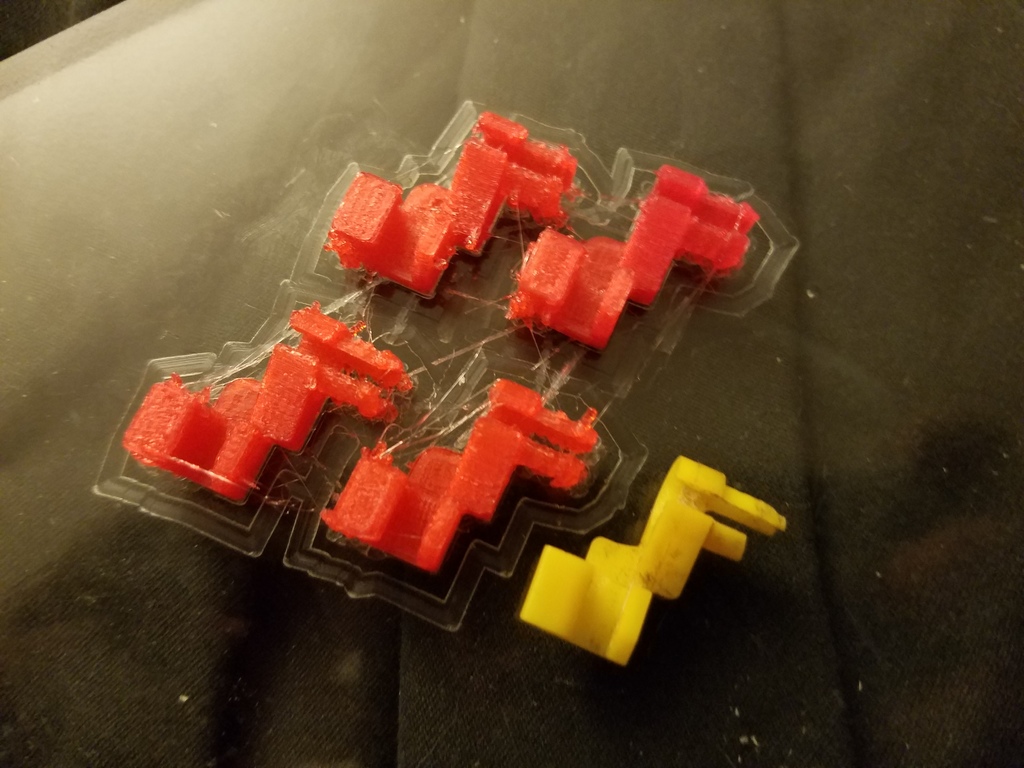

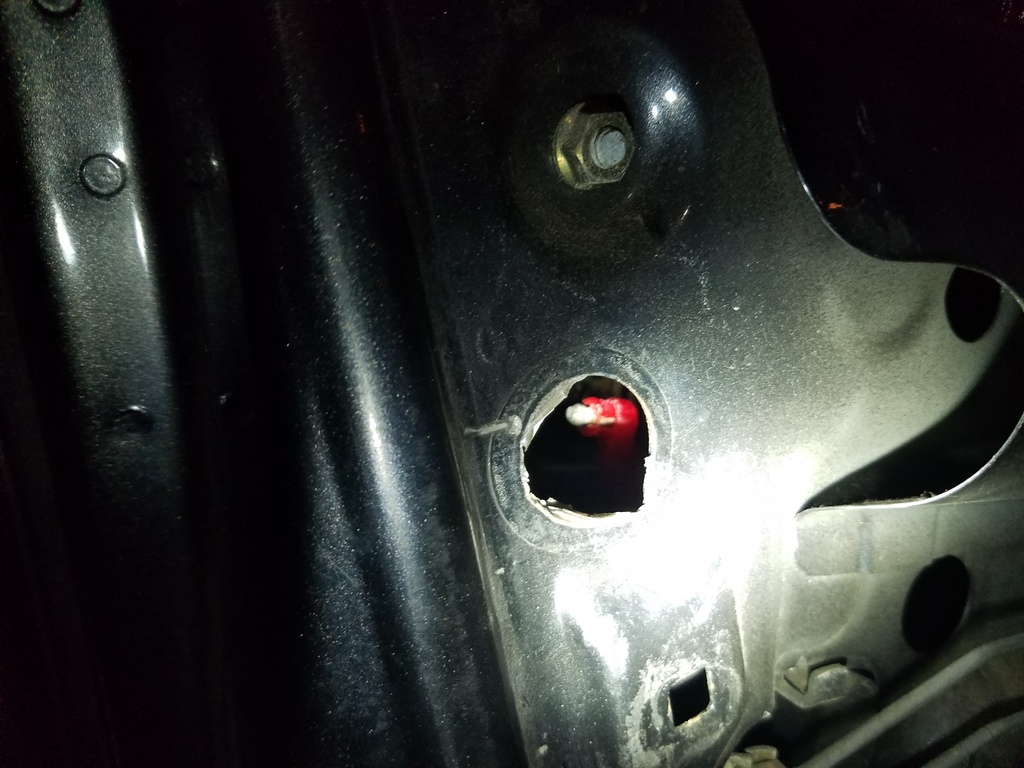

today, I finally get the door apart and see that the lock rod clip(the yellow thing) is broken
and so the rod won't stay in place.
Although you can get an assortment of the parts for about 5-8 dollars (Dorman Door Lock
Rod Clips 75474), no one has them in stock, so that would mean 3-5 more days of going
through the passenger side to open the driver door from inside. After about 45 minutes of
measuring and designing and then 3 hours of printing, the problem is solved for now. I'll
probably have to have someone else print some in ABS for the summer, but for now the
flexible filament seems to be doing the job.
11/14/22 Just got this info from ChaseBot_T800 on Thingiverse. They suggested I add this here, I agree.
For anyone who needs the part interchange cross-reference information: Application - Connects to Convertible Soft Top Cable 06-10 Pontiac Solstice 07-10 Saturn Sky (Cable OEM part # 19120272)
OEM Part # 15290793 (Folding Top Pulldown Actuator Bushing - GM) (Convertible Top Actuator Clip Holder)
Interchange:
Dorman 75452 Door Lock Rod Clip
Dorman 75455 Lock Rod Clip
Print Settings
Printer:
3up!
Rafts: Doesn't Matter
Supports:
Yes
Resolution: .1 mm
Infill:
100%
Notes
This is the driver side clip, I'm certain that should you need the passenger side clip, a little mirror image in your slicer would take care of it.
Category: Automotive
Design and description by Joe_Snuffy , licensed CC-BY.
