Double Pulley - 608 Bearings
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~69 g
- Print time
- ~3.8 h
- Express shipping
- $20
More information
10/24/2024 - Version 2
• V2 adds a sheave guard for the big wheel to protect from rope creeping over the rim • Increased width of the spokes to 5mm • Added a Zero variant that does not require an M4 bolt and nut. Print 4 of the axel pieces which lock in place with gentle hammering • Changed wheel groove profile to increase depth

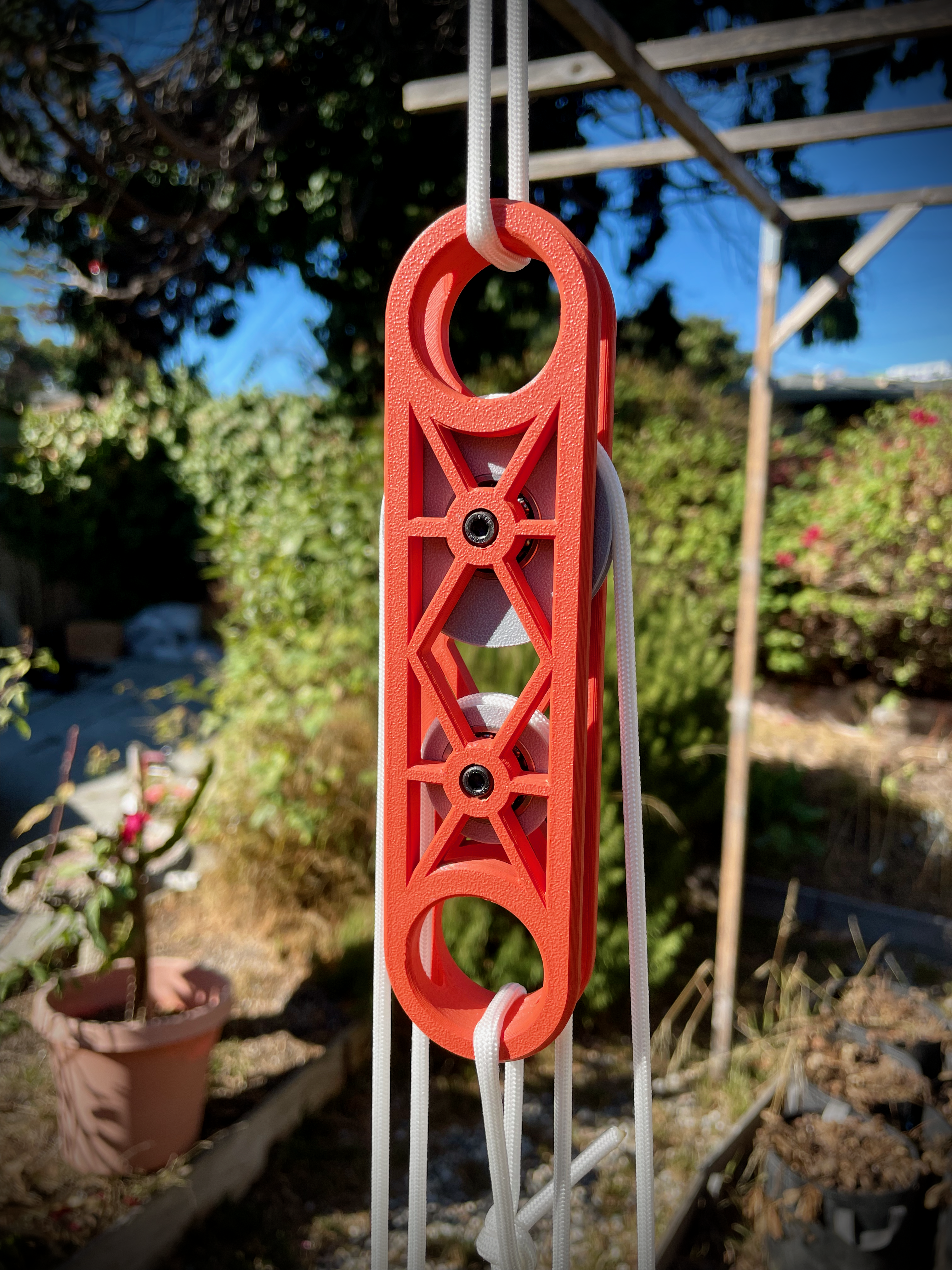

A larger double wheel version of the smaller Snatchblock Mini. Create two of these pulleys to work together and achieve an impressive 1:4 mechanical advantage. For example, a set of these pulleys are capable of lifting 40 pounds with only 10 pounds of downward pull.

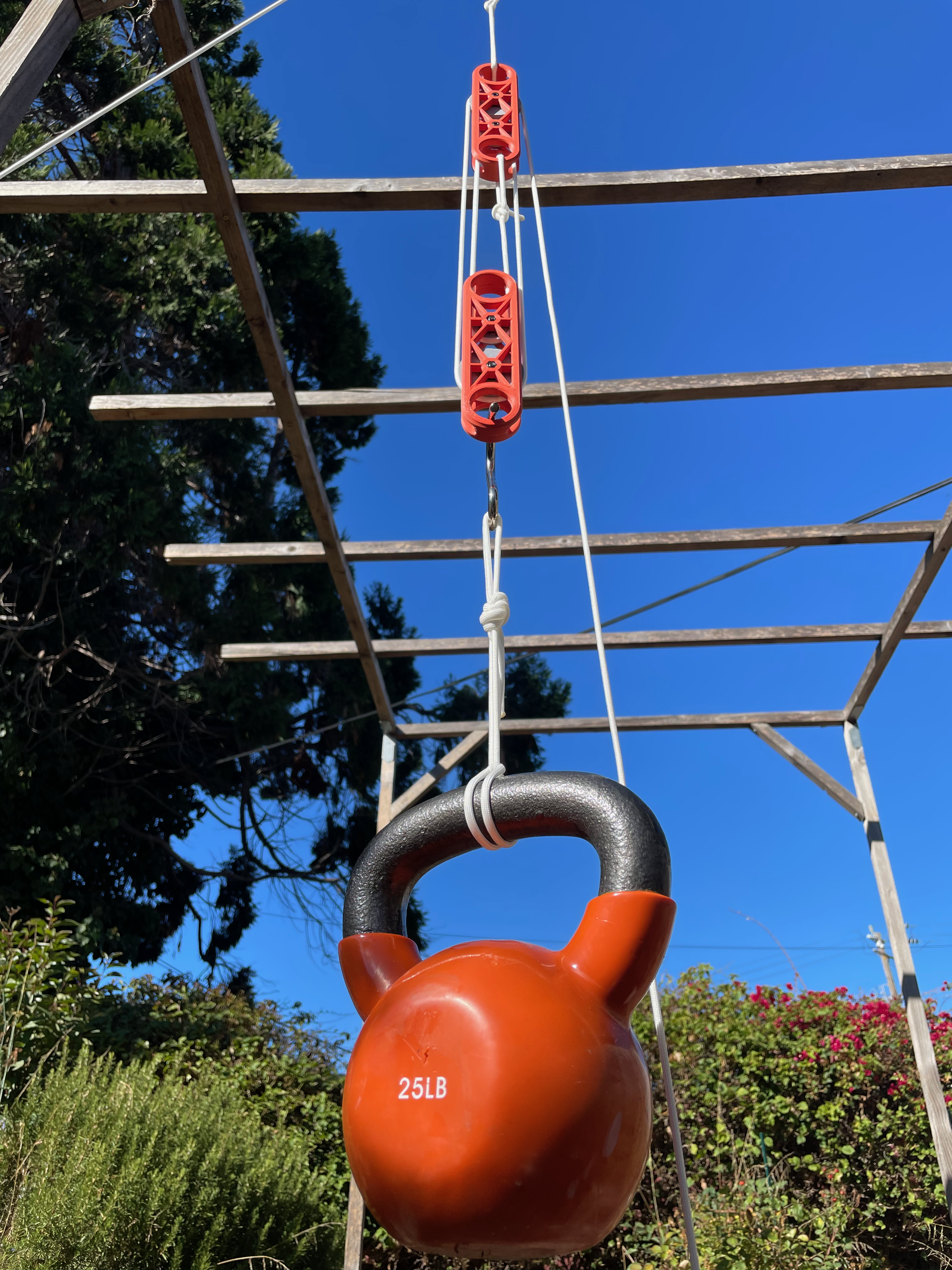

Light duty - 25 lbs successfully tested
Dimensions - 175mm x 44mm x 20mm
Required hardware (V1)
2x - M4 16mm hex socket cap bolt 2x - M4 nut 2x - 608 bearing
Printing
No supports are required! To maximize strength increase the number of perimeters or use a 100% infill.
Assembly
See attached exploded view.
Design and description by SecretGarden , licensed CC-BY.
