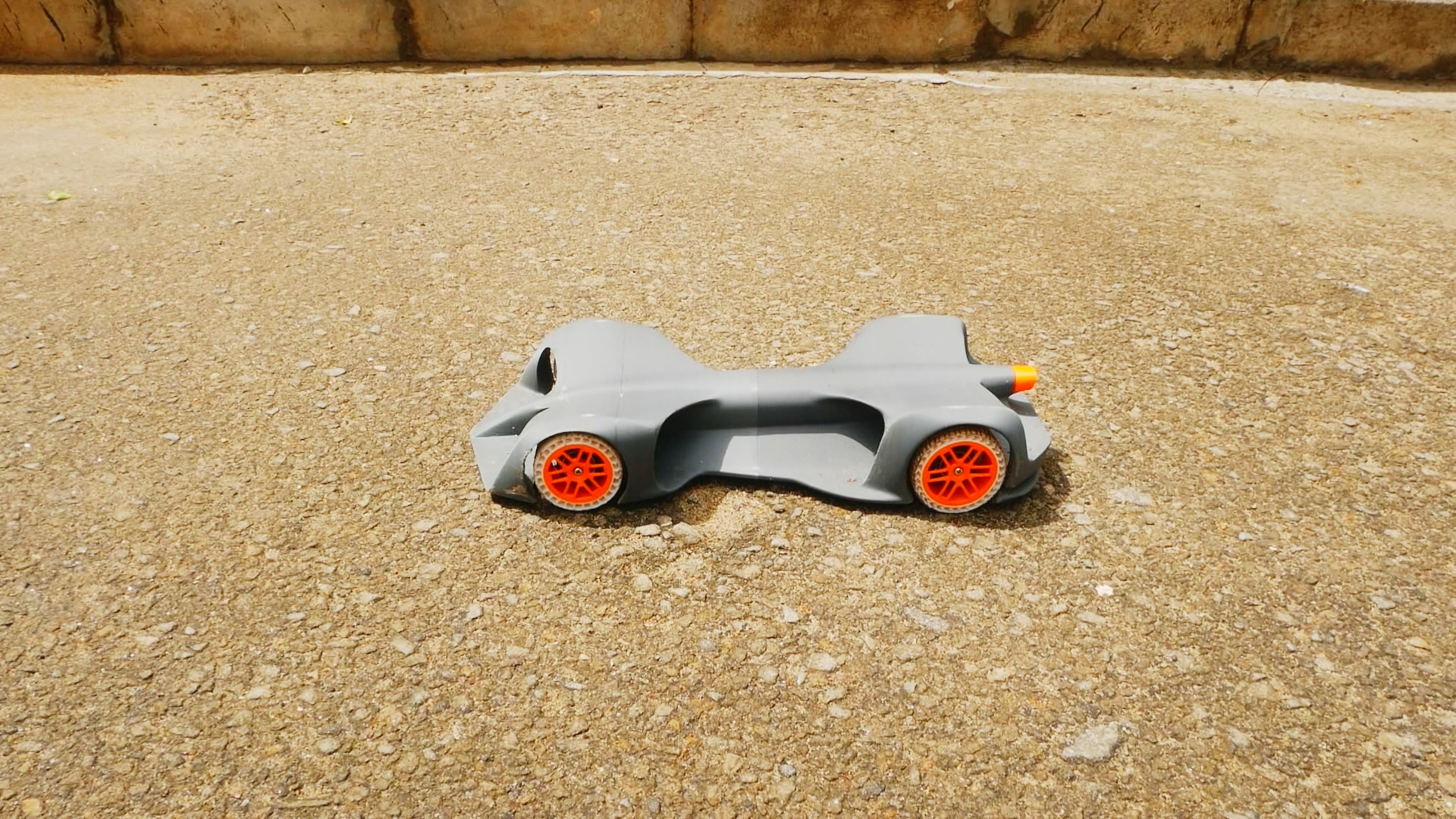

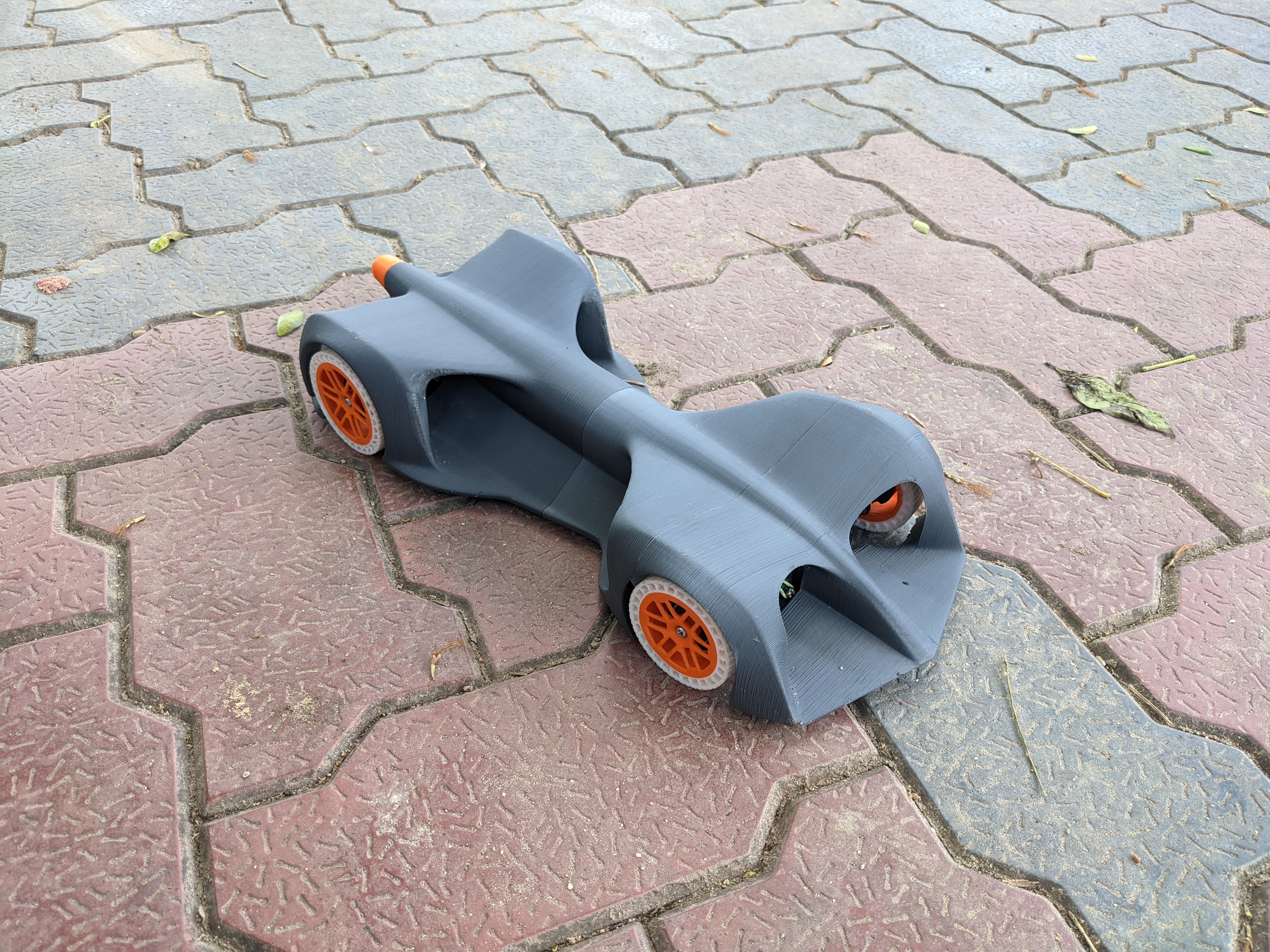

Dragon R1 - Open Source RC car
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~107 g
- Print time
- ~5.9 h
- Express shipping
- $20
More information
Features of this Open Source car
• Maximum 3D printed parts • Easy to source hardware • Simple Assembly • Easy maintenance and battery access • Dual wishbone suspension • Open differential • Low noise drive (using Blheli ESC) • Printable with a 200mm size printer
Model is 1/12 scale;
• length: 396mm • width: 164mm • height: 71mm
Wiring Diagram
The assembly process is divided into 3 main parts:
1) Rear chassis
• Rear axle • Differential • Rear Suspension
2) Front chassis
• Steering mechanism • Front suspension
3) Body assembly
• Base chassis • Body
Check out our Instructables
Remix Collection: Dragon R1 & Remixes
Update notes
The design has been updated now, It is slightly different from the one shown in video.
Refer to the following photos for assembly.
Join our Discord
3D View
Fusion 360 3D View
Notes

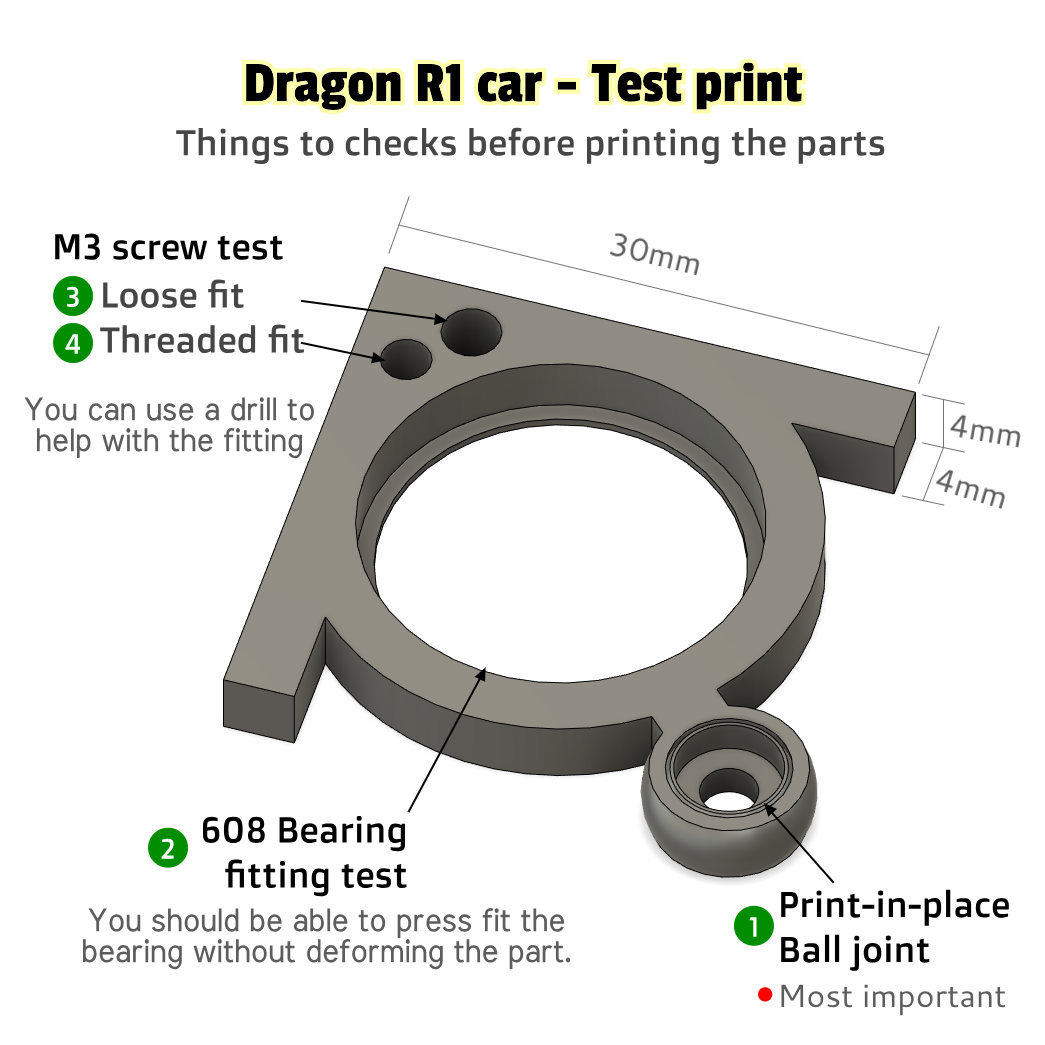

• Cura 5.0 above is the recommended slicer for this model. Rafts and Supports are generally better in Cura. • The 3mf files were generated with Cura Slicer. STLs also provided for other slicers. • The body requires tree supports when using "touch build plate only" support option. Please check the print preview before printing. It is better to print the two parts separately.
Print settings
Cura 3MF file
Design and description by RamBros , licensed CC-BY.
Frequently asked
How long does shipping take?
Dragon R1 - Open Source RC car is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
