E3D V6 Nozzle Change Tool
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~33 g
- Print time
- ~1.8 h
- Express shipping
- $20
More information
This is a design to make a nozzle change tool for the E3D v6 nozzles. It will let you easily remove and add the nozzles better than the manual spanner and much quicker to use. This STL is just for the handle, you will still need some other parts. There are other E3D wrenches/screwdrivers on Thingiverse, however I didn't find them to work because they are entirely plastic, which doesn't work if you are heating your nozzles up to 250c before changing them, which is proper. This design uses a metal hex socket and creates a sort of screwdriver from it.

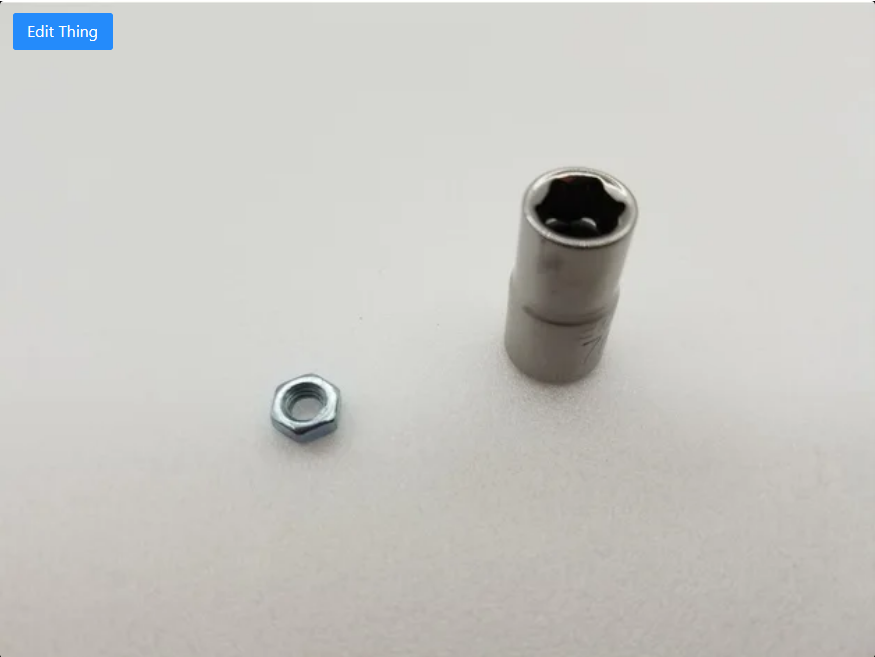

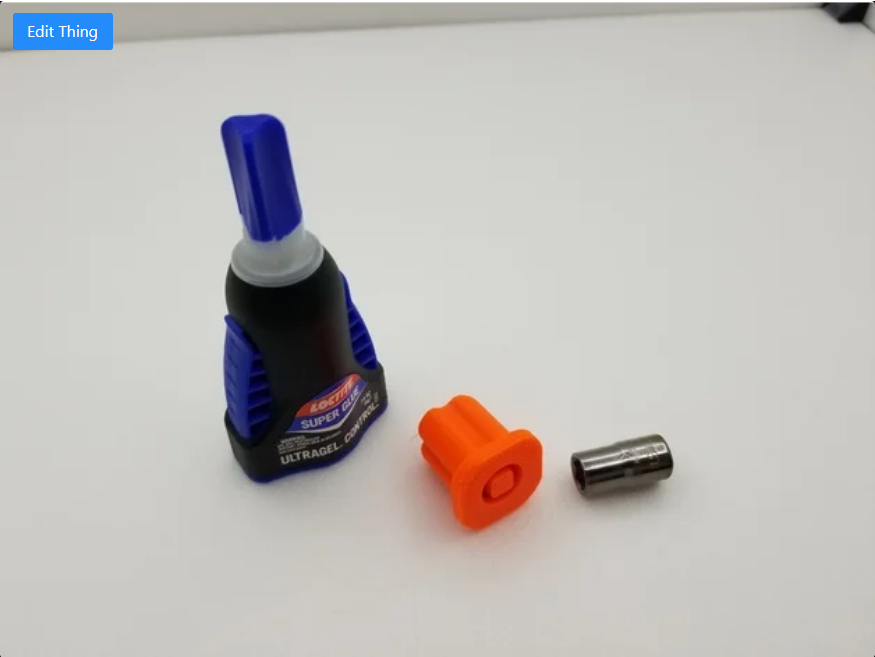

You will need the following things: • 7mm hex socket with quarter inch drive ($1 on ebay). • M4 nut ($1 on ebay for 20 pack) • Superglue (I recommend Loctite Ultra Gel Control).

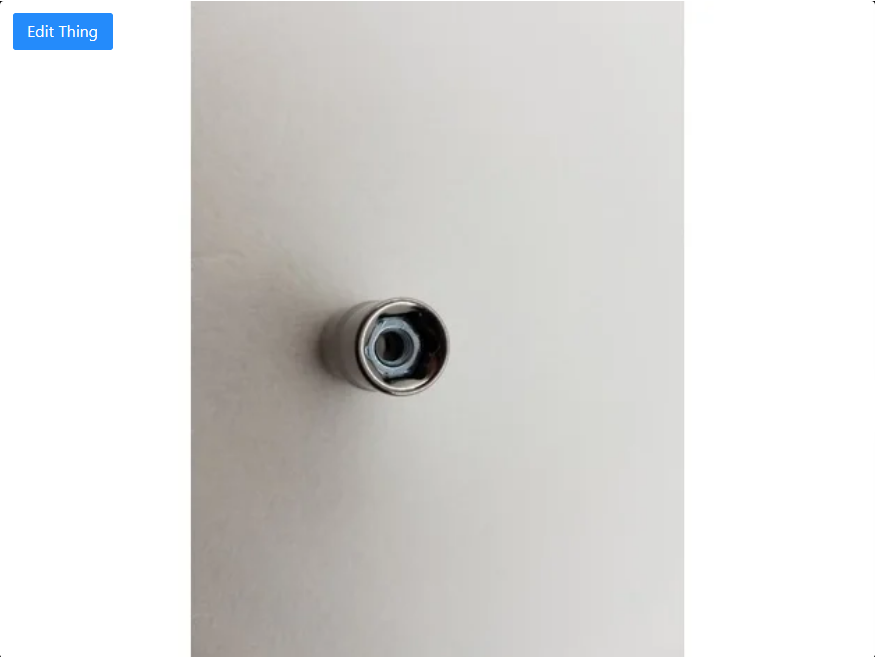

Instructions: 1) Print the handle from the STL file. 2) Superglue the M4 nut into the 7mm socket. This is simply a spacer to make the socket not as deep, so that the E3D nozzle doesn't sink too far into the socket. 3) Insert the socket into the printed handle. It should fit snugly and not come out, but if not add a little bit of superglue. 4) Screw and unscrew your nozzles with ease!
See photos.
You can increase the Z scale in slic3r if you want a longer handle. Feel free to re-mix this design.
_________________________________________________________________________________
I like to modify my printer parts, trying to make them better. Take a look at some of my other projects and designs:
MK3S Z-Axis Tops Improved (Less vibration and easier Z-Screw Alignment)
MK3S Y-Axis Motor Mount Ultra (Possibly the best Y-Motor mount? Unsure. )
MMU2S Single Filament Guide Festo M5 Coupler (Retain your original MK3S spool mounting while still using MMU2S in single color mode)
Ultimate Fan Speed Test (Test the best fan speed for your filament, dynamically)
_________________________________________________________________________________
If you're absurdly rich and want to support a poor guy like me in my 3D printing and photography endeavors, check out my Patreon: https://www.patreon.com/photogad
Design and description by OurAngryBadger , licensed CC-BY.
Frequently asked
How long does shipping take?
E3D V6 Nozzle Change Tool is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
