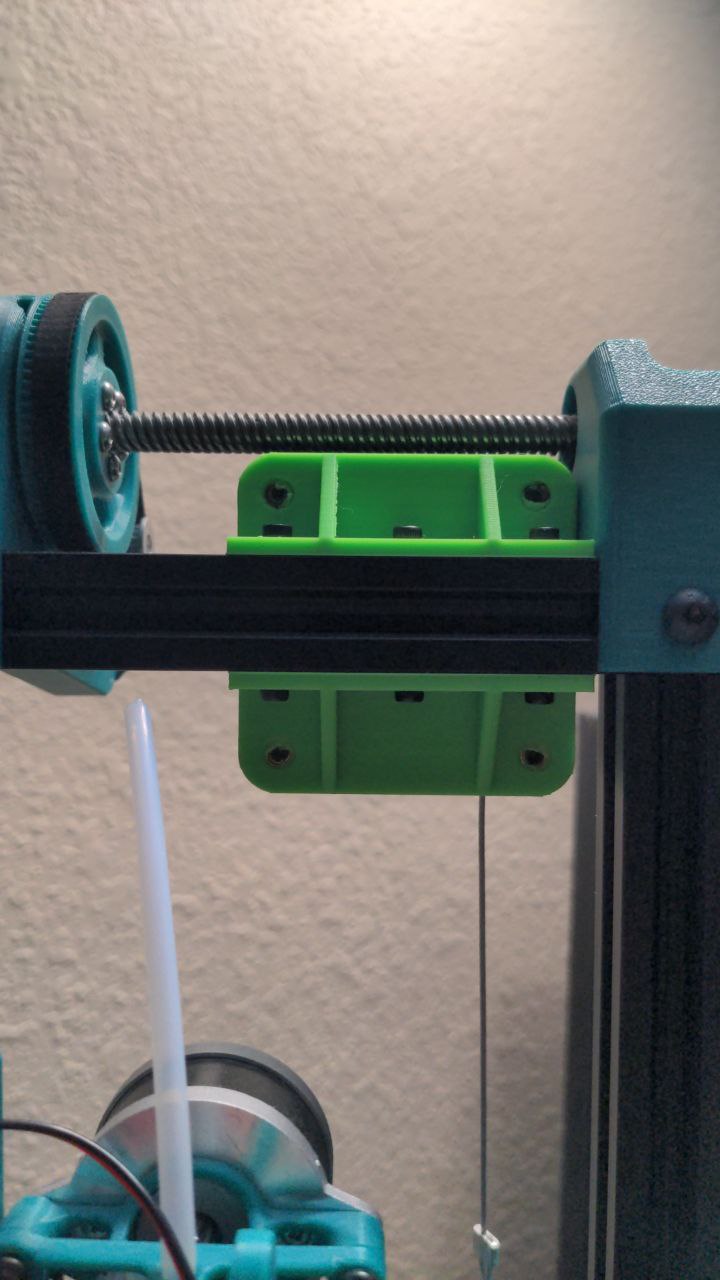

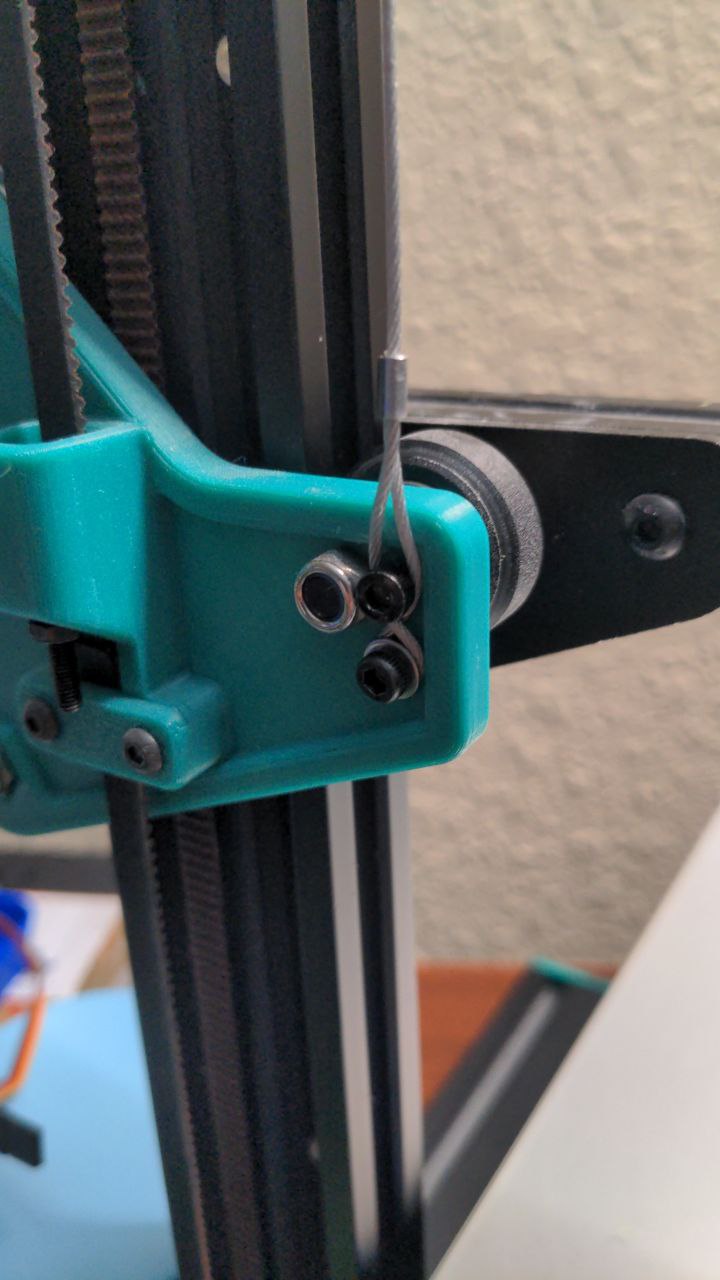

Ender 3 gantry counterweight for z belt mod using aliexpress door closer

This is an alternative and cheaper (for me) solution for a counter weight, and yes I know, “properly tensioned belts you wont need this” which is anecdotal anyways.

I included a picture to what the product looks like in case the links happen to die and you come across this beofre I update with a working link.

BOM:

** I ONLY RECOMMEND FLAT HEAD BOLTS SINCE THERE IS A GROOVE FOR THEM IF YOU DONT CARE ABOUT THAT, THIS https://www.amazon.com/1080pcs-Washers-Assortment-Stainless-Assorted/dp/B0C8TB9FDM/

ASSORTMENT HAS ALL M3/M4 YOU NEED FOR A GOOD PRICE. **

Door closer, price (at the time) $3.02 USD + 1.99 shipping or free if you buy over 10 dollars which I did for other projects, and back up just in case :

UPDATE updated link for aliexpress, I purchased 1100g but 1000g is fine.

https://www.aliexpress.us/item/3256804531024497.html

https://www.amazon.com/QWORK-Upgraded-Punch-Free-Automatic-Adhesive/dp/B0D59JP7FC

Heat set inserts M4 x 6 x 4 :

https://www.aliexpress.us/item/3256803396040989.html

https://www.amazon.com/gp/product/B0B46YBNV4/

M4 x 22 - 25 flat head :

https://www.amazon.com/Socket-Screws-Countersunk-Threaded-Assortment/dp/B0BYXT39S2/

https://www.aliexpress.us/item/2251832614661131.html

https://www.aliexpress.us/item/3256803862092649.html

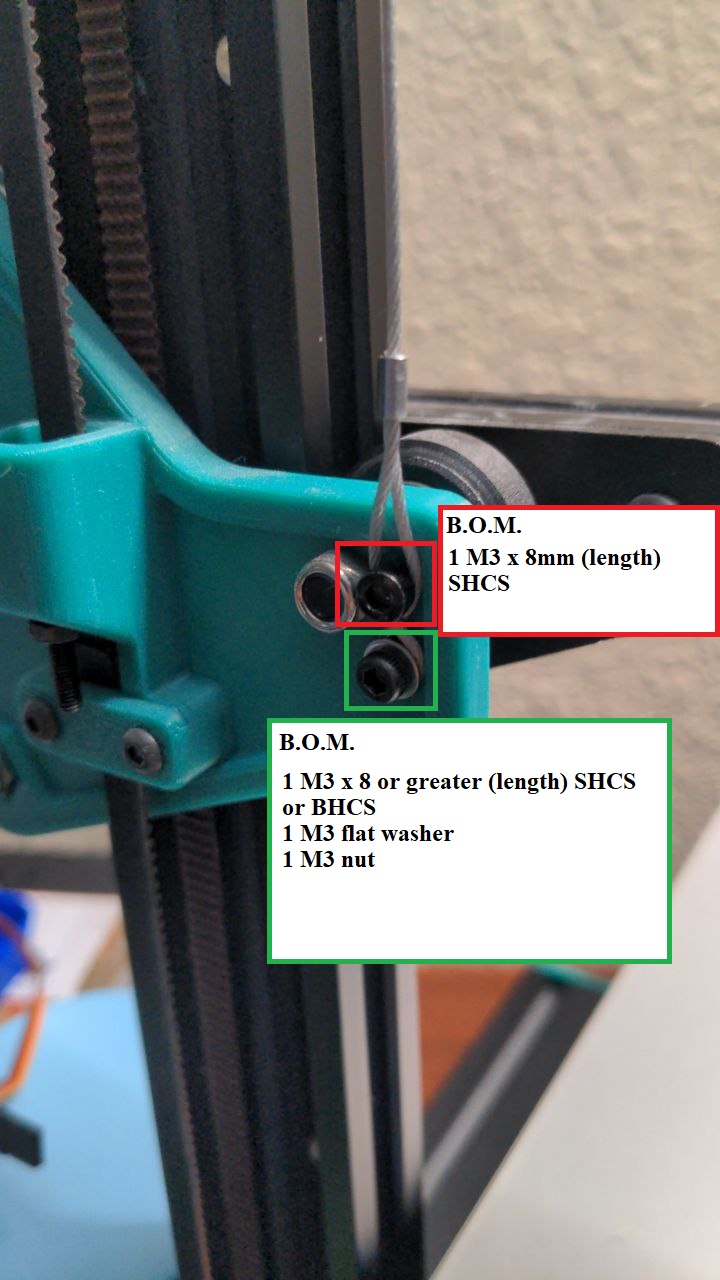

M3 x 8 socket head :

(assortment) https://www.amazon.com/1080pcs-Washers-Assortment-Stainless-Assorted/dp/B0C8TB9FDM/

https://www.aliexpress.us/item/3256805291929158.html

https://www.aliexpress.us/item/2251832255868282.html

M3 flat washer :

https://www.aliexpress.us/item/2251832397442551.html

(m3x7x0.5) https://www.aliexpress.us/item/3256803805504664.html

M3 nut :

nylon locking nut:

https://www.aliexpress.us/item/2251832612458814.html

regular nut:

https://www.aliexpress.us/item/2251832792236700.html

Design and description by Nerd² , licensed CC-BY-SA.
