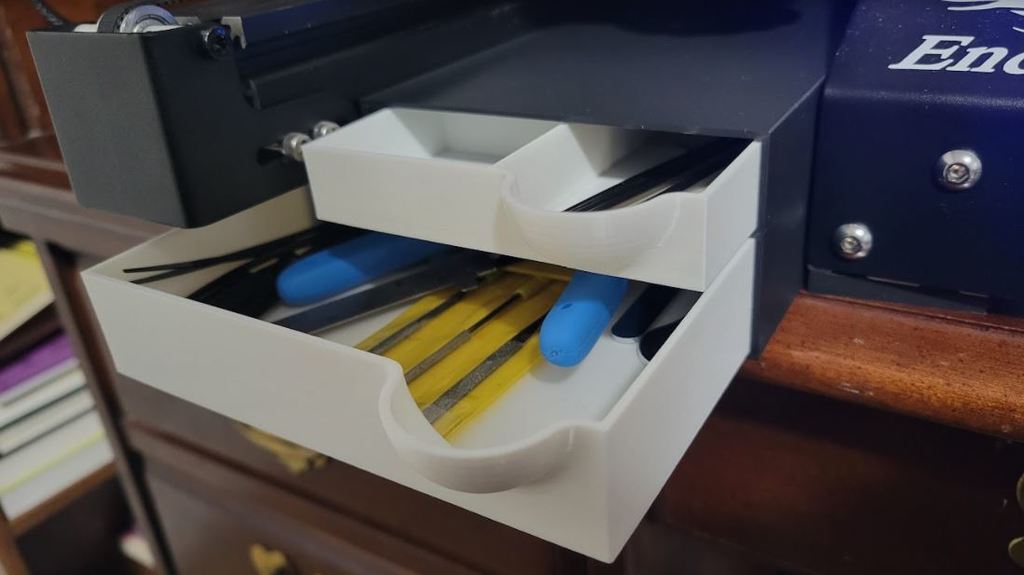

Ender 3 Pro shorter drawer (fits recently manufactured Ender 3 Pro machines that have less space under the bed)

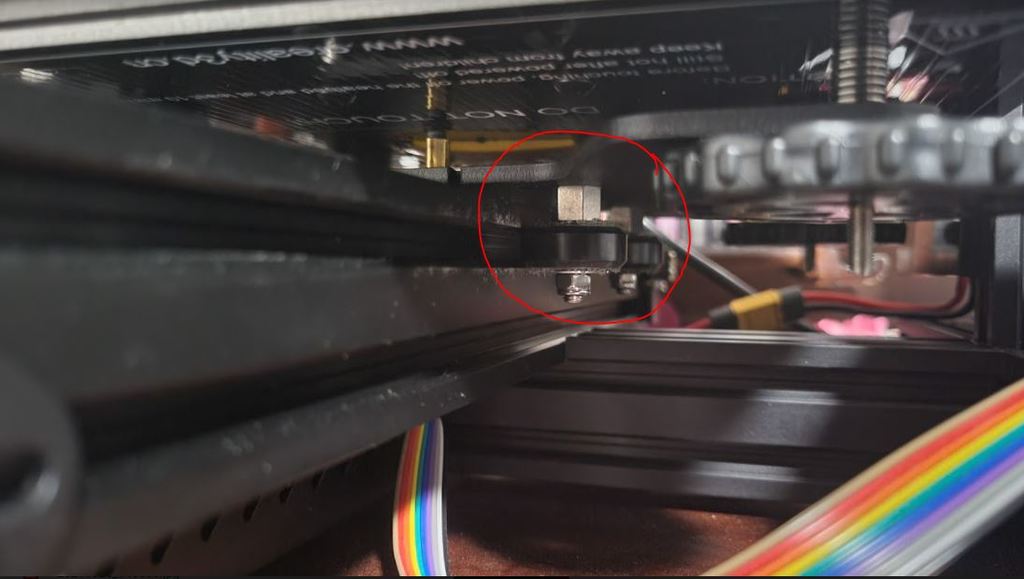

Fits the newer Ender 3 Pro without needing to reverse bed bolts! The case is 52mm tall, so you can double check the bolt under your bed won't rub into the case. The 3rd photo shows which bolt to watch out for.

This is a remix of https://www.thingiverse.com/thing:5162890 (for the case) and https://www.thingiverse.com/thing:4758081 (for the drawer style).

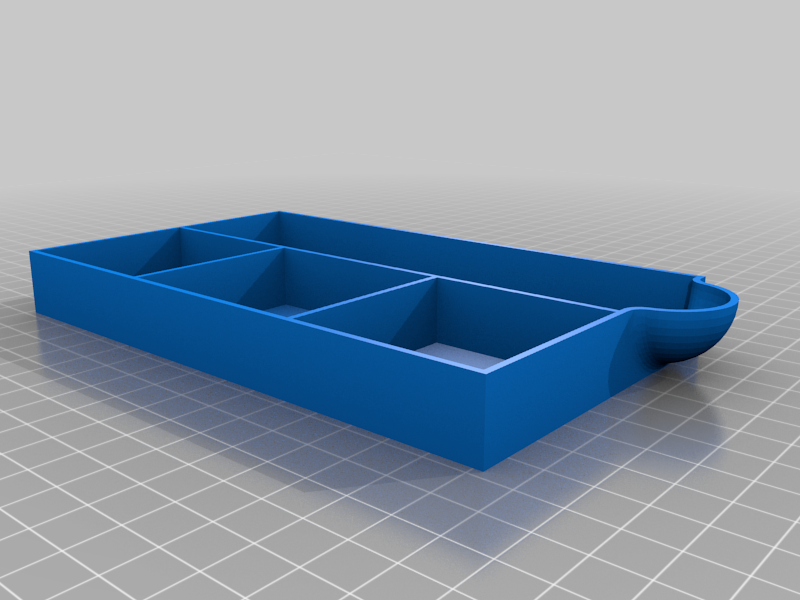

The case is identical to @Etienne2021's shorter case. The bottom drawer is identical to @Pseudostud's drawer (the bottom drawer is empty, no dividers). The top drawer takes @Pseudostud's top drawer design and is sized for the shorter top drawer box from @Etienne2021.

Print Settings

Printer Brand:

Creality

Printer:

Ender 3 Pro

Supports:

Yes

Resolution:

2.8

Notes

I printed the case and the top drawer at 2.8 layer height using the CHEP Cura profiles. I used the Cura 4.12 files even though I have 4.13 installed.

This took the print time down to 11 hours!

Flip the case on it's back and you won't need supports. Both drawers need simple supports for the bottom of the handle - but both supports came off very easily.

I printed the bottom drawer at 0.2 layer height (since I wanted it to run overnight), and the top drawer at 0.28. I can barely tell the difference between them.

I used 30% infill, but I doubt it matters much since there's barely any space between the walls (except in one place on the drawer case).

Mine printed fine without a raft for the drawers, and didn't even need a brim for the case.

Category: 3D Printer Accessories

Design and description by bagel , licensed CC-BY.
