Ender 3 Z-axis Cable Chain Routing Cup
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~82 g
- Print time
- ~4.5 h
- Express shipping
- $20
More information
This assembly is intended to be used with johnniewhiskey's cable chains. The Design of those (including the mount points on RoutingTray.stl) are attributed entirely to them.
After converting my printer to direct drive, I started printing these cable chains. I realized I wanted to have a cable chain for the z axis and for the x axis, meaning I needed some kind of joint between them. With the newly freed spot where my extruder motor once was, I had the idea of mounting it there. Then I realized I had a lot of slack in the NMEA motor wire extension I bought for the direct drive setup. Which made me realize I could stuff away the slack in a cup through the hole the motor used to go through. That is where this design came from.

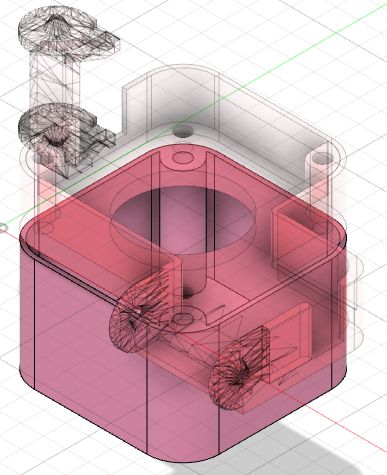

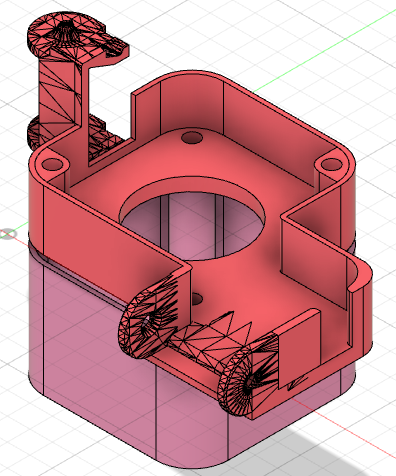

To assemble, place cup.stl under the bracket (where the stock motor would go), place RoutingTray.stl on top of the bracket. Align the screw stems of the cup to the corners of the tray which does not have screw stems and use #6 (3.3mm diameter) screws to attach both components. Assemble your cable chains, connecting up to the tray. Stuff any excess cable in the cup. Once all cables are routed, use more #6 screws to attach lid.stl to the tray. This assembly process is outlined in the attached photos
This design is just a first revision, but I figured I would put it out there for anyone in the incredibly niche situation.
Design and description by Jonathan Evans , licensed CC-BY.
Frequently asked
How long does shipping take?
Ender 3 Z-axis Cable Chain Routing Cup is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
