Ender Extender (400) Storage Bin
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~11 g
- Express shipping
- $20
More information

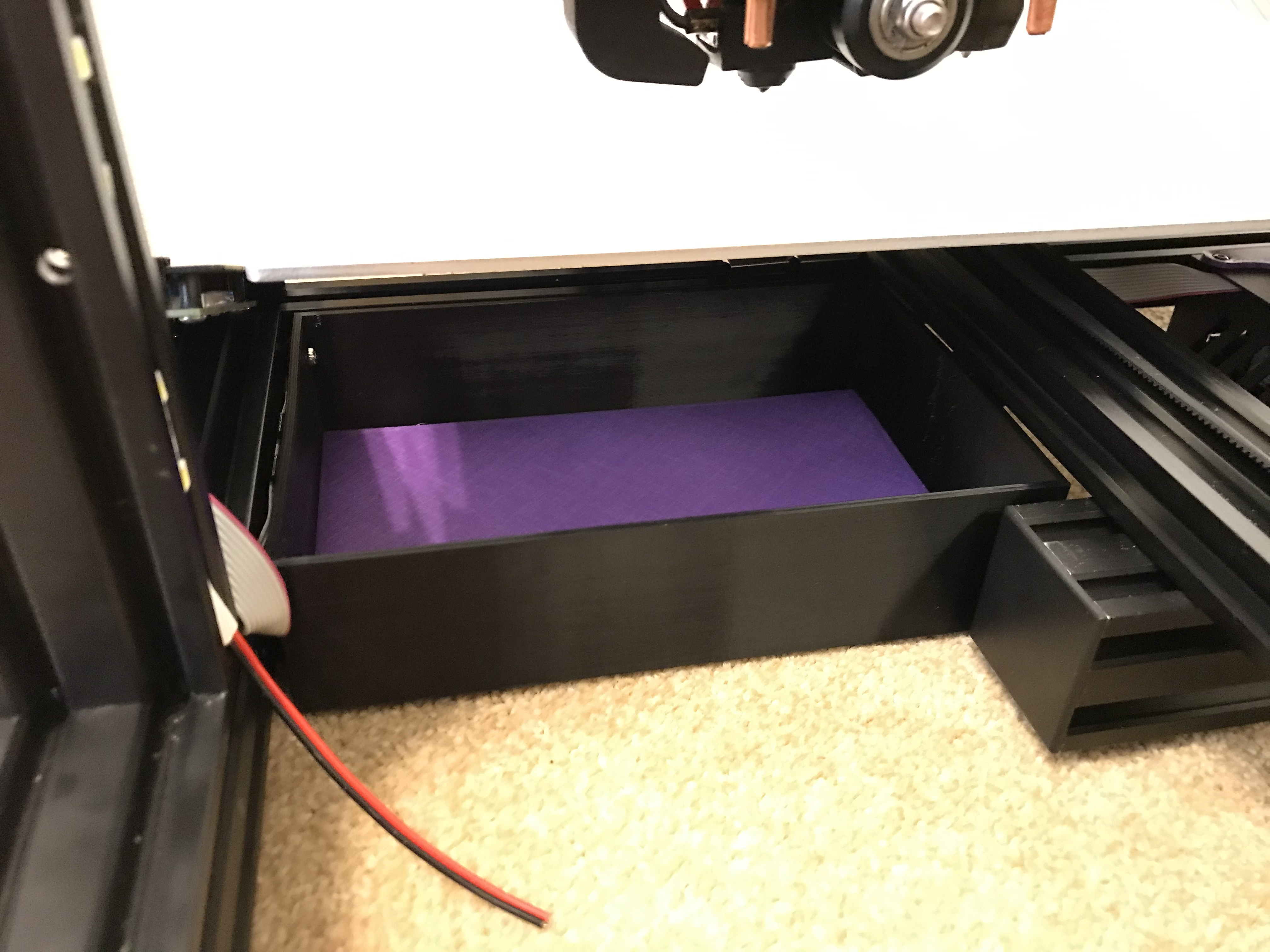

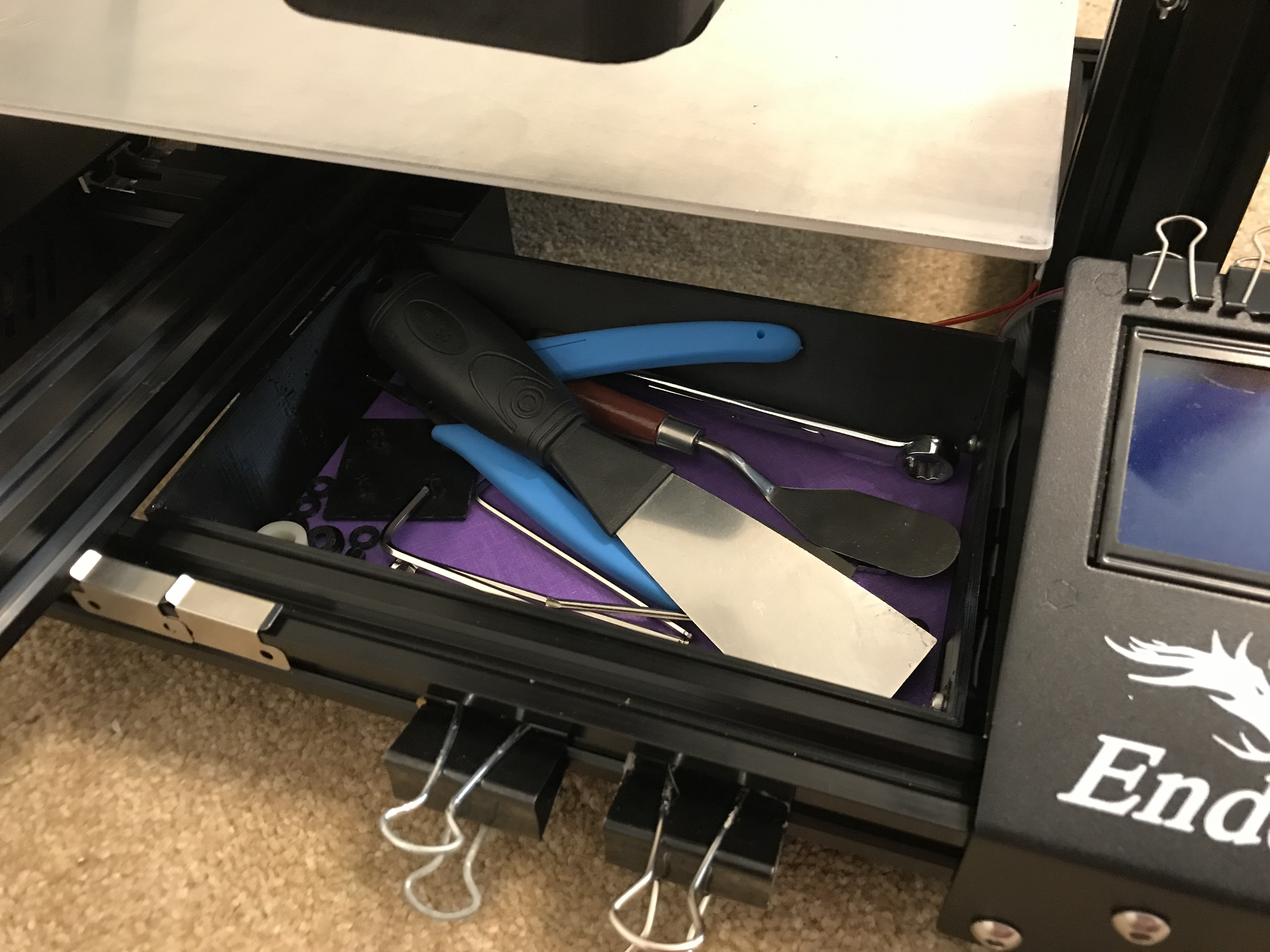

If you have installed the Ender Extender 400 kit, this fills in the huge empty space on the front right of the printer with a useful storage bin. It mounts using M3 hardware and T-nuts; there is room left for the display ribbon cable to pass around it. Will fit on a 220x220mm build area if you disable any raft, brims, or skirt.
A mat insert is also included, for printing with TPU. To give a nice non-slip surface to the floor of the bin.
Print settings
• Material is at your discretion. I used PETG for the bin, and TPU for the mat. • Layer height is also at your discretion however I designed the bin for a 0.24mm layer height, and the mat for a 0.12mm layer height. • Recommend 0.5mm line width as many of the dimensions are a factor of 0.5mm thickness. • Recommend tree supports, touching build plate only.
Installation:
Use M3 screws with T-nuts to populate the holes. For the side with 4 stand-offs, I only used 2 of them but it gives you some options.
Offer up the bin from the bottom, as the end with the tab flange is going to the bottom of the Y-axis extrusion. Be careful of the display ribbon cable - depending on how you routed it, ensure it is not pinched by the standoffs. There is space for the cable to run between them.
Design and description by odonnell944 , licensed CC-BY.
Frequently asked
How long does shipping take?
Ender Extender (400) Storage Bin is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
