Extrusion Storage Drawer for Voron Switchwire
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~30 g
- Print time
- ~1.6 h
- Express shipping
- $20
More information

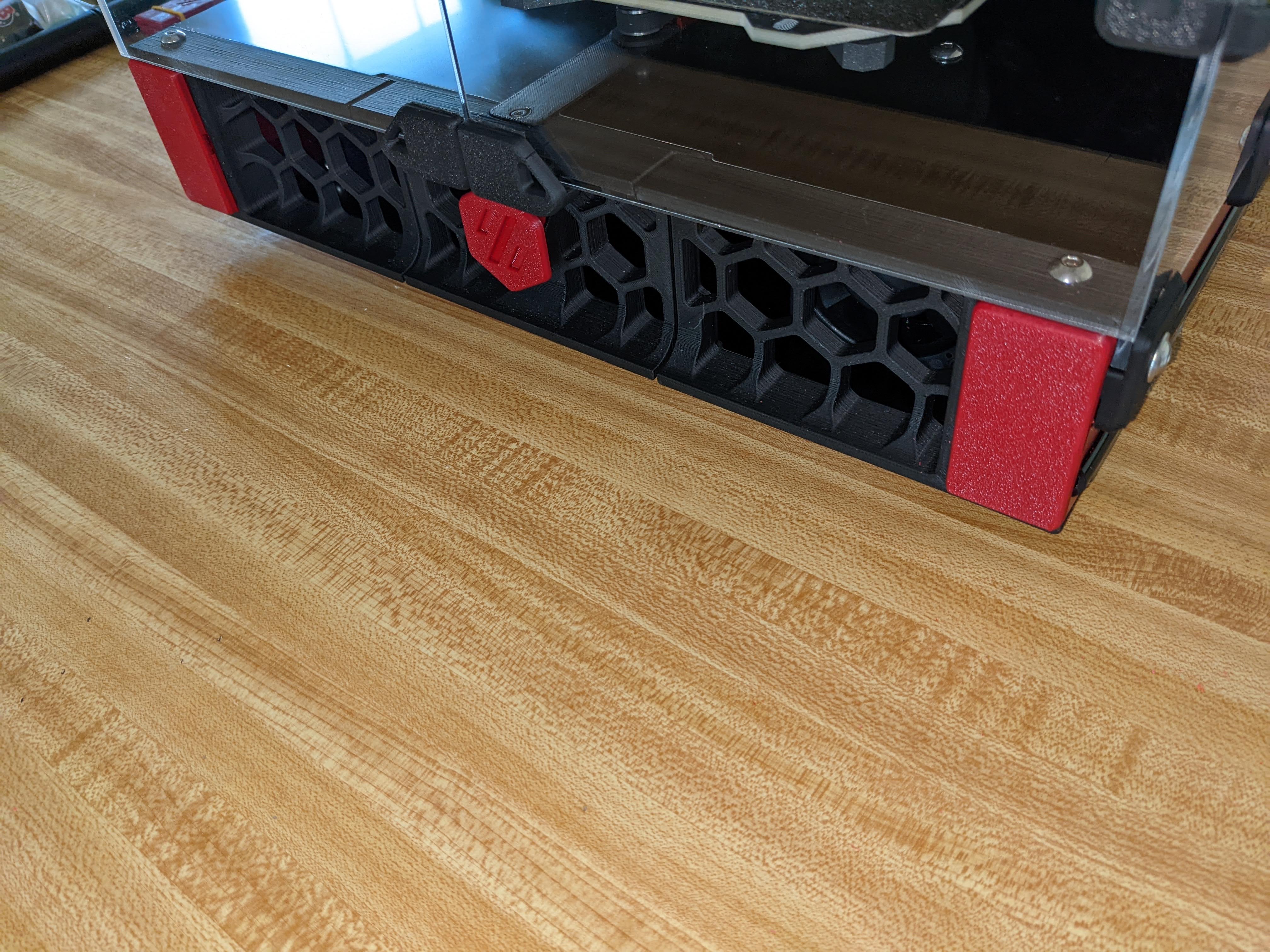

Utilizes empty space in 60x30 extrusions of Voron Switchwire frame to store printer accessories. Modeled to fit into LDO provided extrusions. Both front and back caps can be replaced by drawers.
Two lengths included 150 and 200mm.
Unlike the original caps, these are printed with the outer side on the bed, which makes the appearance consistent with enclosure parts (clips, hinges), which have the same surface, typically with powder coated surface texture.
For a good friction fit adjustment, a slight scaling in X and Y dimensions may be needed depending on print settings. Personally, I also experimented and had success with artificially creating “zits” on the surface by setting seam position to random and lowering seam gap. These “zits” get shaved off by the extrusion when inserting the drawer and the remaining ones create a good fit.
Example in photos are printed in ABS with 0.4mm nozzle size and 0.2mm layer height. No supports needed.
Design and description by thing_3 , licensed CC-BY.
Frequently asked
How long does shipping take?
Extrusion Storage Drawer for Voron Switchwire is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
