Filament Dry Box with Dual Spool Holder and Tube Outlet for IKEA365+
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~58 g
- Print time
- ~3.2 h
- Express shipping
- $20
More information
Model updated! All parts improved!

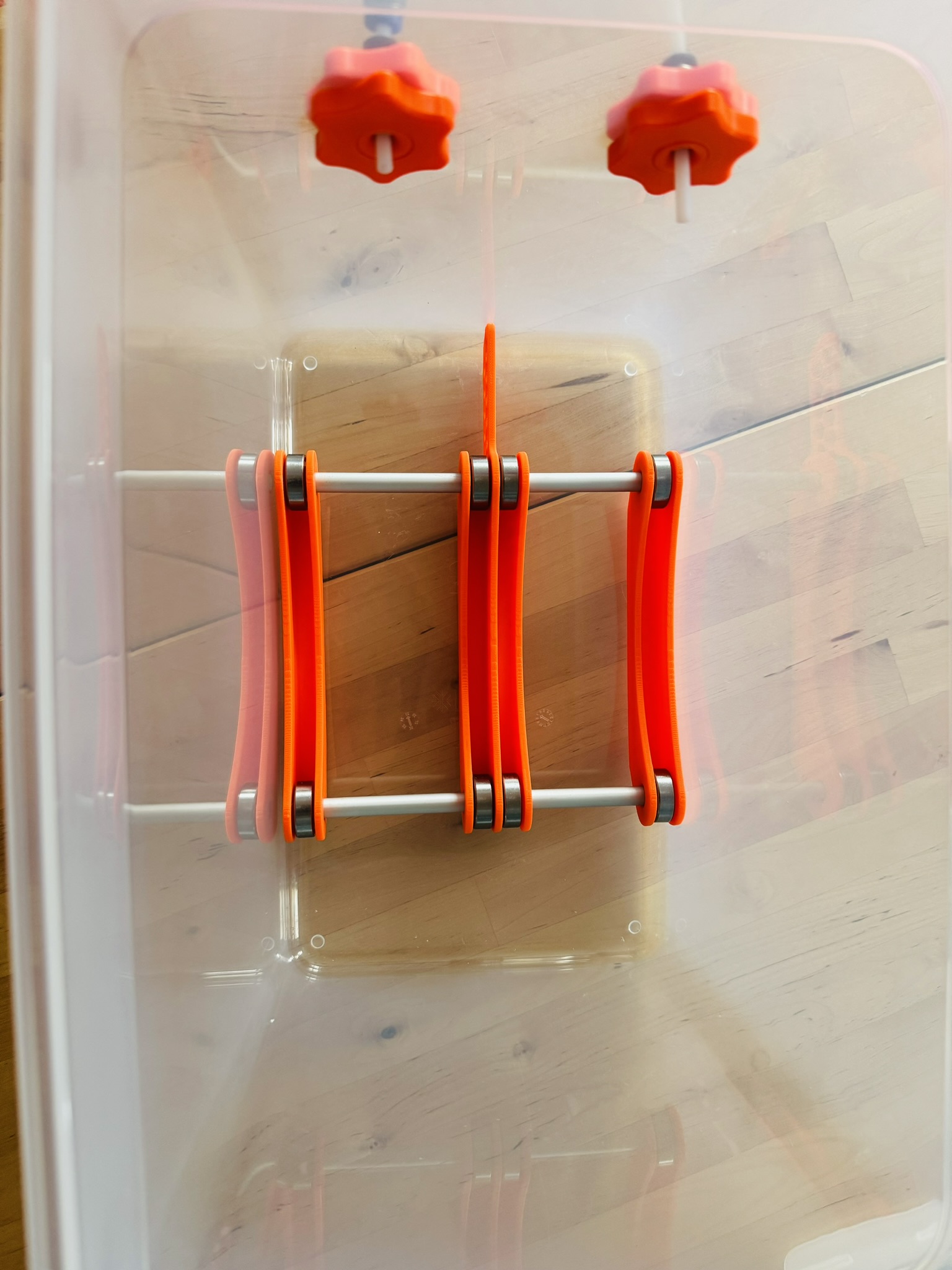

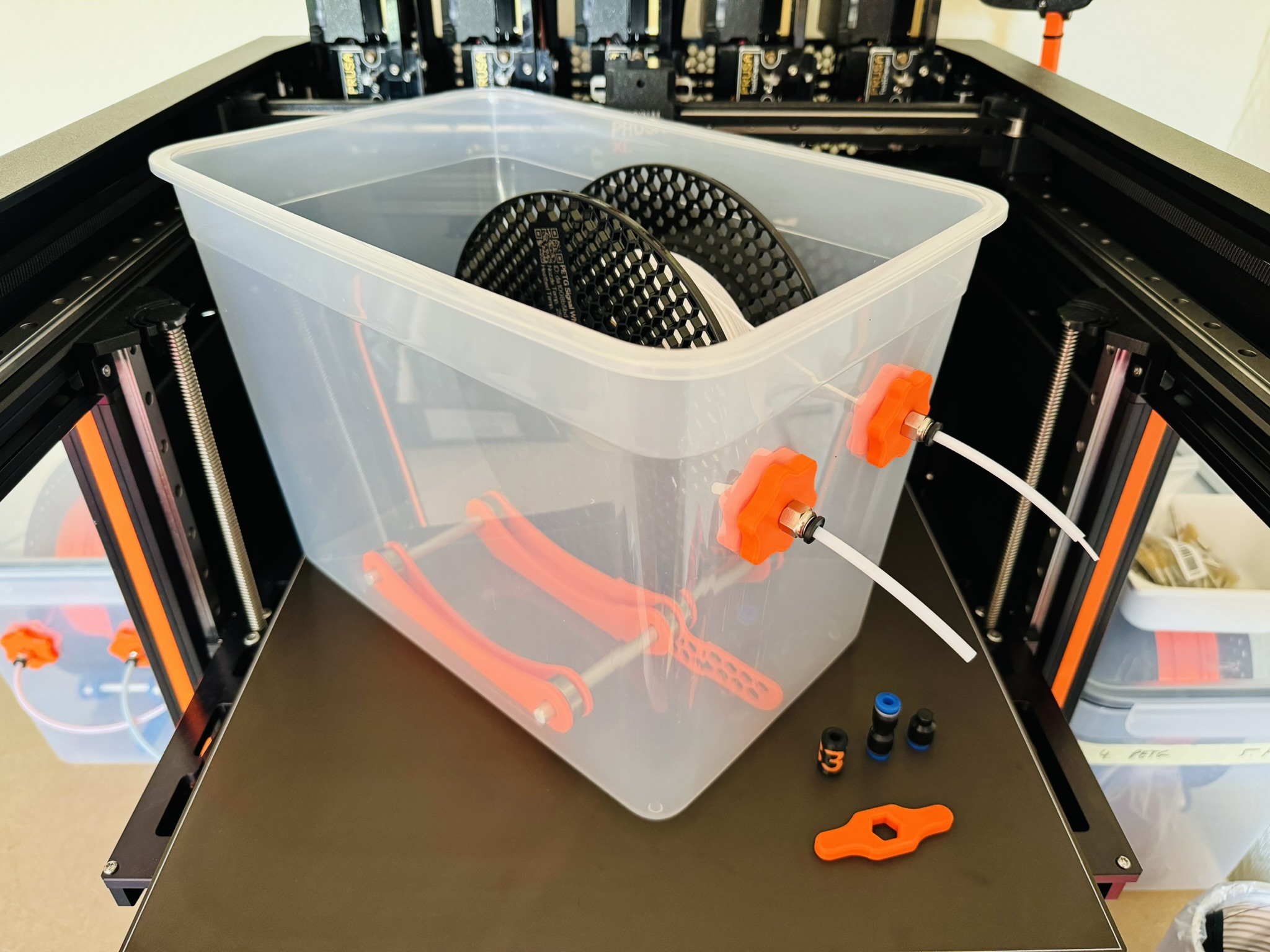

This is a drying box for filament with a spool holder for two spools and matching outlets in an airtight IKEA365+ food container. The filament outlets is optimized for the PC4-M6 fittings and allows the PTFE tube to be pushed all the way into the housing. This results in almost no friction loss inside the outlets compared to many other designs.
The width of the roller itself can be adjusted as required.
Print instructions
Parts
• 1x IKEA 365+ Food container with lid, rectangular/plastic 358 oz/10.6l (PN: 792.767.60 = 103.930.64 Box + 303.930.63 Lid) US Store/DE Store • 2x Pneumatic Fitting PC4-M6 • 8x Ball bearings 608ZZ (8x22x7mm) • 1m PTFE Tube with ID 2.5mm and OD 4mm
Optional Parts
• Pneumatic Sealing/Endcap (4mm) • Pneumatic Pipe Connector/Couping (4mm) • Mini Hygrometer/Thermometer
Assembly

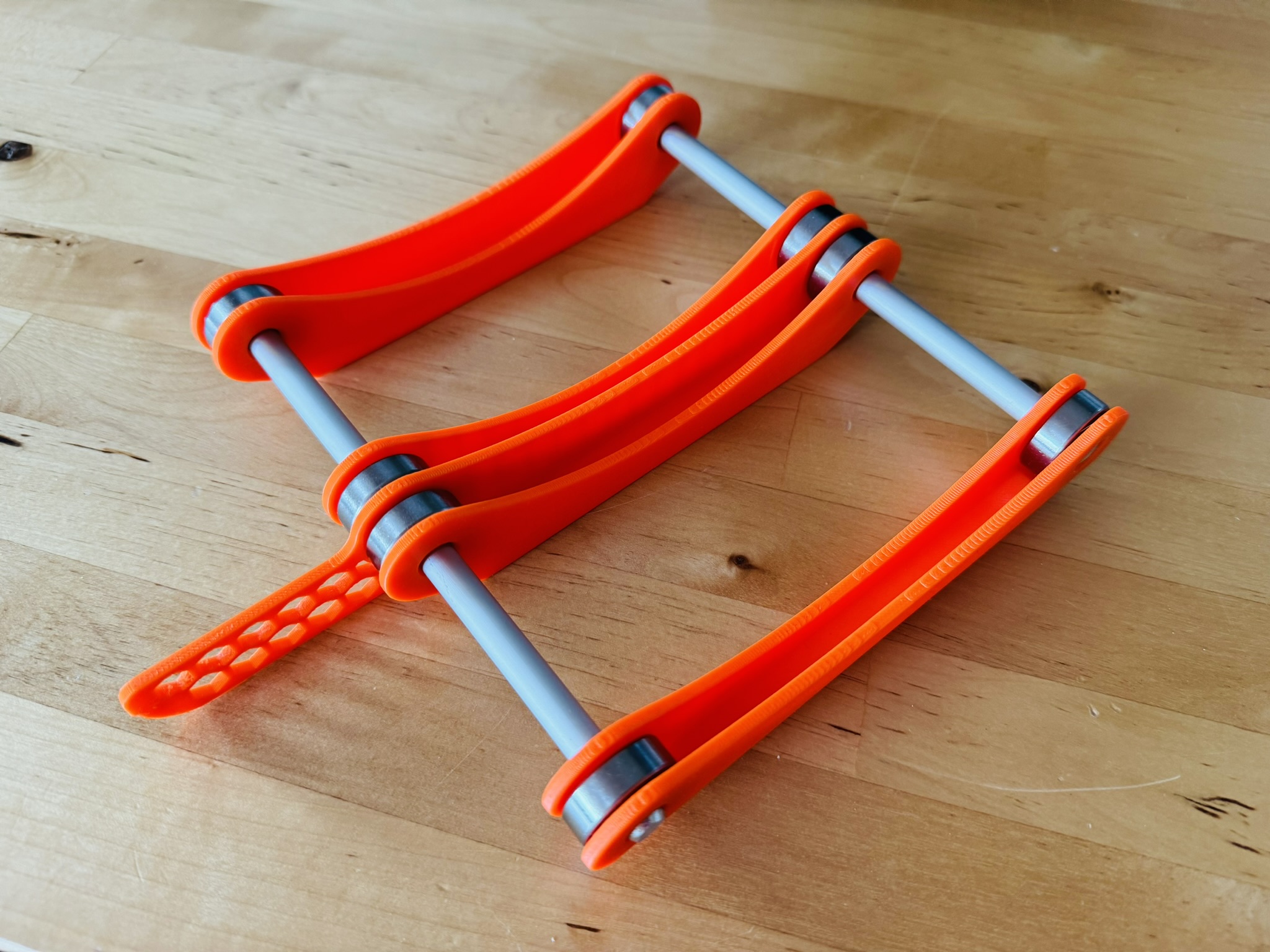

• Print Holder • 1x Holder - Middle • 2x Holder - Side

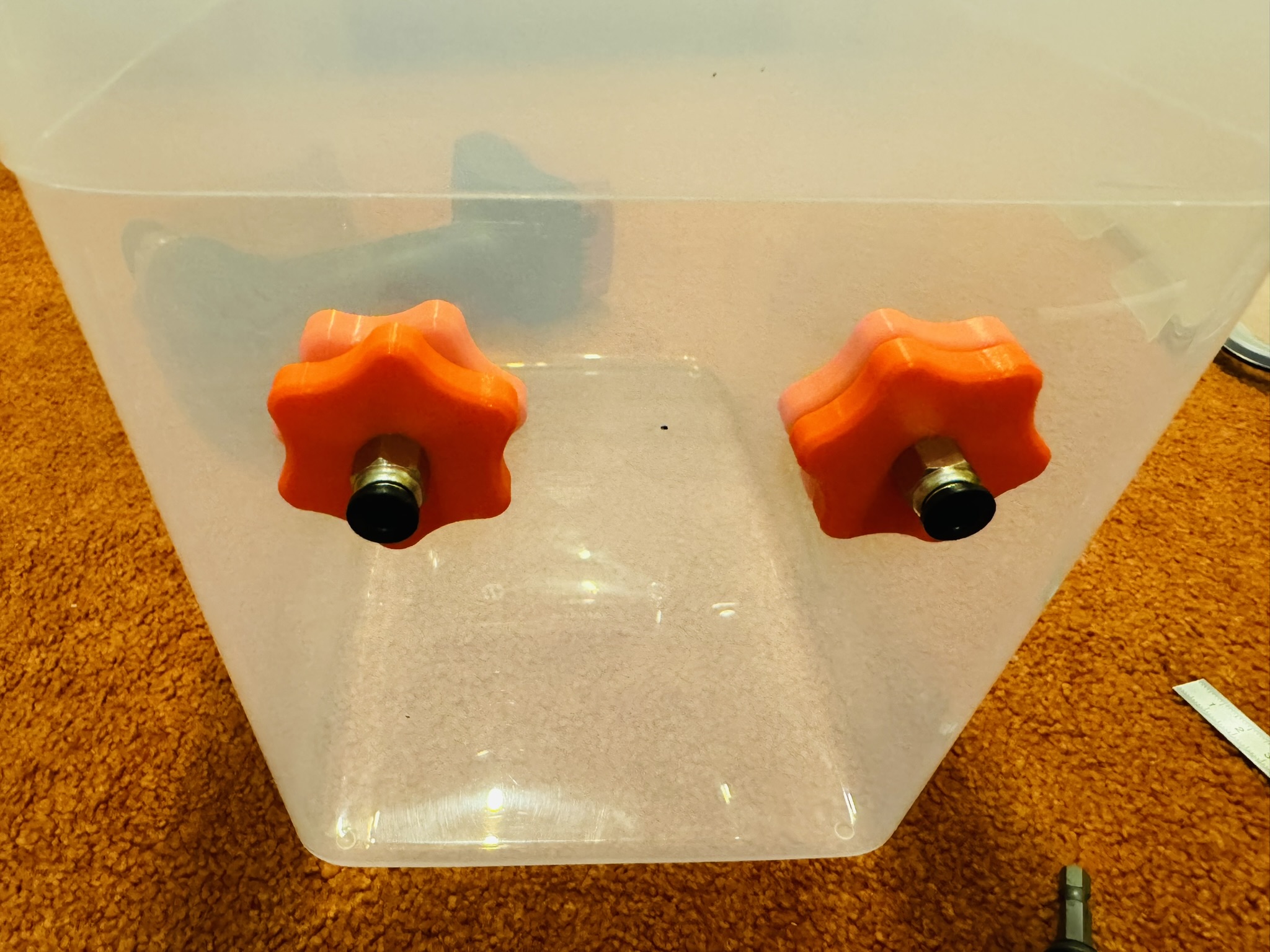

• Print Outlet • 2x Nuts • 2x Bolts (maybe with support in the middle) • (Optional: 10mm Wrench)
• Cut each aluminum rod to approx. 160mm • Drill two 16mm holes in the IKEA box (example position in the pictures) • Assemble parts
Links The links to AliExpress are advertising links. I would be happy if you use this link, but of course you don't have to. I have linked exactly the offers from which I have also bought and was satisfied with the supplier and the goods. The products can of course be bought anywhere.
Design and description by foorschtbar , licensed CC-BY.
More 3D printed spool holdersMore 3D printed filament storage and dry boxes
Frequently asked
How long does shipping take?
Filament Dry Box with Dual Spool Holder and Tube Outlet for IKEA365+ is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
