FlashForge Adventurer 5M Bolted Tool Holder

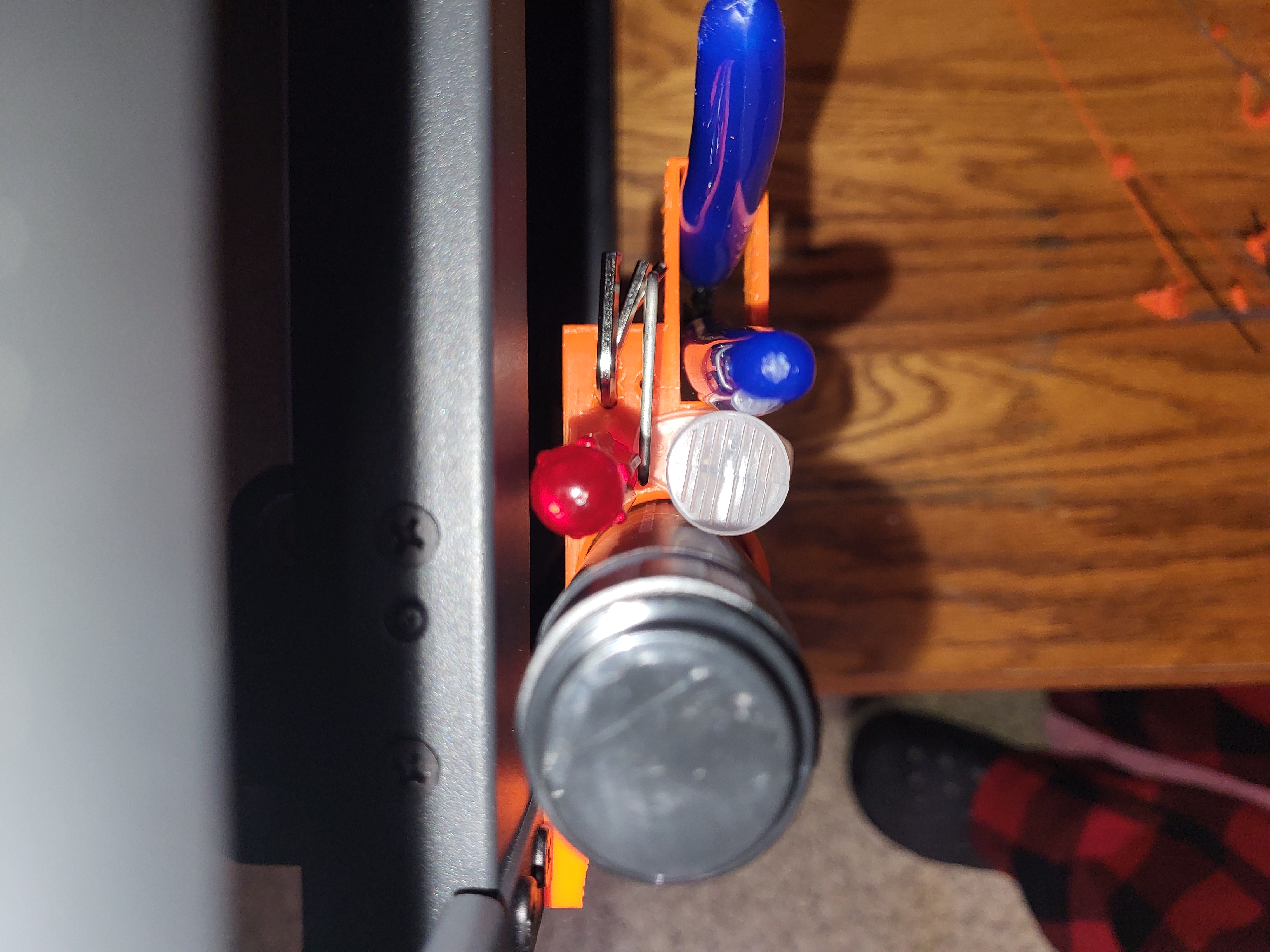

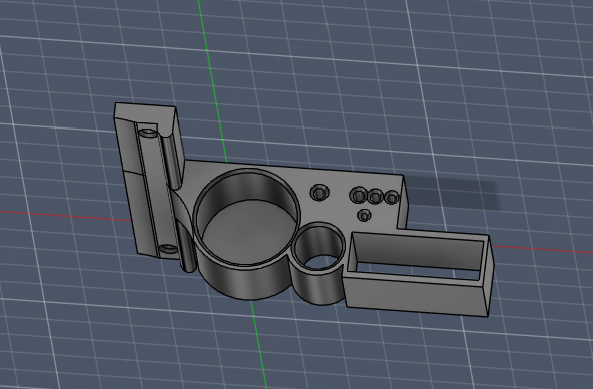

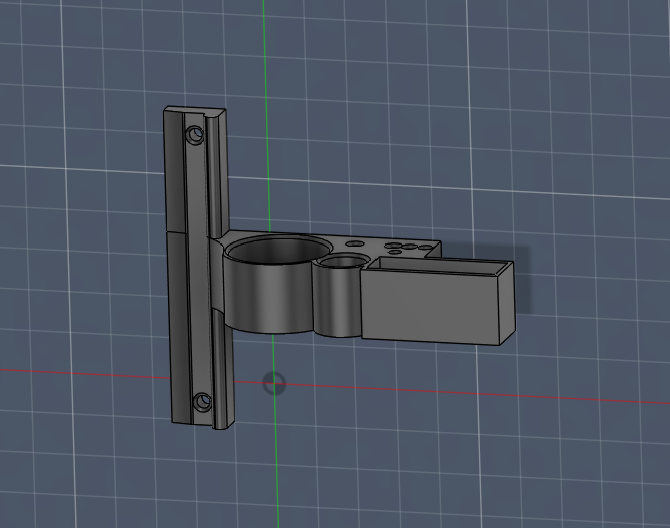

This model was quickly designed to organize the included tools for the Adventurer 5m (not pro). The 4mm mounting holes are placed 83mm apart on center. The model is designed to be mounted with M4 screws to the front right of the machine instead of being clipped over the top of printer body. The 30.5mm hole extrusion with a floor is for the roll on glue. The 14mm hole holds a aftermarket syringe for the included grease. The hole with space around it is for the included screwdriver. The three holes in a line are for the allen keys and the one in front of them is for the clog tool. The larger square holds the included 5M filament snips with lack of detail to fit future aftermarkets in multiple orientations.

This model was printed with support material and a brim.

• 1.6 - 2.0mm layer height

• HS PLA

• 15% grid infill

• 3 - 5 walls

• Customize support material to your preference

• 1 - 2 hour print time

7mm clearance from organizer body and moving printer parts.

This was designed to be as compact as possible to limit organizer vibration.

Two M4 screws are required and they fit very tightly.

Bed glue is unable to fall onto print surface.

Make sure the allen keys are big, medium, small from left to right when looking at the right side of printer. The large and medium allen keys when inserted all the way into the holder lock forward on the small allen key. Without; vibration can rotate the large allen key into Z axis obstruction.

Design and description by SimplyExtruded , licensed CC-BY-SA.
