Floating Shelf Adapter for Honeycomb Storage Wall

Honeycomb wall storage floating shelf adapter to be used with: https://www.printables.com/model/152592-honeycomb-storage-wall

Print settings

Layer height: .2

Perimeter: 4

Infill: 25% I used gyroid

Supports: I drew on supports for the shelf screws (shown in GCODE)

Mounting:

***Each adapter must be securely fastened into a stud, anchor, concrete, wood, etc***

**There are 3 sizes of adapter. It is recommended to use larger adapter near the base.

• With the honeycomb wall fastened to the wall install “Insert empty” of the original design into desired mounting points. • Place the floating shelf adapter in the empty insert and mark the location of the hole. • Remove the adapter and drill the necessary sized hole. • Install anchor if necessary and install floating shelf adapter by screwing into the wall. • Place the shelf on the adapter to check fitment, level, and mark holes. • Drill pilot holes if necessary. • Install all shelf screws.

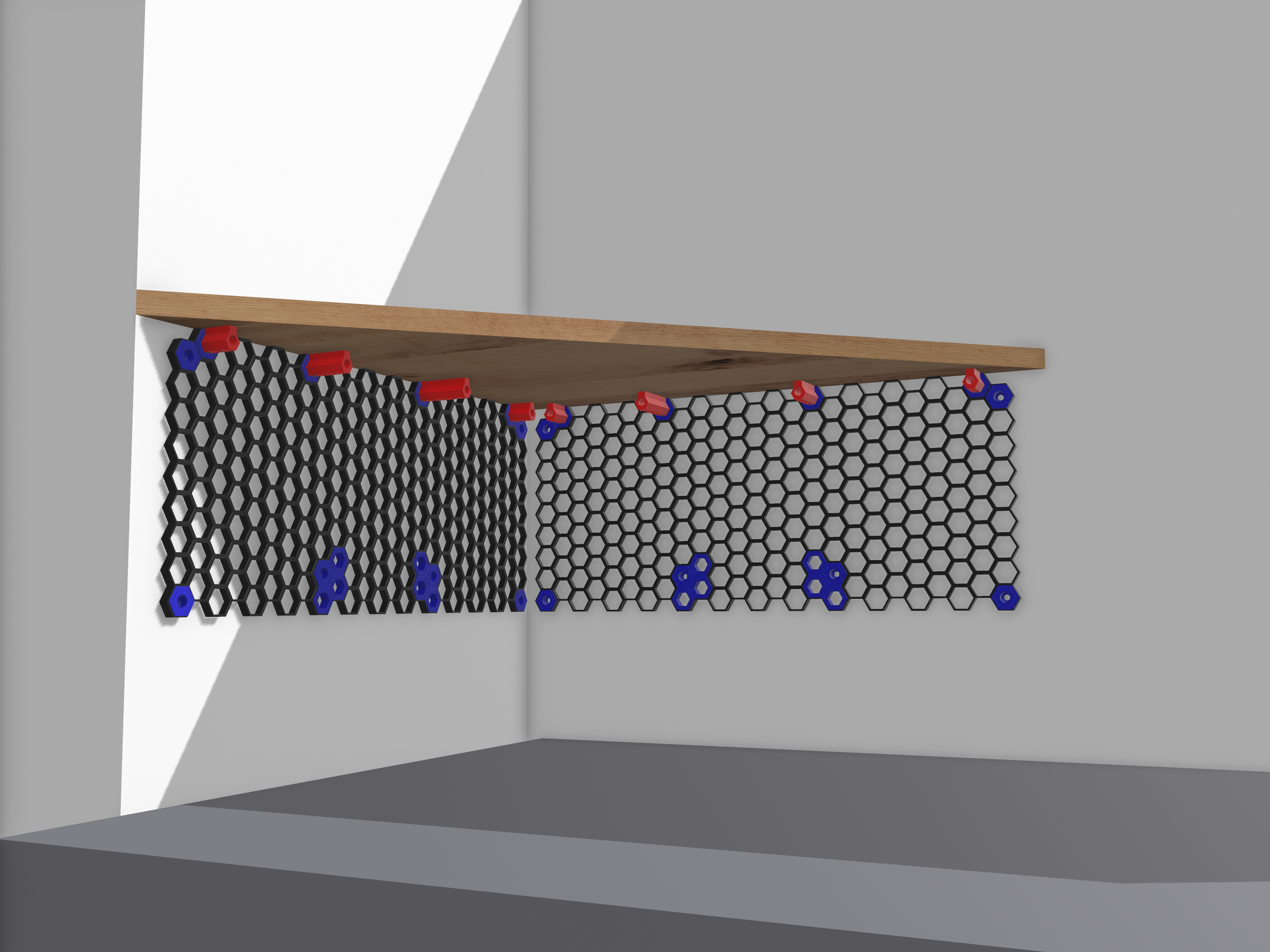

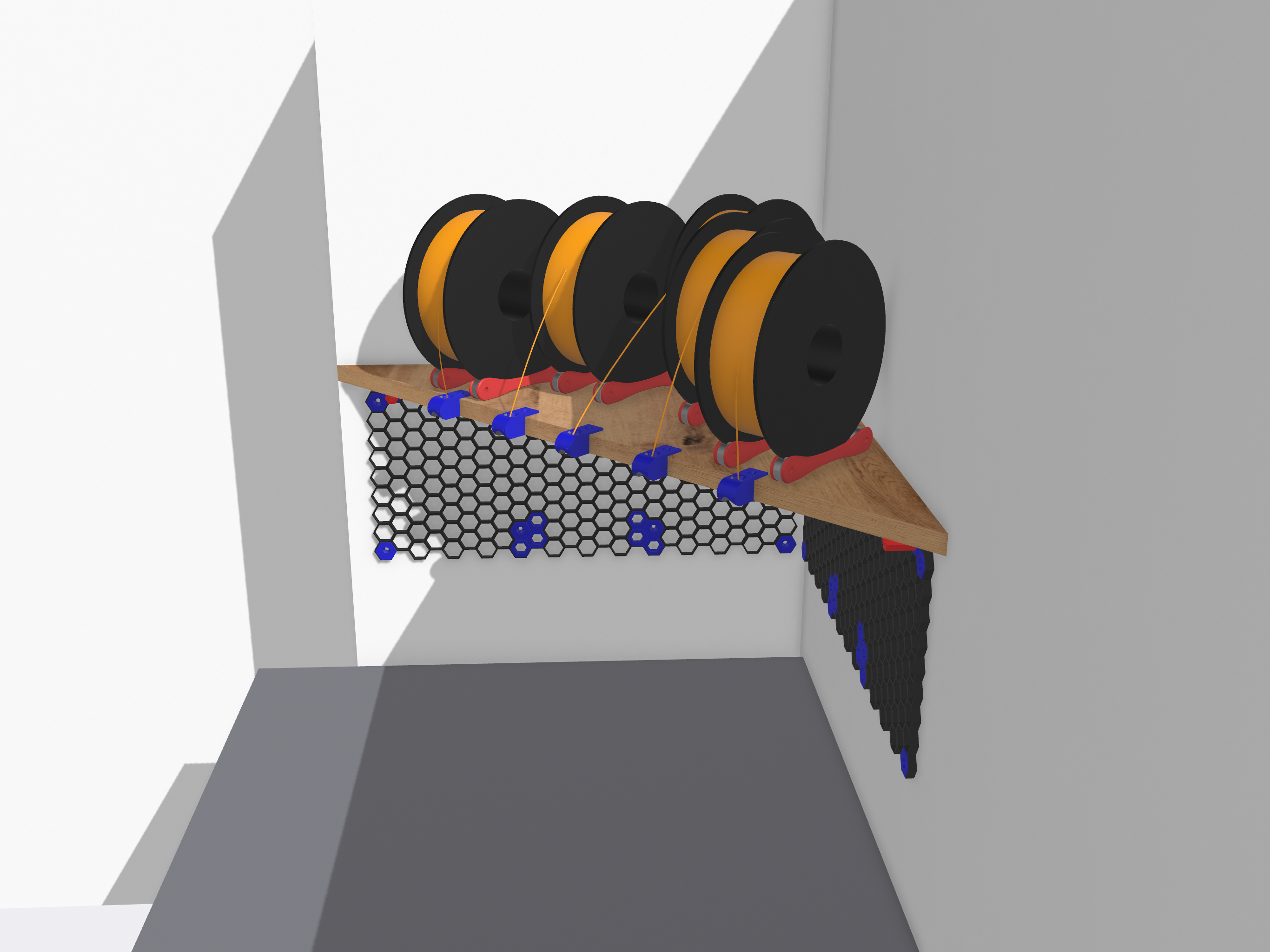

I made a corner shelf to fit above my MK3 to hold 6 filament spools with guides to aid in quicker filament changes.

More pictures to come as finishing touches are done.

***ADDED***

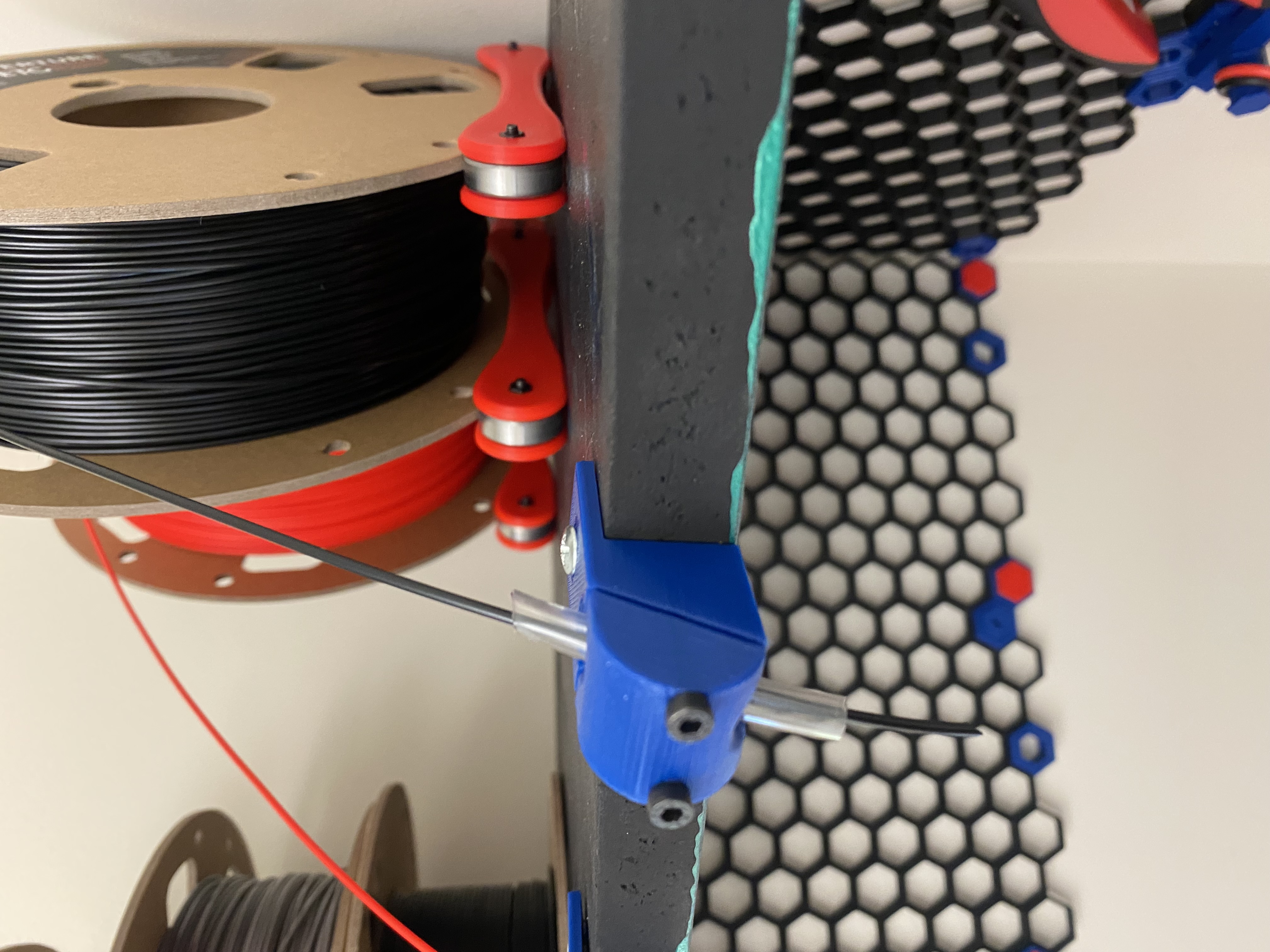

Filament guide design to screw into the shelf for smooth movement from shelf mounted spools.

Design and description by KiloxTango , licensed CC-BY-SA.
