Ford & GM Door & Tailgate Latch Retainer Clip
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~61 g
- Print time
- ~3.4 h
- Express shipping
- $20
More information

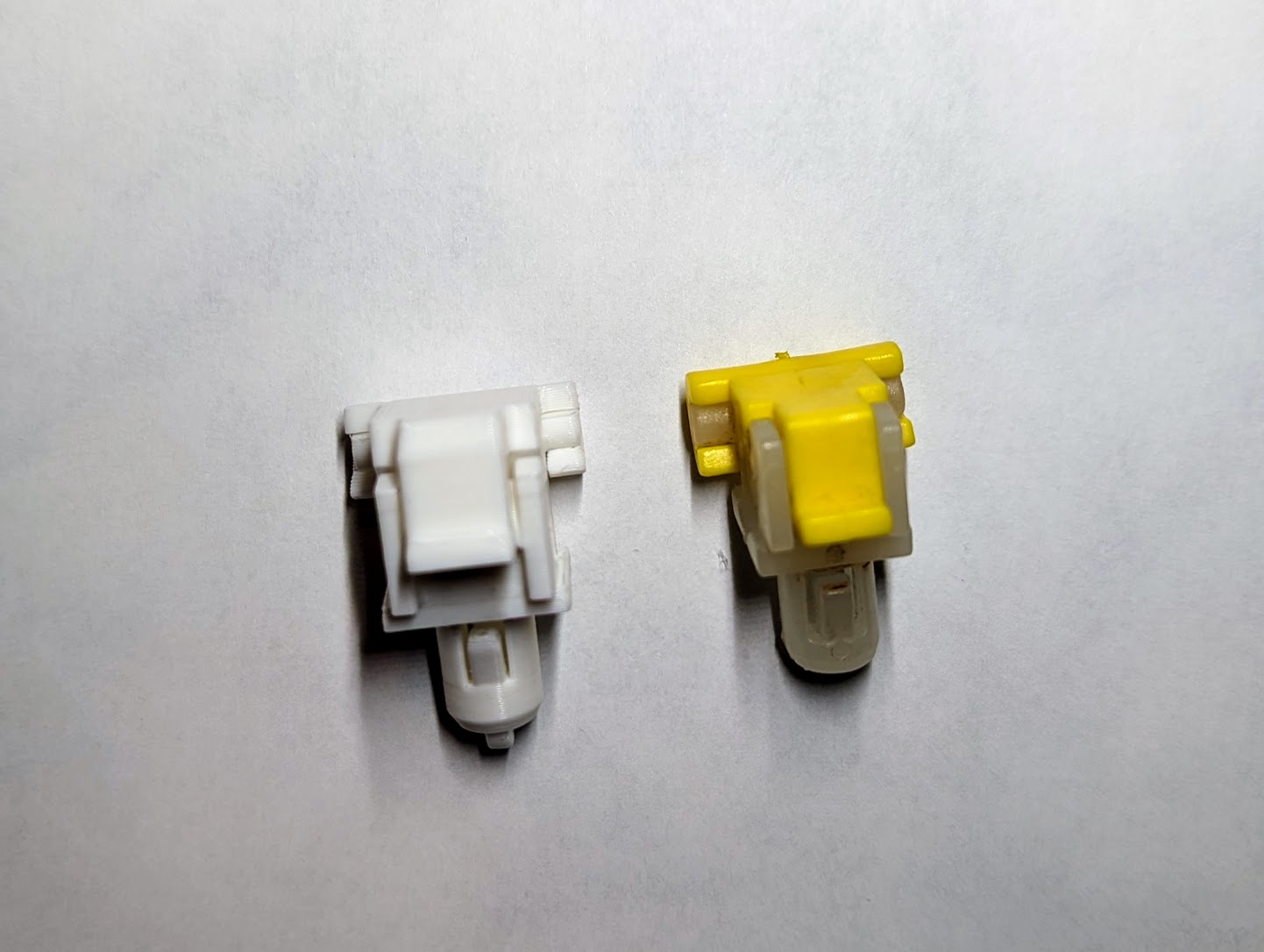

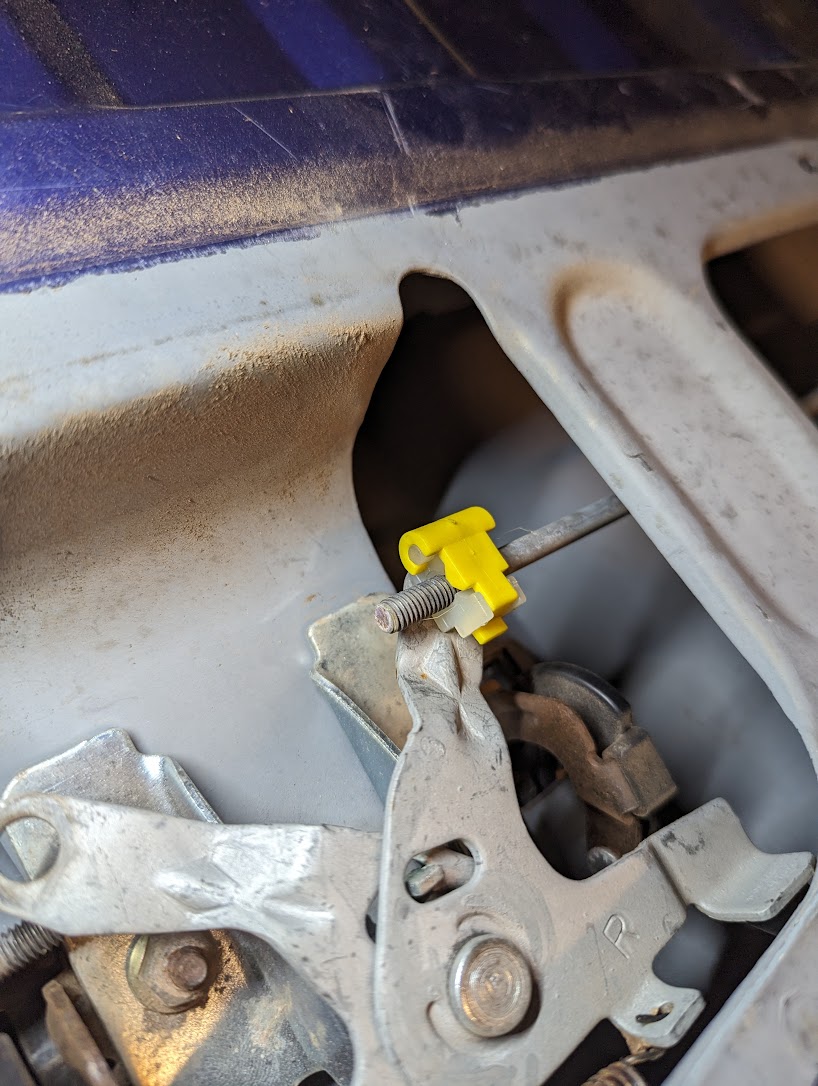

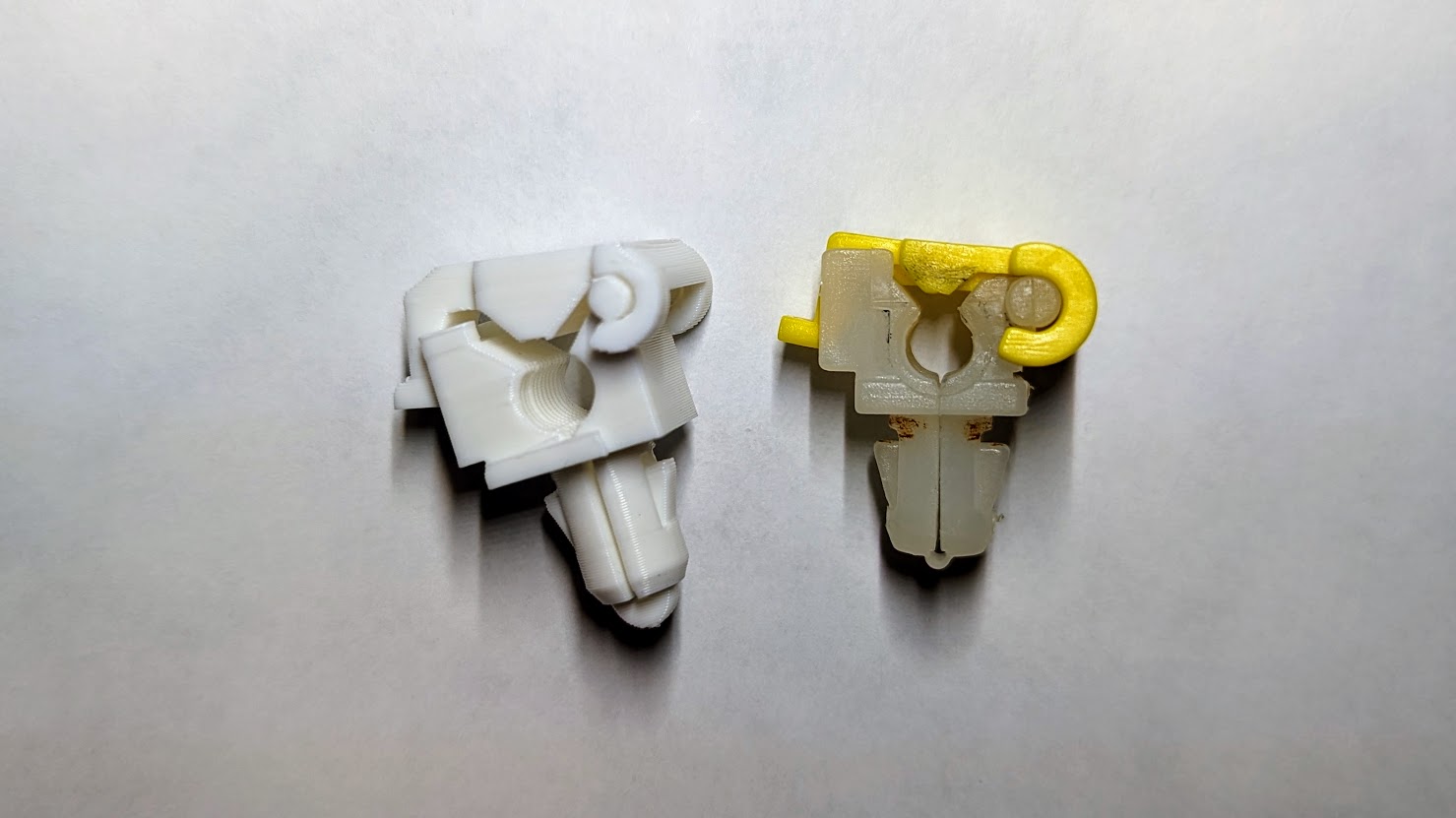

This part was modeled after a Ford E83Z-5421952 B clip in all the critical ways. The endeavor took entirely too long to justify the price savings, but now that it exists, give it a try.
I'll admit it's not as good in fitment nor strength to the original, but it did work for me. I made the first 6 iterations out of PLA to develop the clip, but then switched to Prusa's PC Blend due to the stress the part will see.
As an alternative to printing this, I believe the Dorman 75473 assortment kit has this same clip. It costs $7 currently and is available at all the typical auto parts stores near me in the United States Southwest.
OEM Cross Reference (Not All Verified)
Buick: 16640343 Cadillac: 16640343 Car-Pak: 99-7998 Chevrolet: 16640343 Clip Lizard: 90319658 Crest Midwest: CRX15172 Disco: 9981PK, 9981 Dorman: 703-240 Ford: F65Z-1521952-AA, F7DZ-7421952-AA, F65Z1521952AA, F7DZ7421952A, F7DZ-7421952-A, E83Z-5421952 B GM: 16629990, 16640343, 16675980 GMC: 16640343 Lawson: 29835 Oldsmobile: 16640343 Pontiac: 16640343 Saturn: 16640343 Shop Supplies: FR9981 W&E: 2951 Wurth: 150153212
Design and description by Enginerd , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Ford & GM Door & Tailgate Latch Retainer Clip is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
