Ford IB5 Gear Shifter Bushing | Focus, Fiesta, Fusion, C-Max
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~10 g
- Express shipping
- $20
More information

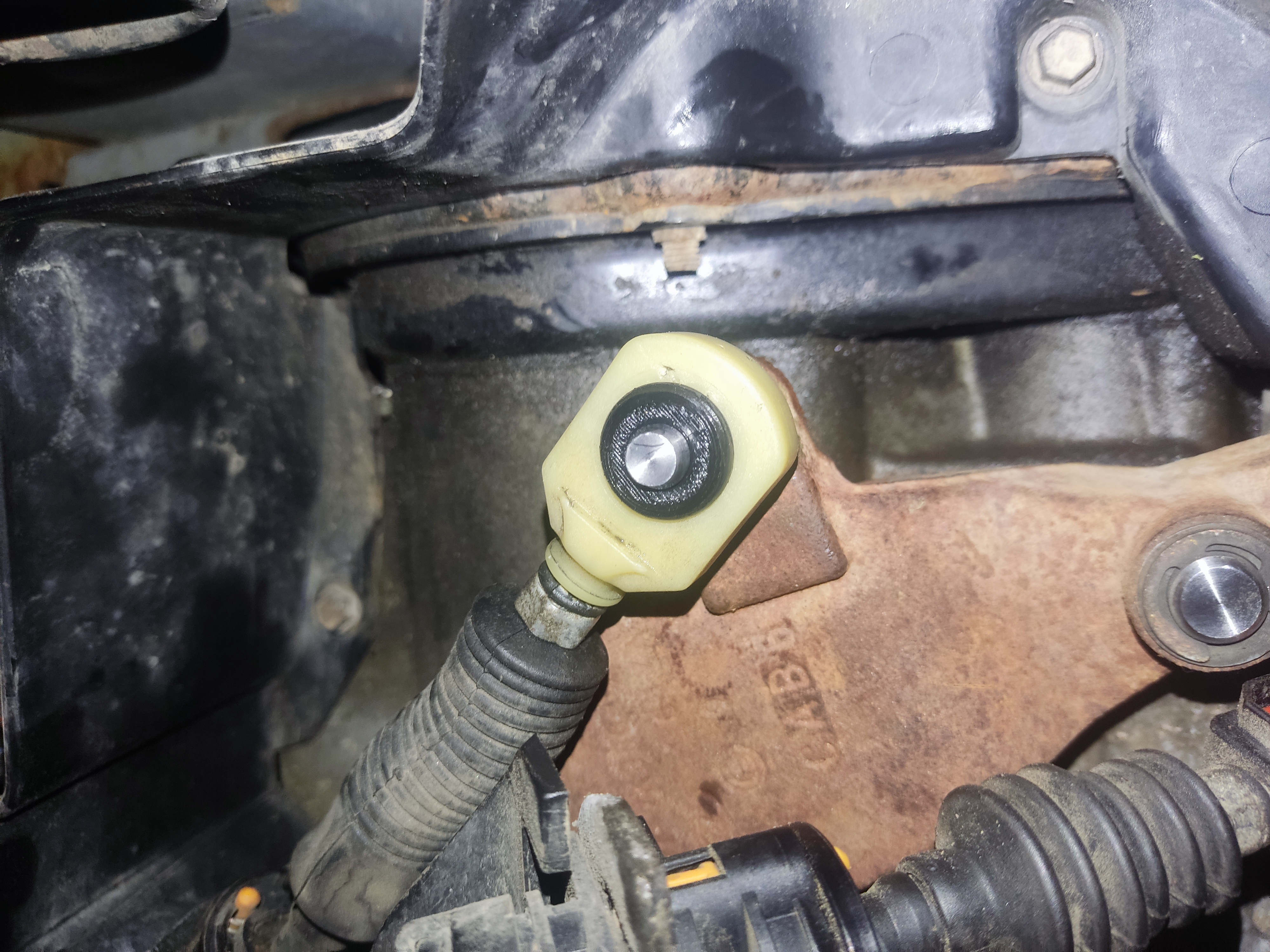

Replacement bushing for the IB5 manual transmission, used in various Ford models such as: Focus, Fiesta, Fusion, C-Max, etc. Designed as a direct replacement for the gear shift selector bushing, which commonly breaks over time and causes excessive play in the shifter.
Installaton note: Lubricate with silicone grease (dielectric grease) before installation.
Print settings
• Material: TPU (95A) • Infill: 20% Gyroid • Walls: 3 perimeters • Layer Height: 0.12mm (0.2mm should also work)
I've been using this bushing for over a year with no issues.
Design and description by ForxAudy , licensed CC-BY.
Frequently asked
How long does shipping take?
Ford IB5 Gear Shifter Bushing | Focus, Fiesta, Fusion, C-Max is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
