Fully 3D Printed Bike Chain Gear Fidget Toy/Spinner
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~85 g
- Print time
- ~4.7 h
- Express shipping
- $20
More information
This is my take on a fidget toy I saw online. It is easy to print, even with bad printers, requires no support and works without lubrication.
Parts list:
• 15 chain links (can be printed together or individually) • A 10-tooth sprocket with rotating bearing (print-in-place) • A 7-tooth sprocket with rotating bearing (print-in-place) • 2 chain spinner arms • 2 large caps • 2 small caps
Print instructions
Every part should be printed without supports.
There are TWO different clearances for the sprockets, 0.225 in and 0.15 inches. The large clearance should work for all printers.
The arms have a slight raised edges around the holes on one side so make sure that it is printed in the correct orientation.
Post- Processing and Assembly:
Note: The chains may require some light sanding to get it to move freely

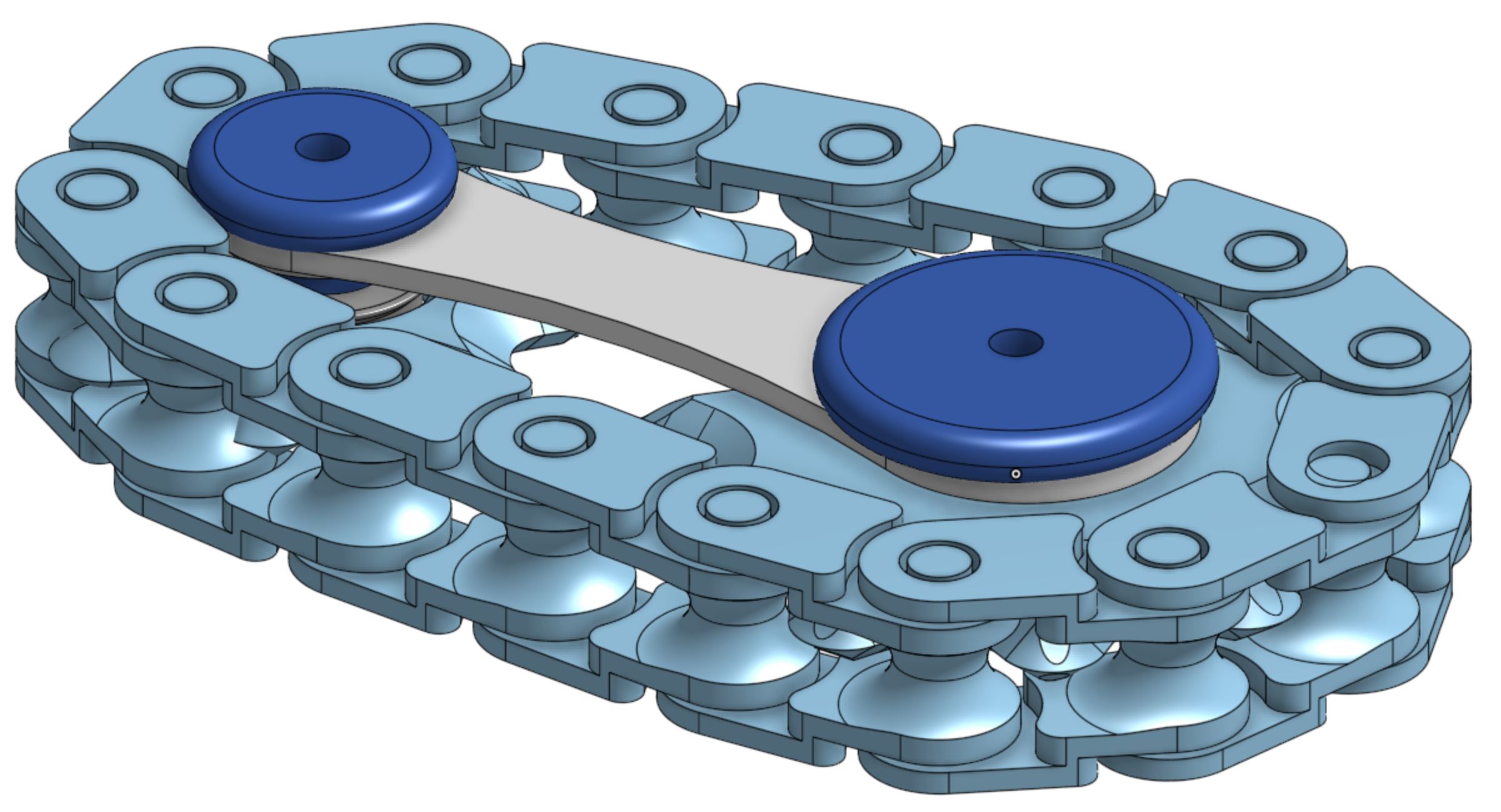

Assemble the sprockets first. Line up the arms with the corresponding sprockets. Use the Caps to snap the pieces together. Then wrap the chain around and connect the ends together.
Other Notes:
• It can be printed at .28mm layer height • I have had success down to 85% scale
Design and description by Joshua Jones , licensed CC-BY.
Frequently asked
How long does shipping take?
Fully 3D Printed Bike Chain Gear Fidget Toy/Spinner is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
