GeeekPi 10 in rack shelf
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~38 g
- Print time
- ~2.1 h
- Express shipping
- $20
More information
Shelf v1 is 4mm thick, which may have been too thick. Shelf v2 is 2mm thick, and made the mounting holes slightly smaller to allow more material for structural integrity

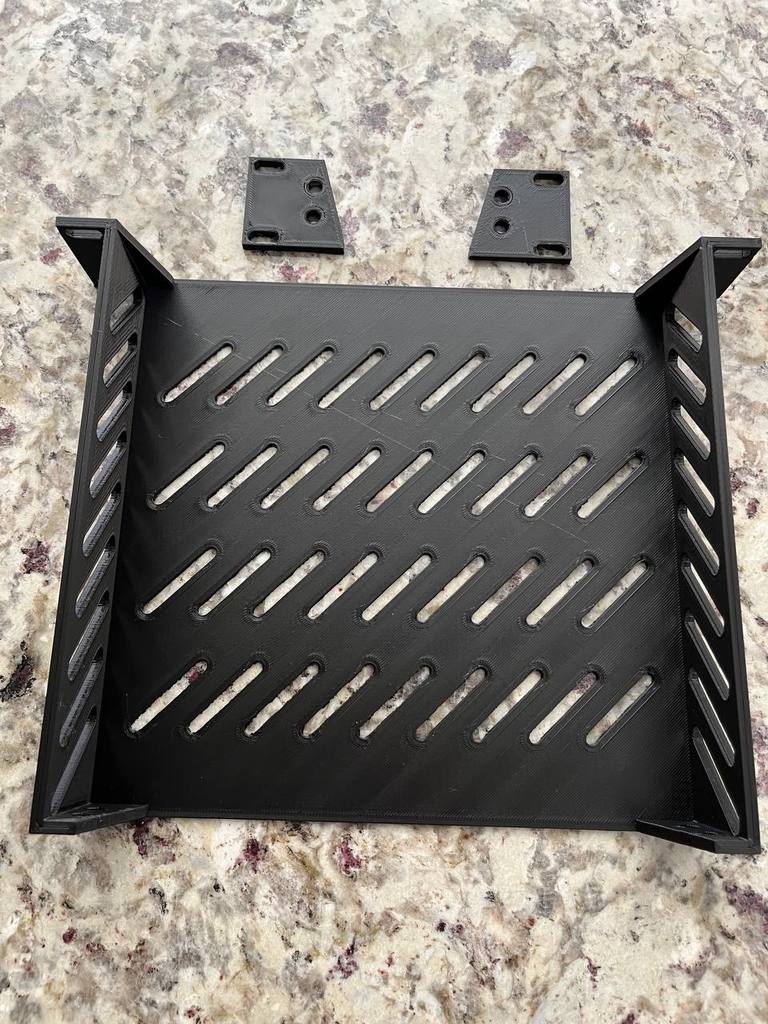

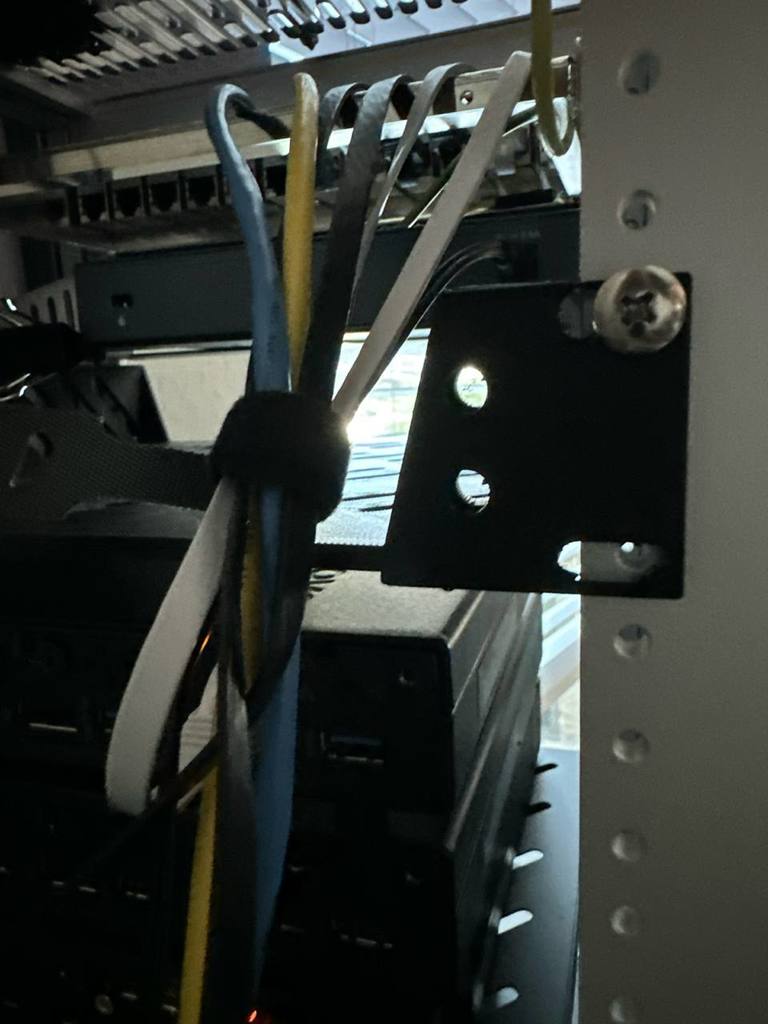

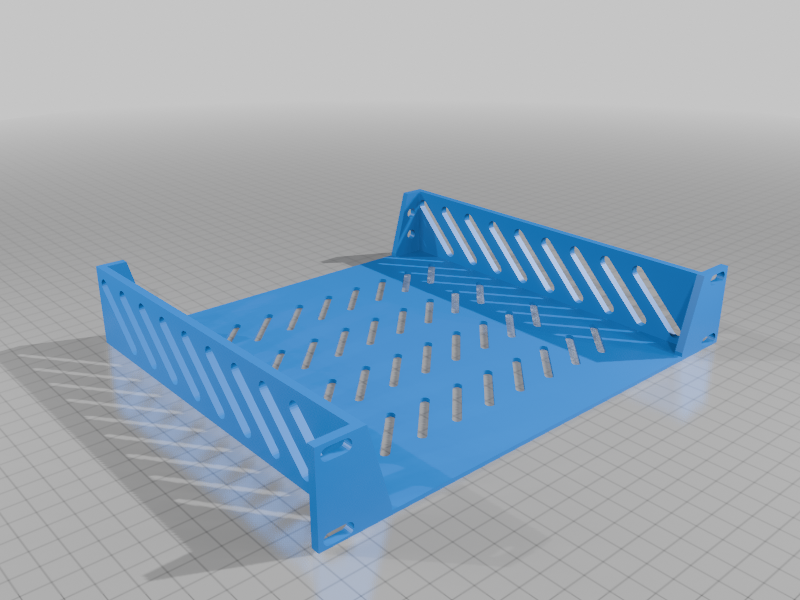

Both are pictured in the rack. I included the F3D files if you want to modify.
Bracket v1 matches the hole setup of shelf v1 Bracket v2 matches the hole setup of shelf v2
4x M6 screws, washers, & lock nuts are needed to attach the bracket to the rear of the rack and shelf.
Print Settings
Printer Brand:
ELEGOO
Printer: ELEGOO NEPTUNE 4 Max
**Rafts:**
No
Supports: No
**Resolution:**
0.2mm layer height with 0.4mm nozzle
Infill: 15%
**Filament:** Hatchbox PLA Black
Notes
4 walls alternating walls enabled Inner/Outer/Inner 5 bottom layers 5 top layers 15% infill with gyroid (base ends up being solid at 2mm with 0.2mm layer height)
How I Designed This ===================
I measured the rack itself to design the dimensions of the shelf.
Category: Electronics
Design and description by Cougar694u , licensed CC-BY-SA.
