GEN2 Steel Sheet Holder V2 For Prusa and Bambu Lab

JERRARI3D.com

Modular solutions for storing steel sheets for the PRUSA i3 (MK2.5 and MK3) and Bambu Labs (X1 and P1P)

Unlike my original steel sheet holder the GEN2 Steel Sheet Holder V2 does not require a backer mounted on the underside of the table directly behind it, this allows you to install it under any other GEN2 storage drawers and trays. It includes optional magnet slots on the redesigned back piece to pull the drawers into place.

NEW: If you have a Prusa Mini, Creality Ender 3, or any small to mid size printer with removable steel sheets, then the GEN2 Adjustable Steel Sheet Holder is what you want.

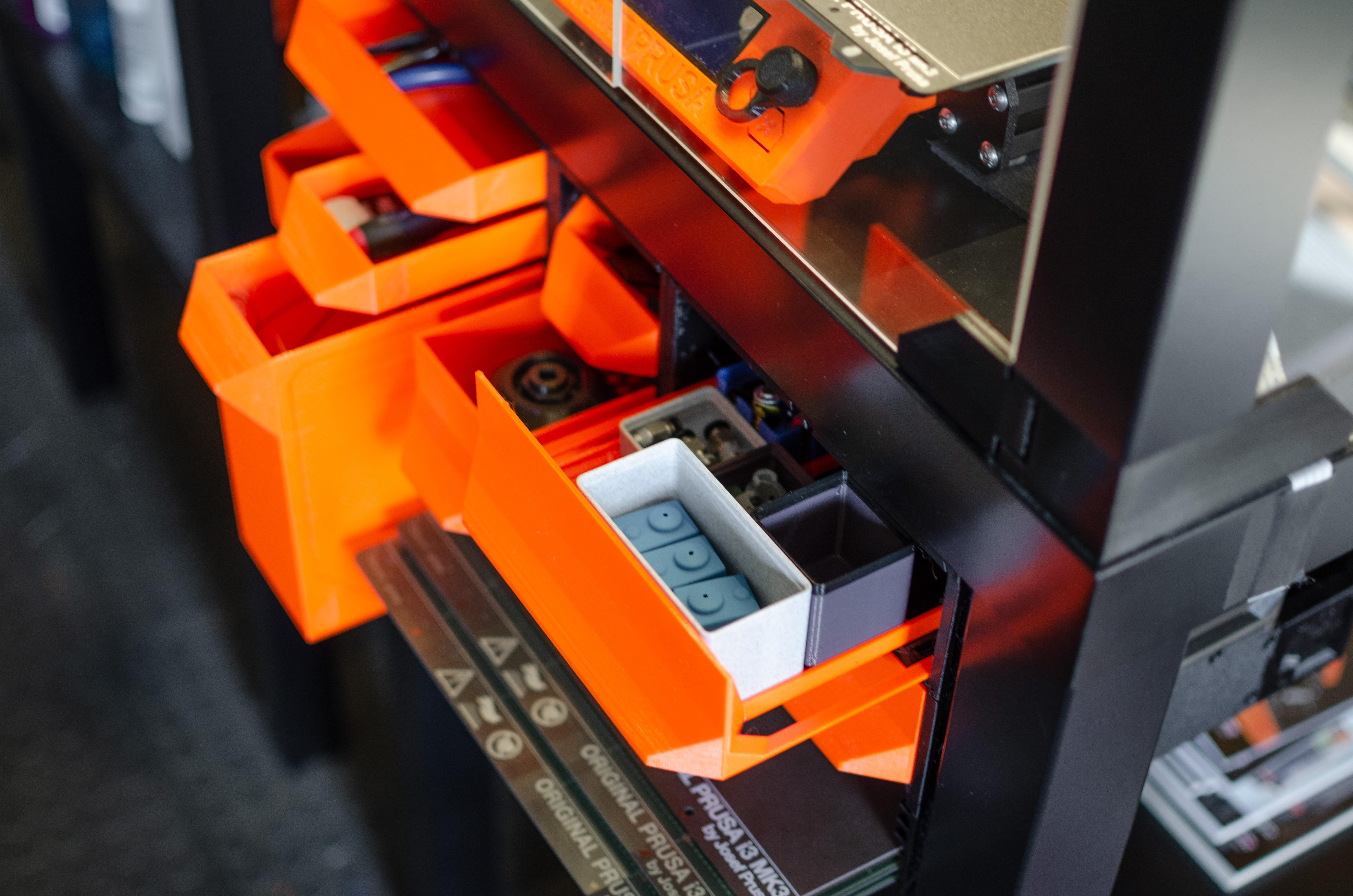

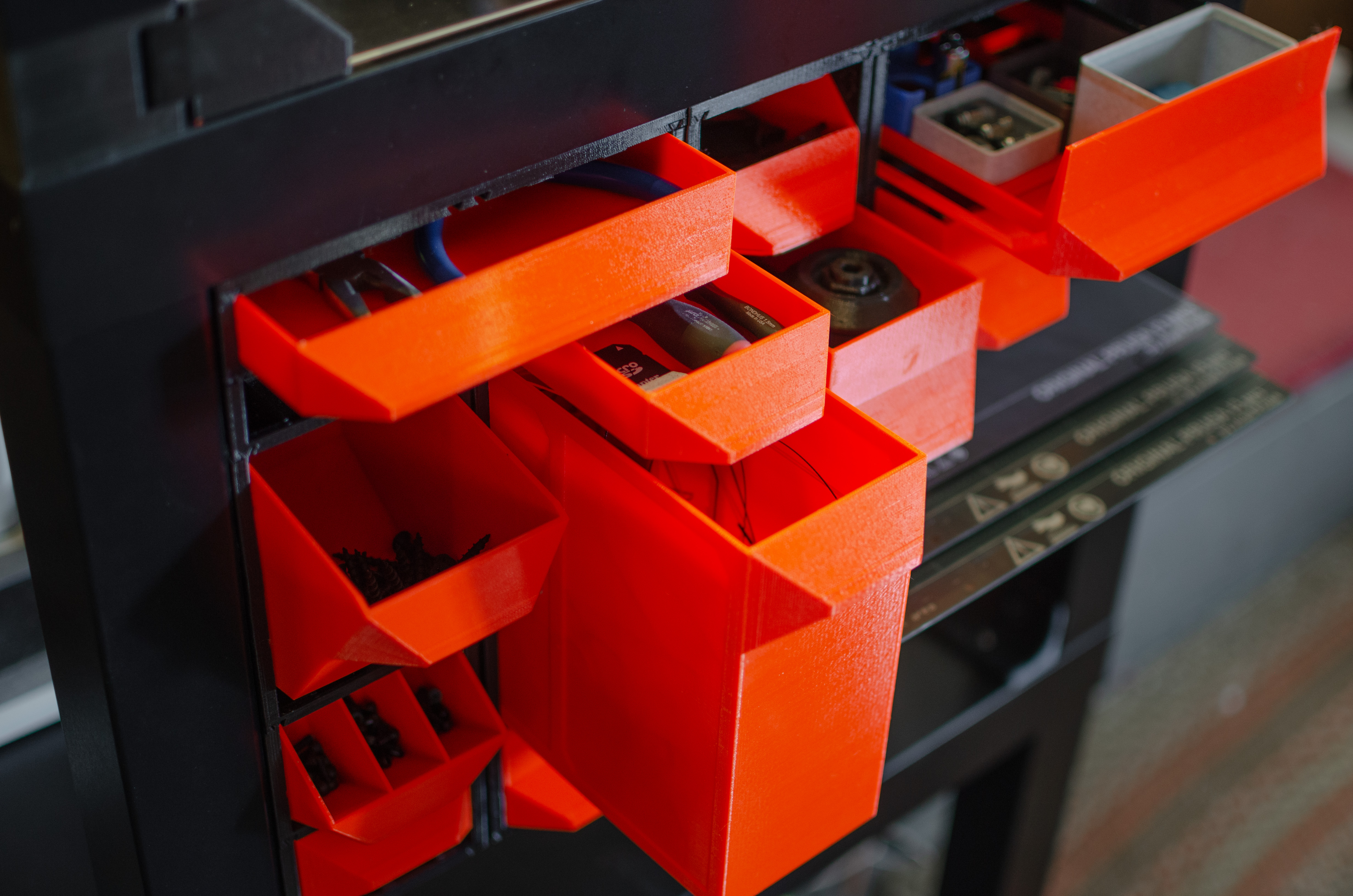

Originally designed for the “Original Prusa i3 MK3 ENCLOSURE…", The Lack drawers have found their way on to many desks, workbenches, and other tables as well. Now with the Gen2's rail design you can quickly swap the storage units between work areas.

Features

• Gen2 rails allowing quick and easier swap-ability and combinations of many Gen2 Storage System designs. • Steel sheet holder is now one unit and can be installed directly to the GEN2 Rails or placed under any combination of full sized GEN2 drawers or trays.

HARDWARE • Screwdriver • Countersunk woodscrews: (Metric: 4x25mm to 4x16mm) or (SAE: #6 or #8 up to 1" long) • Drill bit that is smaller diameter than the wood screws • Pen, Marker, or Scratch Awl • Magnets (Optional): 10x5x2mm or 10x2mm • M3 nuts • M3 Screws M3x8 - M3x10

Updates

Bambu Labs X1 and P1P

Models now created and added to support these printers!

Thank you khrillian for the measurments

Updated: V1.1 corrected for proper sheet width

INSTRUCTIONS

*Note: Supported Printer Examples are for size reference only. These models are designed Specifically for the Prusa i3 MK2.5/MK3 and Bambu Labs X1/P1P.

This video covers the full assembly and installation of the GEN2 Steel Sheet Holder V2

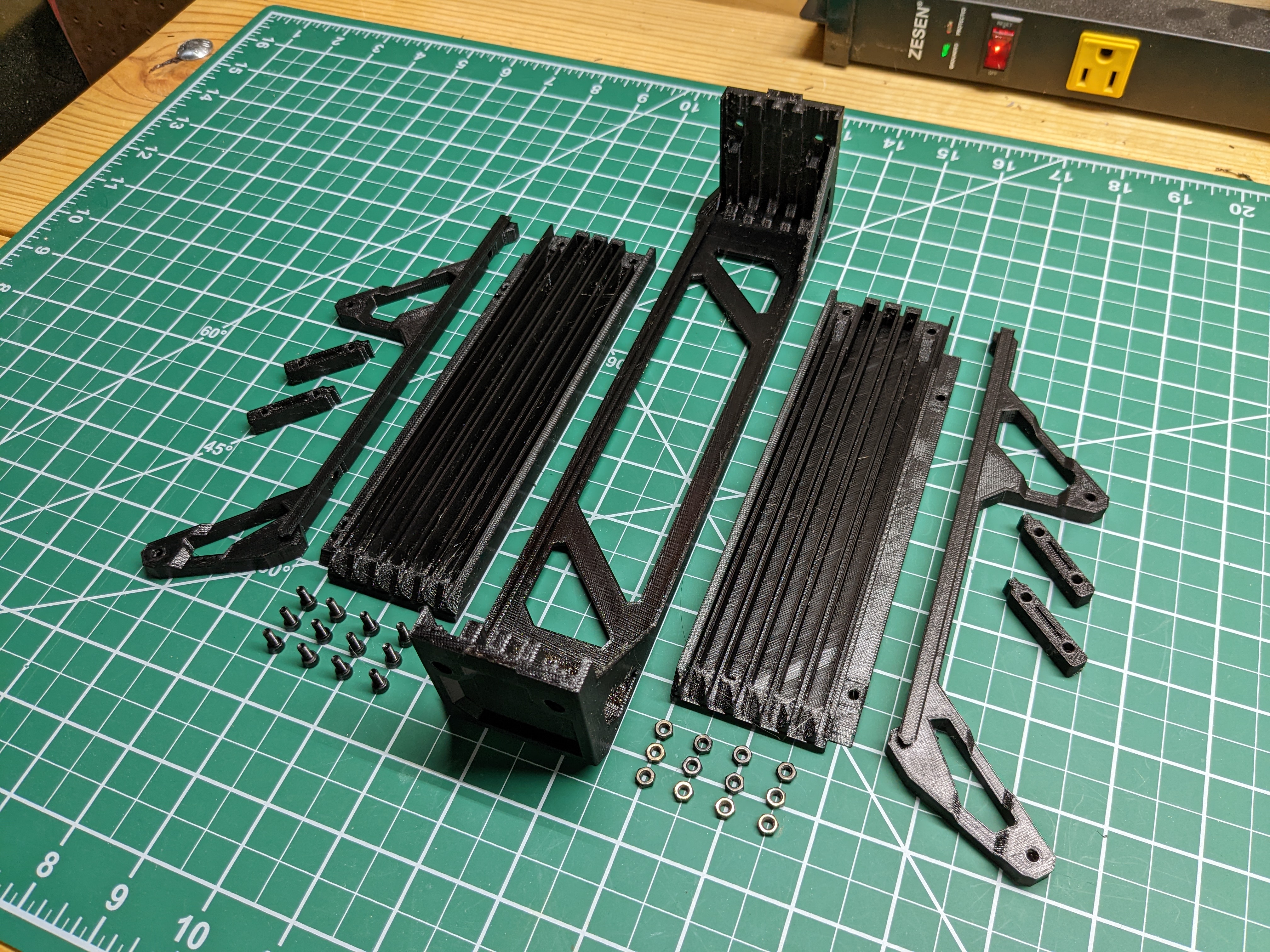

• The Gen2 Steel Sheet Holder requires 3 rail units. The easiest way to add 3 units is by printing a Gen2 Rail Double Rail and a Gen2 Rail Single.

Gen 2 Rail Single

Download Here

Gen 2 Rail Double

Download Here

• Use templates to mark the hole locations on the surface you are mounting the desired sized rail to.

• Drill out marked locations using a drill bit smaller than the diameter of the wood screw you will be using.

• Prep the rail for installation by installing M3 nuts into the hexagonal holes. You can use a M3 screw to position and tighten the nut in place.

• Install the rail using wood screws, use at least 4 screws on the outer corners to mount the single rail and and 6 to mount the double rail. (extra screw holes are available if you plan to stack more than 2 rows of drawers or contents of heavier than normal weight.)

RECOMMENDED PRINT SETTINGS

Filament: PLA (PETG or ABS for heavier duty storage) Nozzle Size: 0.4mm Print Height: 0.2-0.35mm Infill: 10-20%

GEN2 COMPATIBLE PRINTS

Gen2 Adjustable Steel Sheet Holder

Download HERE

Gen2 Open Bin Lack Drawers

Download HERE

Gen2 Gridfinity Drawers

Download HERE

Gen2 Parts Drawers

Download HERE

Gen2 Slim Lack Enclosure Drawers

Download HERE

Gen2 Modular Lack Enclosure Drawers

Download HERE

Gen2 Modular Tilt Drawers

Download HERE

Gen2 Large Modular Tilt Drawers

Download HERE

Gen2 Large Enclosure Bins

Download HERE

PLAN YOUR BUILD IN SECONDS

Not sure which parts fit together? The free GEN2 Planner lets you design your build in 3D, checks every part against your printer size, and hands you the exact print list · no guesswork, no wrong sizes: gen2planner.jerrari3d.com

SUPPORT GEN2 AND UNLOCK MORE

The GEN2 system is free and always will be. If it saves you time or space, you can support the project by joining the Jerrari Club (CAD and STEP files, early access, premium drops) or picking up a premium faceplate collection · it means a lot and directly fuels new designs.

• Jerrari Club: Join here • Premium faceplates: Decor Faceplate Collections

Design and description by Jerrari , licensed CC-BY.
