Gridfinity Carry Tray

Model Description

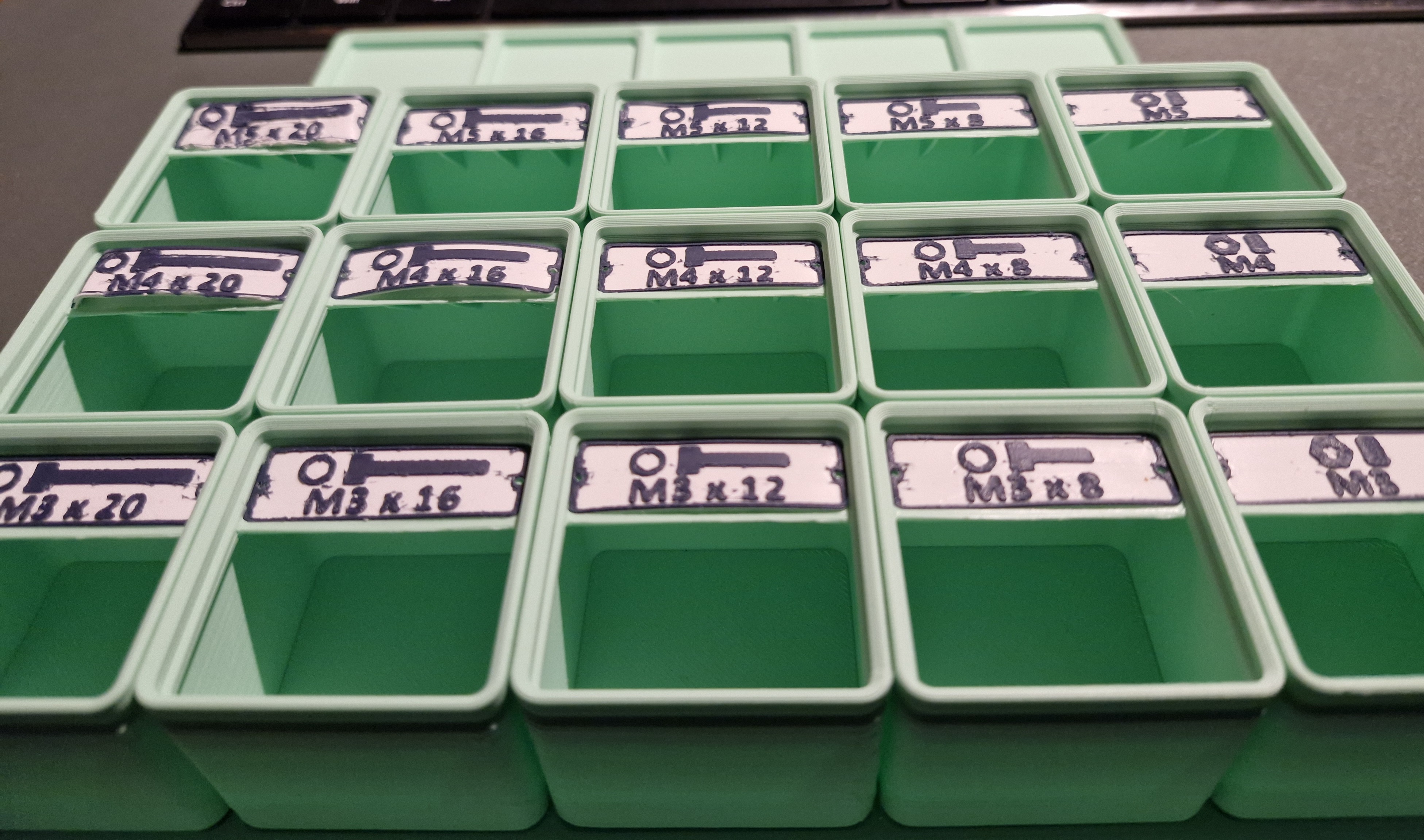

• Tray Dimensions: • Overall Size: The tray is large enough to accommodate 25 bins in a 5x5 grid. Assuming each bin is a standard size, the tray's dimensions would be a multiple of the bin dimensions. • Height: The tray height is sufficient to secure the bins, with a slight lip to keep them from sliding out.

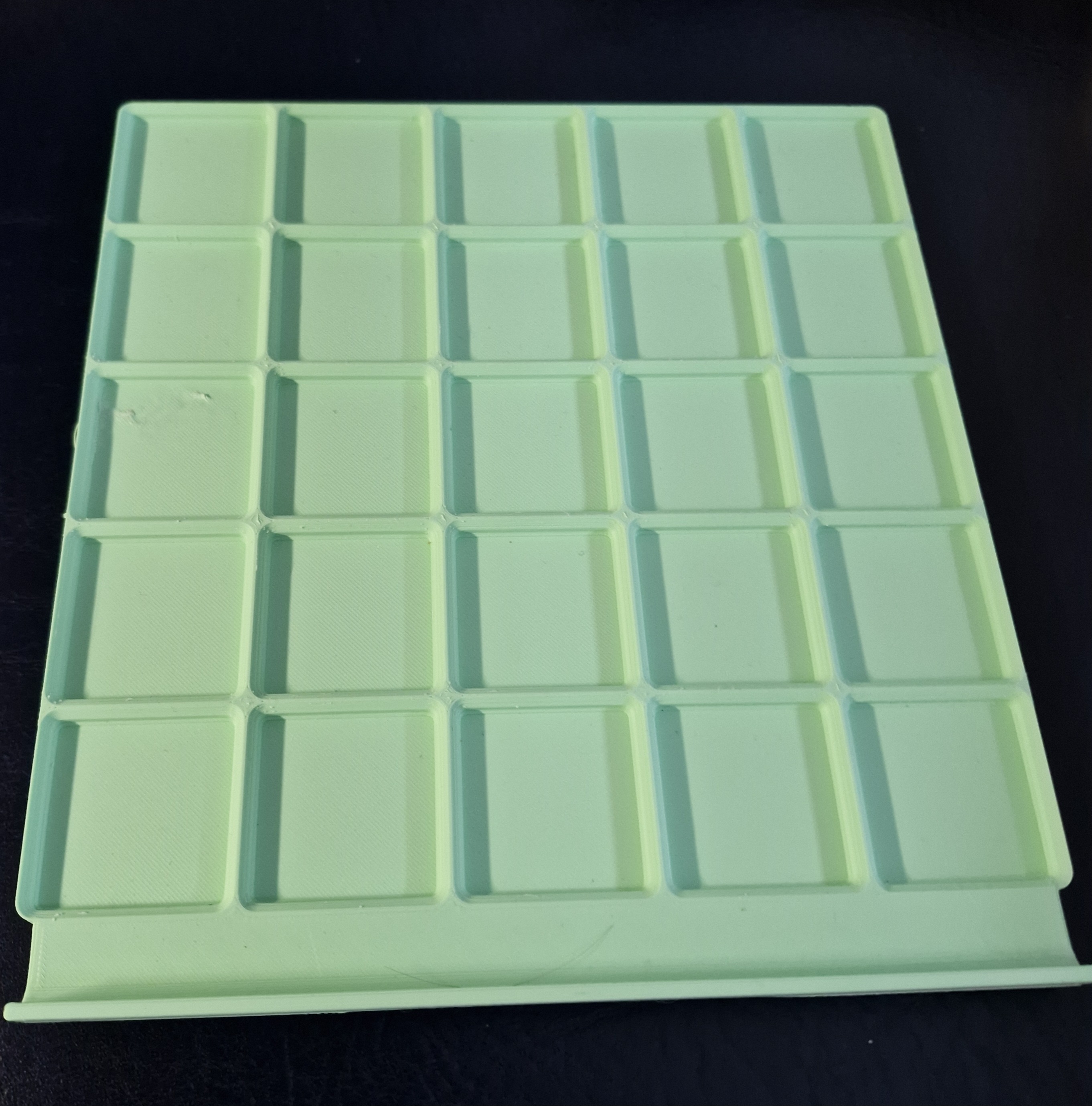

• Features: • Grid Pattern: A precise 5x5 grid layout with raised dividers to separate the bins. • Handles: Integrated handle on either side for easy carrying.

• Customisation: • Bin Sizes: Option to have various bin sizes within the 5x5 grid (e.g., some bins could be 1x1, others 1x2, etc.) • Colour Coding: Different coloured bins for categorization. • Modular Design: Ability to snap or lock trays together for larger projects.

Potential Applications

• Electronics Workbench: Holding resistors, capacitors, and other small electronic components. • Crafting Station: Organizing beads, buttons, and other small craft supplies. • Garage/Workshop: Keeping screws, nails, and other hardware neatly sorted. • Office Supplies: Managing paper clips, staples, and other small office items.

Creating a Gridfinity Carry Tray can significantly enhance organisation and efficiency in various settings. If you have specific dimensions or features in mind, please let me know, and I can help refine the design further.

Available Files

To cater to various needs and preferences, I have provided the following file types:

• Fusion 360 (.F3D) • 3MF • STEP • .STL

Feel free to customise and modify the design to suit your specific requirements.

Community Collaboration

I encourage you to share your customised versions on the community sharing page. By collaborating, we can learn from each other and enhance the design further. If you encounter any issues or if the design does not meet your expectations, please let me know on the sharing page. I will do my best to address any concerns.

Please like, save, and share the design if you find it useful. Your positive and constructive feedback is invaluable in helping me improve these creations. I’d also love to see photos of your prints! I’m curious to see how they turn out for you.

Print settings

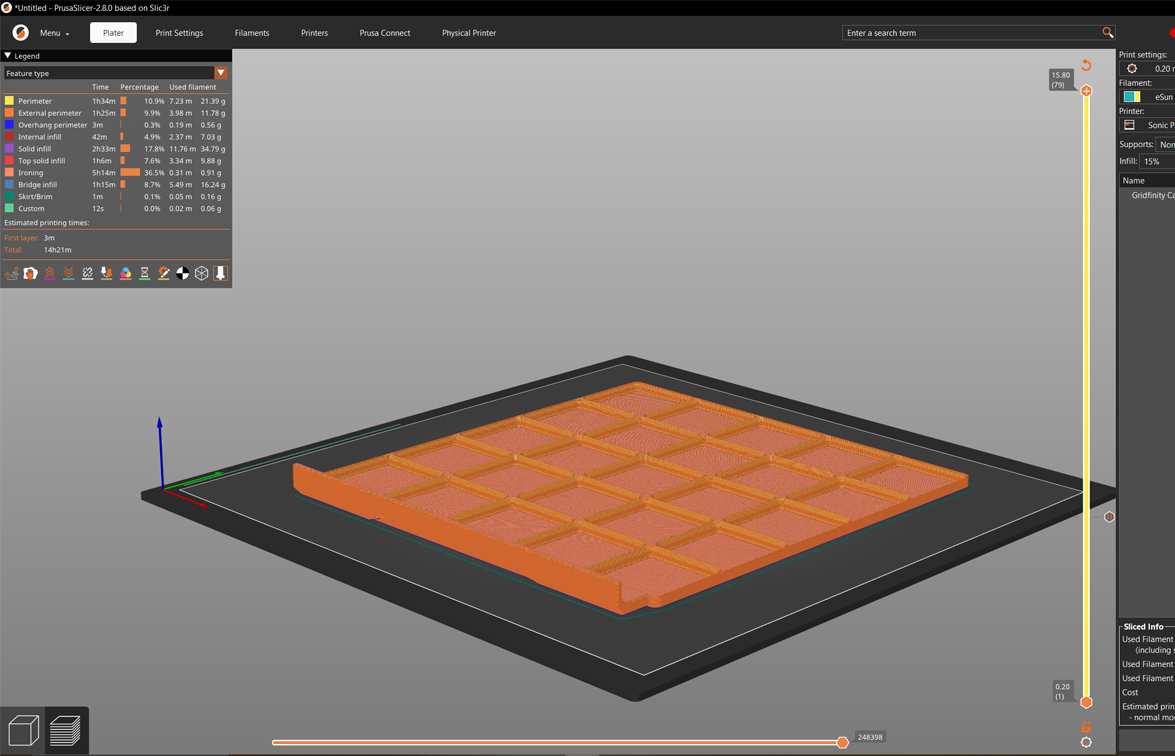

• Dynamic Quality • Nozzle: 0.2mm • Walls: 3 • Top/Bottom Layers: 4 • Infill: 15% Cubic • Supports: No • Material: eSun PLA+ • Colour: Matte Mint Green • Weight: 120 g • Print Time: 14 hours 21 minutes.

Instructions for Use

• Download Files: Access the provided files in your preferred format. • Print: Use the recommended print settings for the best results. • Share: Upload your customized versions and photos of your prints on the community sharing page.

Links for 3D Models:

My original design can be found here.

Conclusion

Thank you for your interest and feedback! By sharing your experiences and improvements, we can collectively refine and perfect this design. Let’s continue to innovate and create together.

Design and description by Trickyhicky , licensed CC-BY-SA.
