Growing Shelf

Hi!

Need a full color shelf that can be adapted to any space and make it grow until it fills the entire room?

Is your printed bored with nothing to do??

This one may be useful for you!

This is a set of pieces that you can join and make any figure you can imagine.

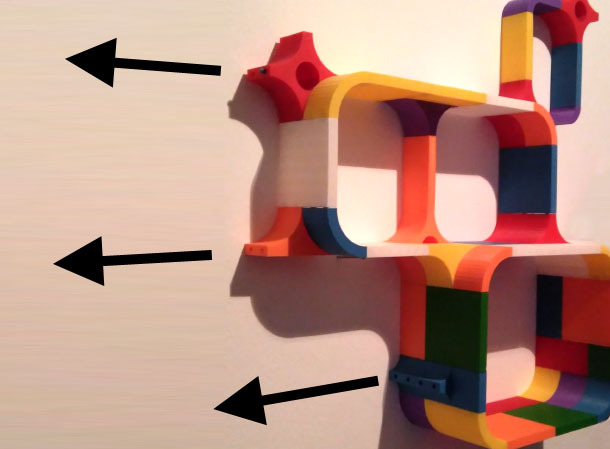

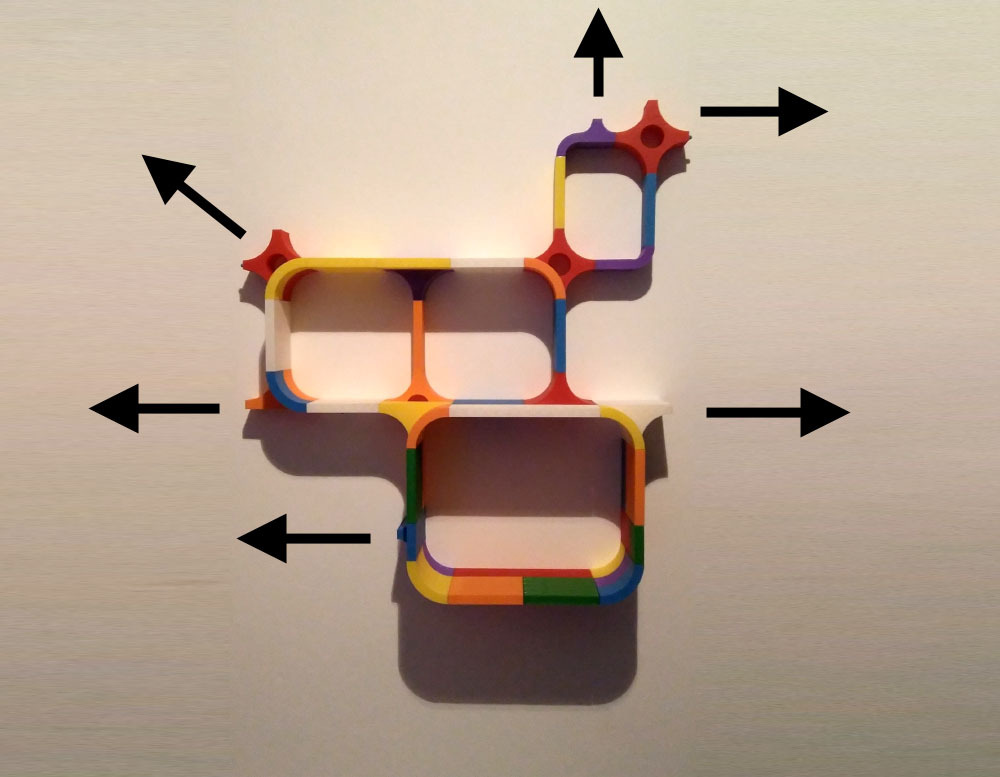

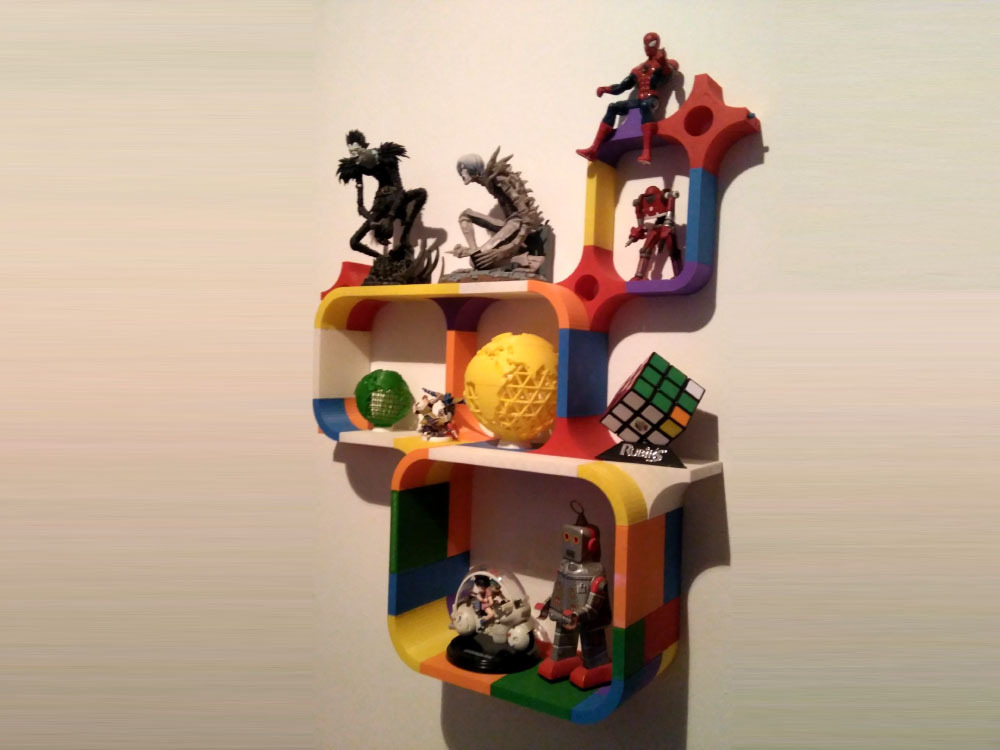

I'm using it for making nice shelves to store figurines, small stuff (or not so small) and has the posibility to add more parts in order to make the shelves 'grows'.

The concept it's simple and is inspired by Edge Wang Tiles and the bitmasking technique used in terrain/dungeon making in lots of games. See what are i'm talking about here : http://www.cr31.co.uk/stagecast/wang/2edge.html

You can combine different sizes to make nicer modules and also have more flexibility building big ones.

How it works:

• Print a bunch of pieces.

• Look for a nice combination

• Use pins and glue it to have a strong module

• Combine modules

• Fix or hook in a wall, put in your desktop or do whatelse you want.

• Fill with stuff

• Goto 1

The files:

I've include the STL's with the 40x40 mms parts and the pins used for Thingview.

Also included ZIP files with the sets of pieces for 40x80,80x40, 80x80,120x40 and 160x40 parts.

Also there's a file with an array of 9 pins. You'll need lots of pins.

About the customizer

If you need a set of parts not included in STL's use the customizer and adapt the sizes of pieces as you needs.

In customizer you set the size of main grid (40mms by default) and the thickness of parts (10 mms default). Then you can generate the parts multipliying grid size by 1 to 4 times.

Important The pins are not enough to make a strong structure. For a strong fix, use pins and apply glue in pins and edge of wallsparts. I'm using instant glue and works really well.

You can use double-sided tape or some hooks or racks to fix the self in walls.

More info...

The pins are 10mm x 5mm. But i'm printing a bit smallers (9 x 4.75). There's no need a perfect fit since i used glue in pins for a good and strong join of parts.

And last...

I'm testing more pieces and parts that can be useful for different designs or funcionallity. Eventually i'll upload some kind of 'expansion pack' with parts compatible with this one.

Hope you find it useful.

Happy printing and have fun!!

Print Settings

Printer:

BQ Prusa i3 Hephestos

Rafts: No

Supports:

No

Resolution: 0.3

Infill:

10%

Notes

Tested with PLA

0.3 resolution it's ok. Use a low infill and save plastic. 5% or 10% it's ok

No supports needed

Category: Decor

Design and description by Fernando Jerez , licensed CC-BY.
