Hextraction Gear Tile Remix

This remix of Zack Freedman’s Gear Tile & Card was made primarily for aesthetic reasons. The major changes were to remove the built-in sacrificial supports as most printers should be able to bridge this distance without the need for supports & to clean up some alignment issues. See the changelog below for more information.

Learn more about the free 3D-printed board game Hextraction here.

Print settings

This tile & card should be properly oriented & are designed to be printed without supports. For best results, print using a 0.2mm layer height. I used 40% infill, but you can experiment with other infill densities if you’d like.

To print the tile & card with 2 filament colors as I have, using a 0.2mm layer height, these are the filament swaps needed:

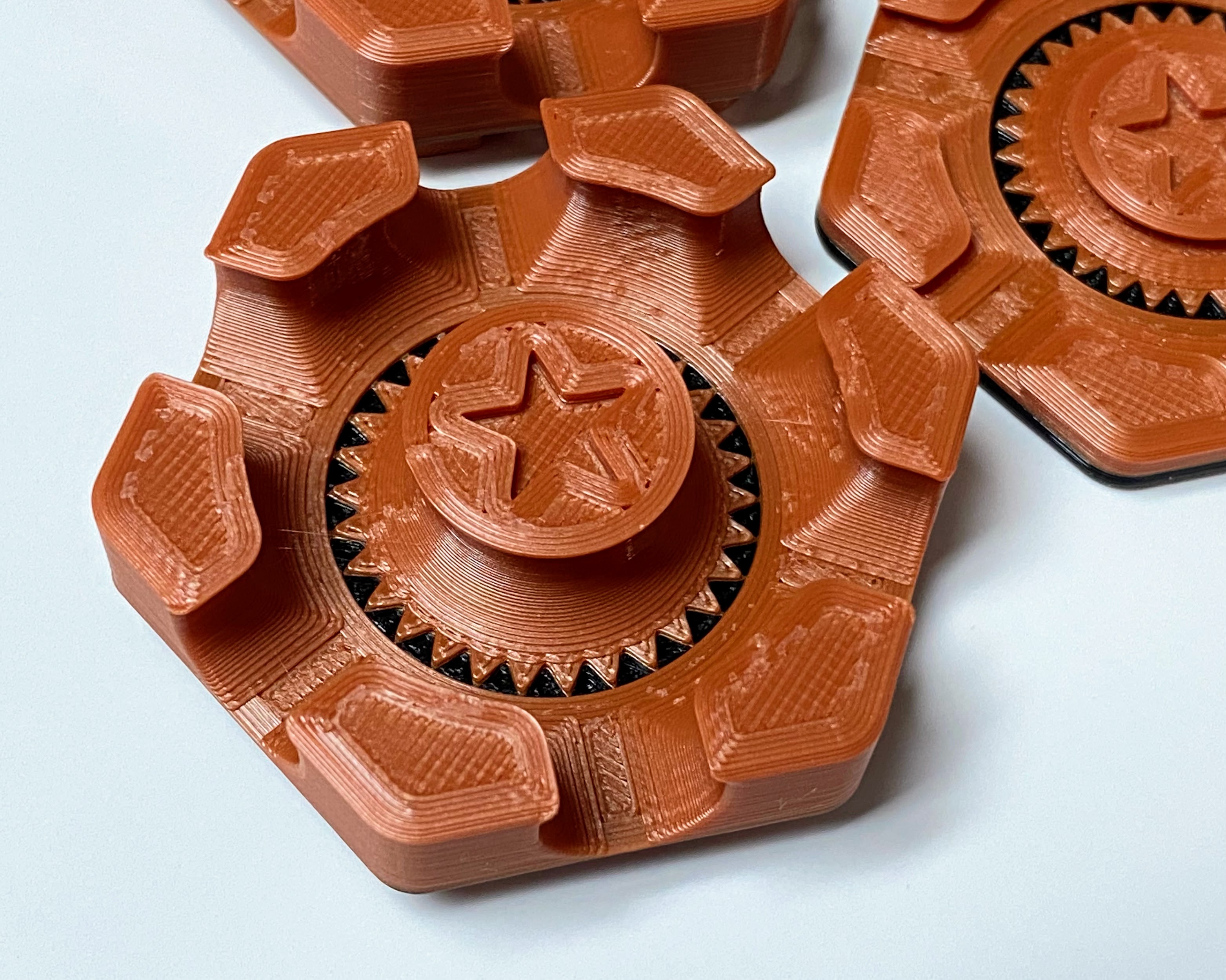

Gear Tile Layer 1-20: bronze Layer 21-25: black Layer 26-75: bronze

Gear Tile Card Layer 1-10: black Layer 11-25: bronze

Value4Value

This remix is being released under the Value4Value model. If you received any value from my work, please determine what it was worth to you & return that value to me in the form of a donation. Thank you for supporting my work!

Print Info

Printer: VORON 2.4 350 Rafts: No Supports: No Resolution: 0.2 mm Infill: 40% Filament: Keene Village Plastics - Bronze & Bold Black PLA

Changelog

Changes made to the original design: • Gear Tile — removed built-in sacrificial supports, centered star on tile • Gear Tile Card — centered star on tile portion of card, vertically centered rules text, added period at end of rules text for continuity

“If I have seen further, it is by standing on the shoulders of Giants.” — Isaac Newton

This tile & card were remixed from the original Hextraction Gear Tile by Zack Freedman using Fusion 360.

Design and description by Hackjaz , licensed CC-BY.
