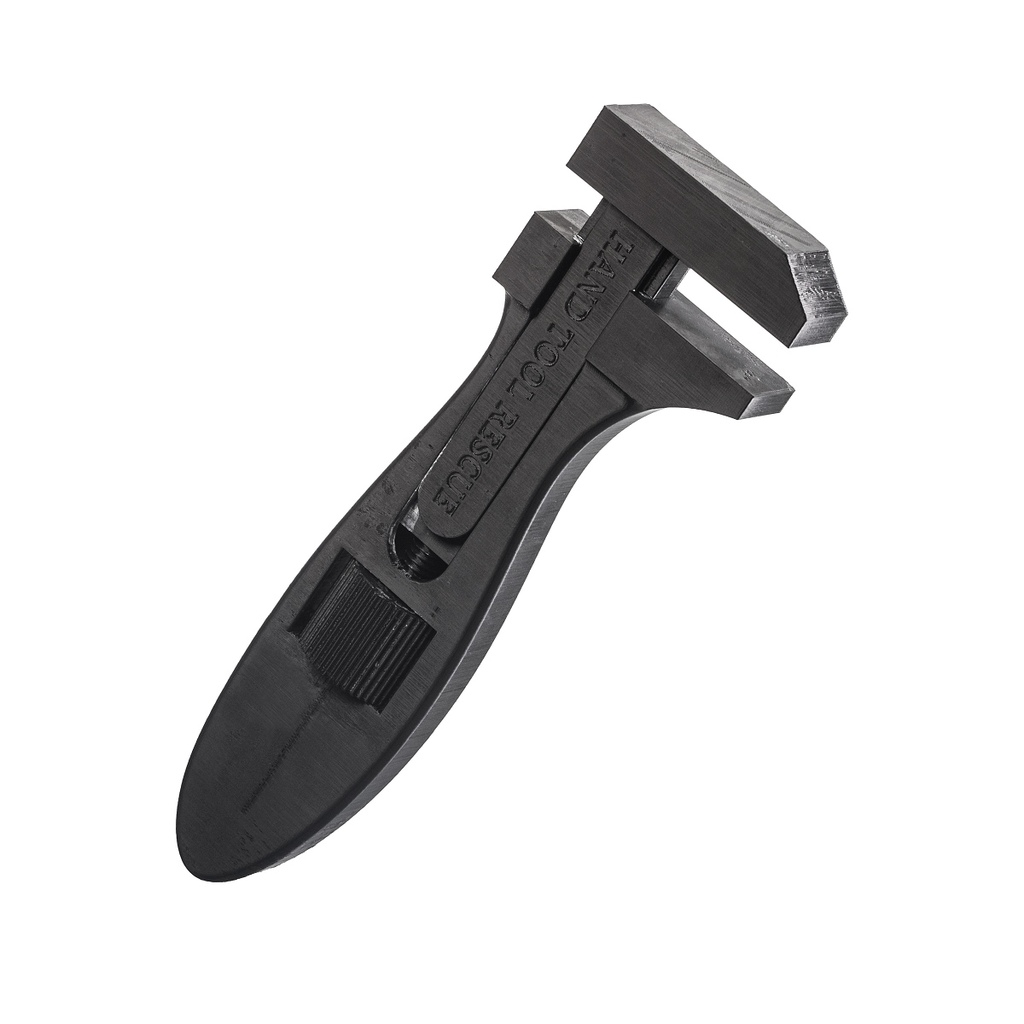

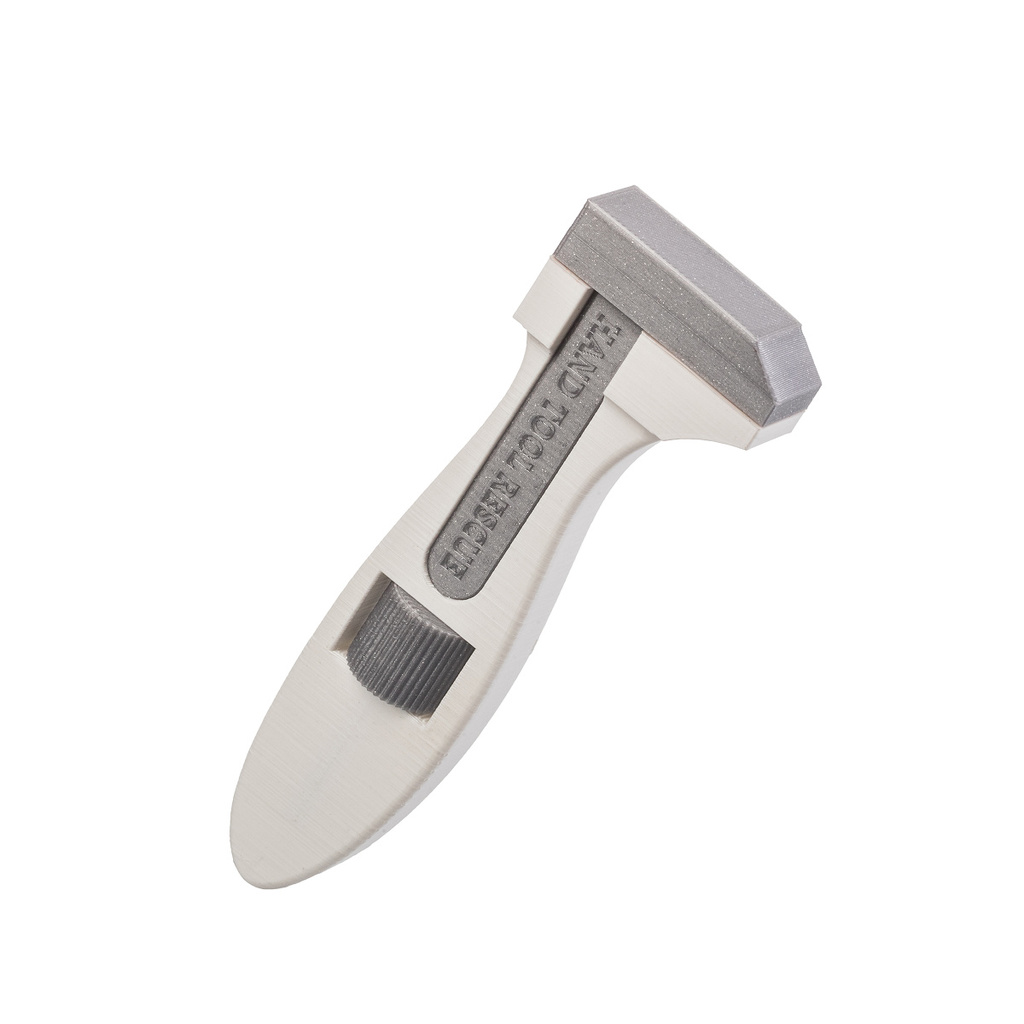

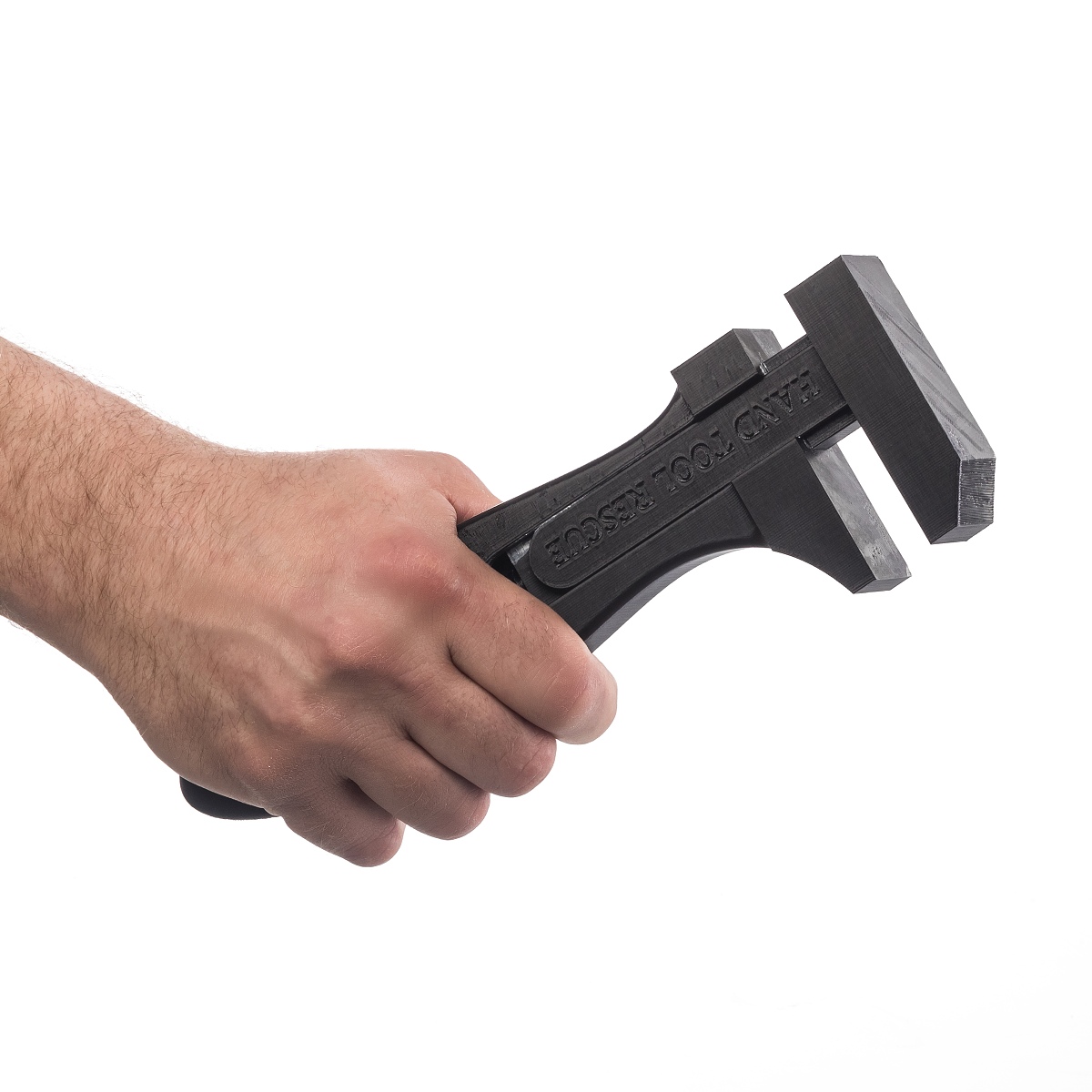

Historical wrench (inspired by Hand Tool Rescue)
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~22 g
- Express shipping
- $20
More information
This is not exactly NASA wrench, but it is also easy to print and you can use it in so many different ways (see complete video below :)
If you print this thing, I will be happy to see your make in "Post a make".
Print Settings
Printer Brand:
Prusa
Printer:
i3 MK3
Rafts:
No
Supports:
Yes
Resolution:
0,2 mm
Infill:
20%
Filament: [
any PLA ](http://www.amazon.com/s?url=search-alias&field-keywords=any+PLA&tag=thingiverse09-20)
Notes
See below for file-by-file guide ;-)
How I Designed This
I'm trying to learn with Fusion 360 and this was next challenge for me.
I'm fan of HAND TOOL RESCUE YouTube channel. This guy is really amazing in restoration old tools and devices. One of his project was resurrection of historical wrench (originally patented in 1879 by Charles Billings). As he offers this resurrected mini version on , you can now also print one from your favorite plastic.
Be sure to check his video how to made this wrench in "old-school" (not 3D printed) way :)
How to print this
Tested filaments: PLA, PET, CPE-HG100 (Fillamentum) and PC Max
HOW TO PRINT
Most easiest way: Put all 3 STL files in slicer, turn supports ON (from bed only), resolution between 0,1 mm and 0,2 mm, infill between 20% and 80% and hit RUN button ;-)
There is 3 different parts.
KNOB.stl
is easies one. Just print it without supports with no higher layer than 0,2 mm.
HAMMER.stl
You can use supports, but it went fine also without them. Again, for thread isnt good to try something above 0,2 mm layer height.
If you wish to really tight something with wrench, use higher infill, at least for part with thread. I tested PC MAX with 100% infill and it can really handle nuts and bolts. For toy/model purposes also 20% infill will work.
HANDLE.stl
Here you will need supports. With Slic3r PE works "only from printbed", but be sure that you get also supports in the middle, as shown on picture below
Resizing
Actual size is good enough for 0,4 mm nozzle, so I can't recommend downsizing, but you can make this thin even bigger.
Prusa printbed can handle 190% size of original STL models, see:
Category: Hand Tools
Design and description by LYOTRADE , licensed CC-BY.
Frequently asked
How long does shipping take?
Historical wrench (inspired by Hand Tool Rescue) is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
