Ikea Platsa Modular Dual Prusa Enclosure (MINI/MK3s/Bear)

Second Attempt with some Changes now.

!!Work is still in progress. Materials list and files are not complete at the moment!!

waiting for my second anti vibration mat and a new (smaller) stone for the Mini.

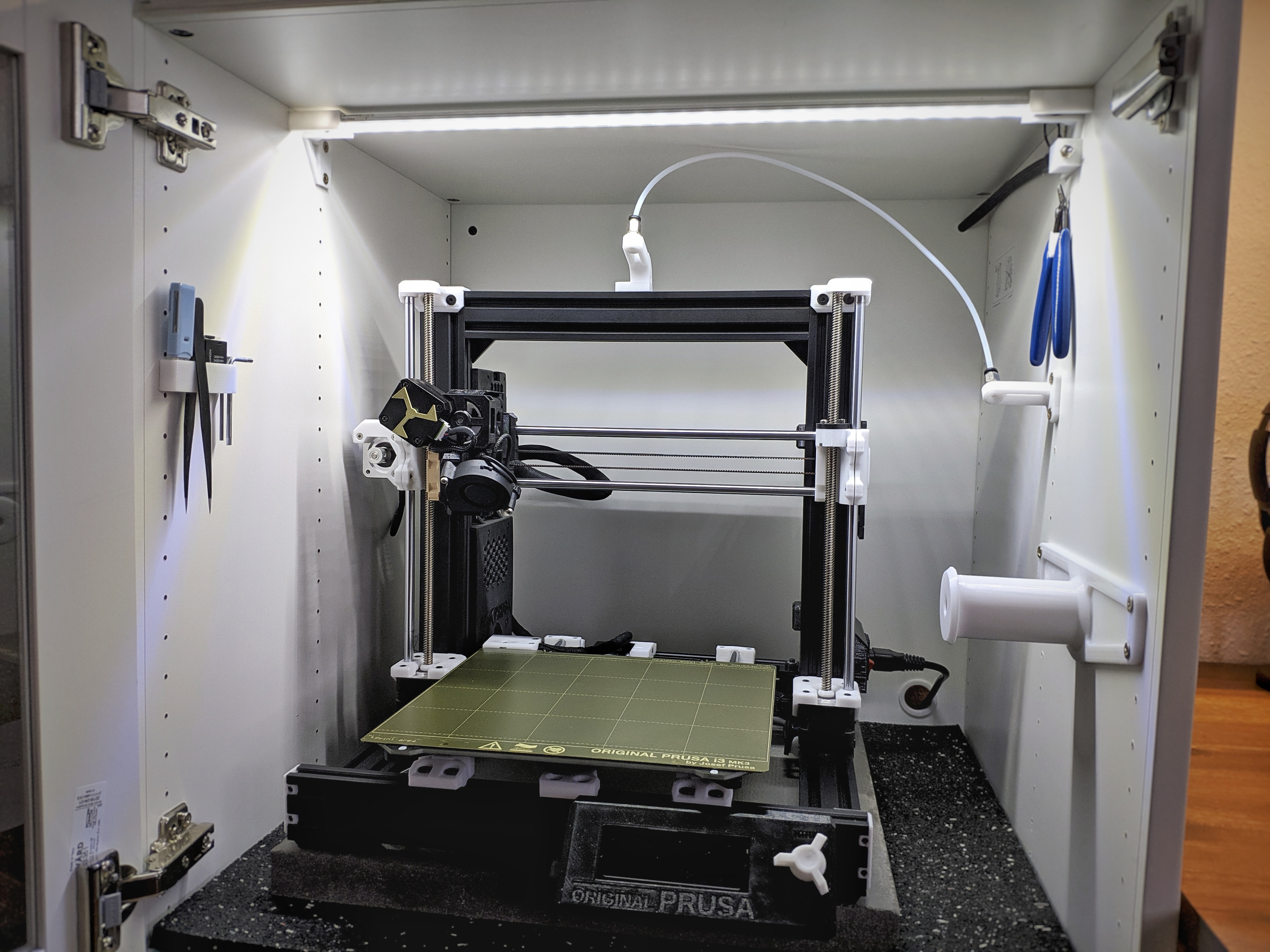

All work will be continued here for now. Rebuilt the thing, edited some parts, Additionally I added the Prusa Mini and Swapped my MK3s to Bear System. Some parts will be added in future.

If you need additional info, ask in the comments section, so everybody can read it :) Feel free to ask, remix, print, edit and say thanks.

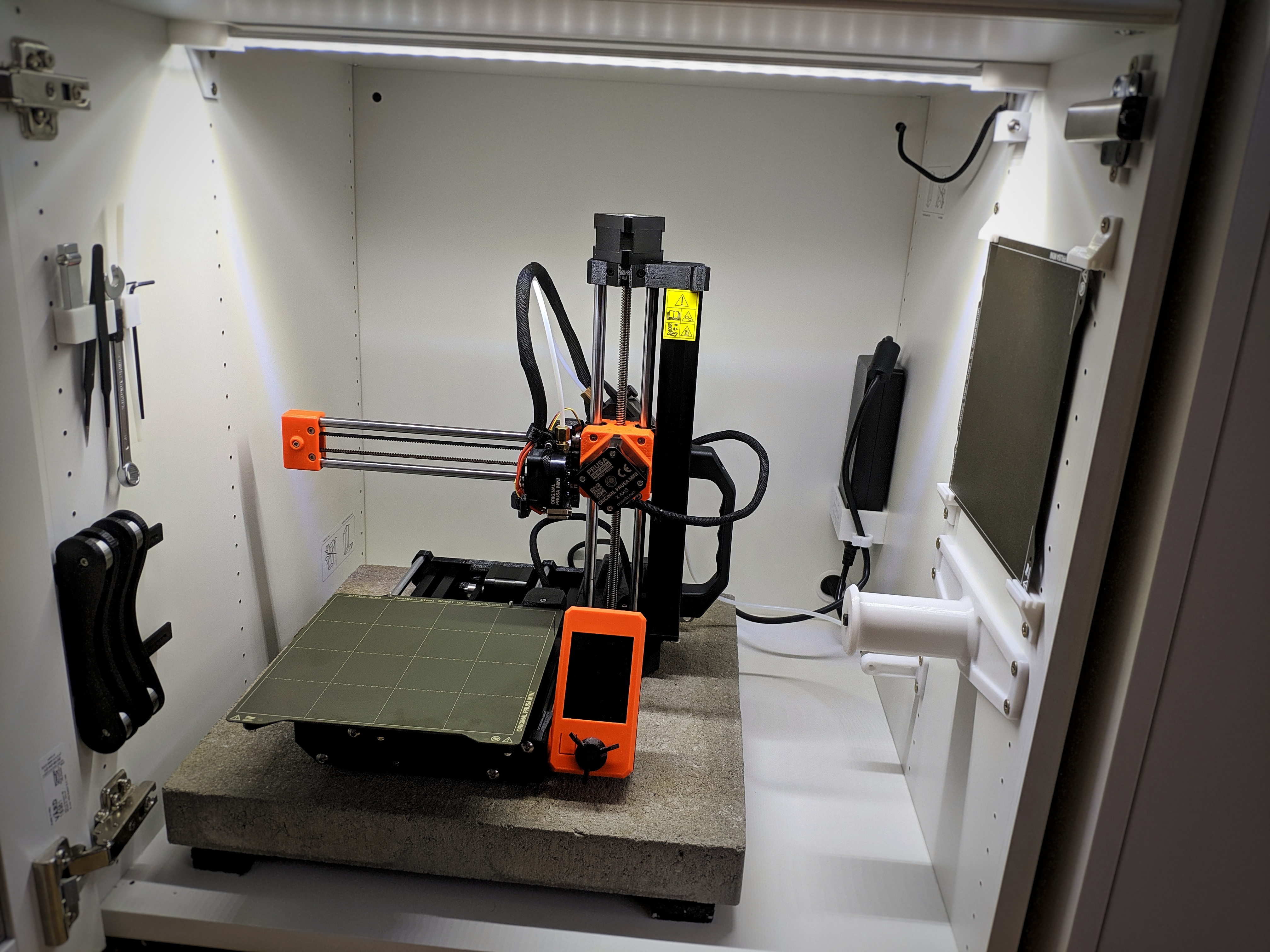

After my IKEA Lack table was a bit too unstable for me and would've optically no longer fit well into my new apartment, I decided to build another (strong) housing for my printers. In the print files you can find some Remixes or Self creations of 3d printed parts used to make this enclosure.

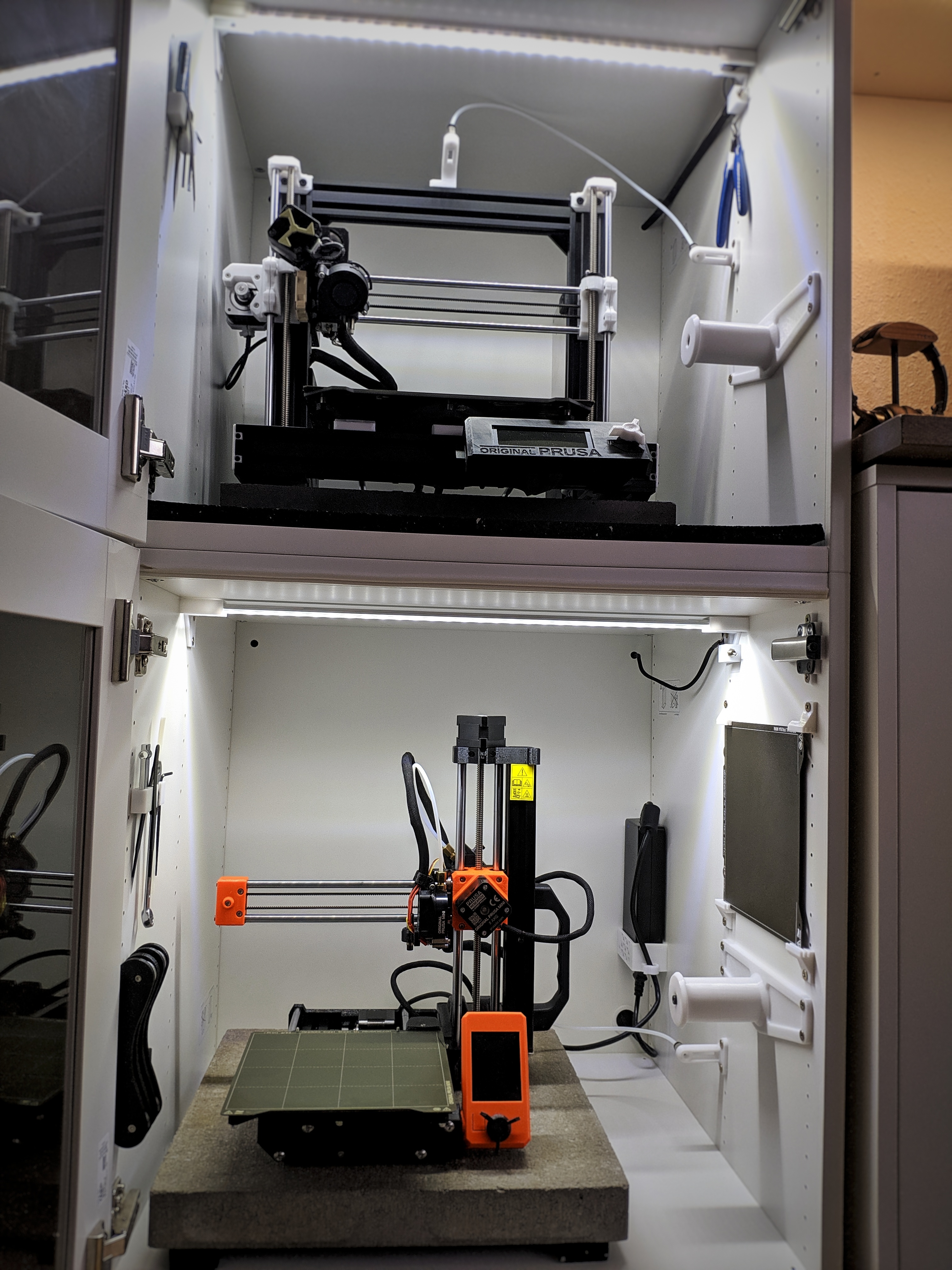

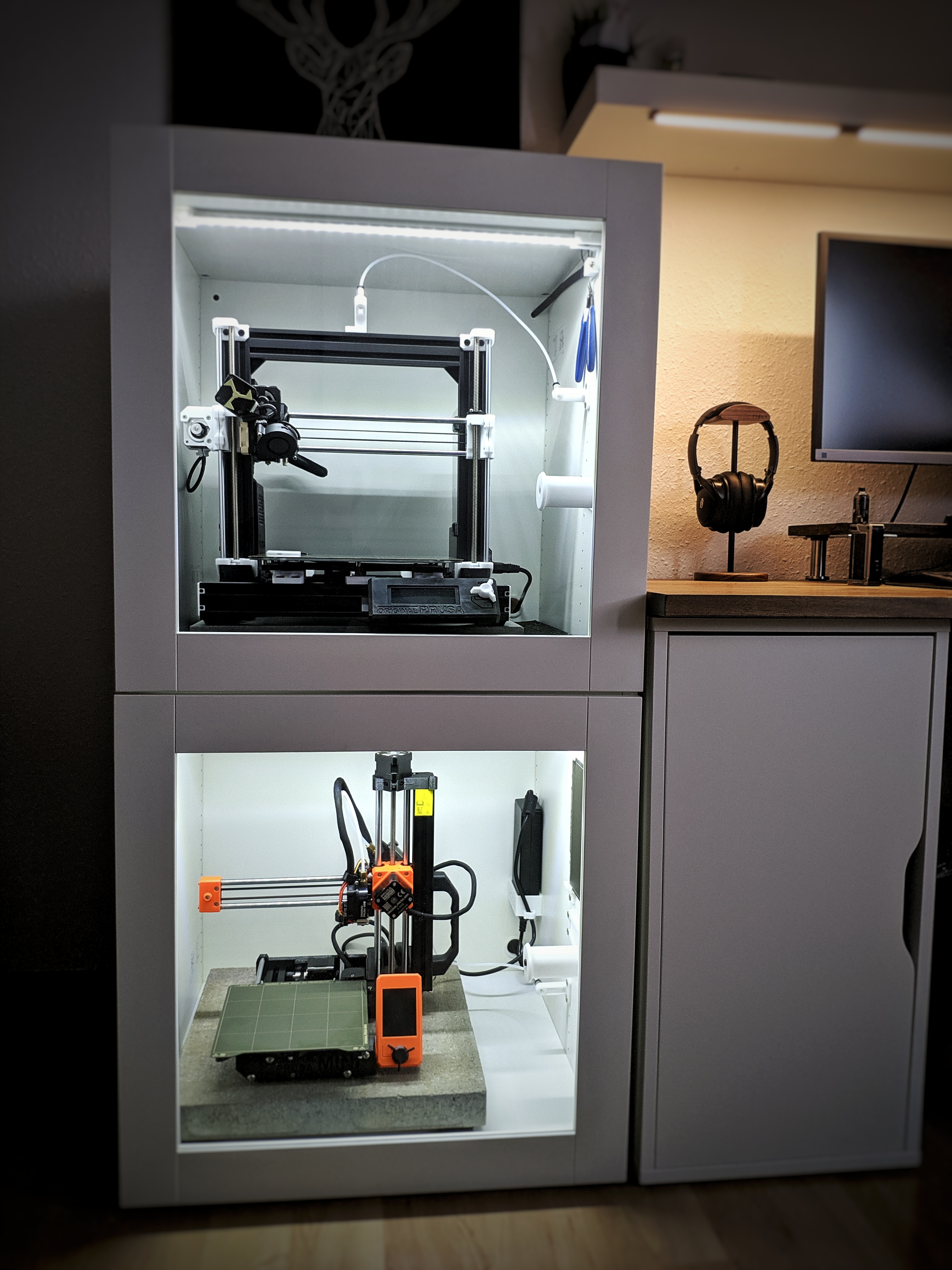

This enclosure is modular, because you can stack them over each other or place and connect another next to each other. Like a big Kallax system out of Platsas :D

Bill Of Material:

IKEA things:

2x/4x HJÄLPA hinges: 603.312.00 [Only these if you don't want softclose]

2x/4x BESTÅ hinges : 802.612.58 [if you like softclose + need aditional HJÄLPA Hinges]

1x/2x VÄRD 60x60cm doors: 603.473.19

1x/2x Platsa body 60x55x60 cm: 103.309.72

Local Store things:

1-2x Anti vibration dampening mat (60x60cm thickness between 0,6 and 2cm)

Stone 40x40x3cm (or a smaller variant for the mini - 30x30x2)

Some Wood screws (4,5x16) or similar

Double sided Tape for some tool holders

Some PC4M6 or M10 Connectors (PTFE Couplers)

Some M3 push-in Threads or hex nuts

PTFE Tube for reverse Bowden systems

Some wires for Lighting

Leds for Lighting (and the profile)

Maybe a Switch

Power Strip

Drill / Hole-saw (32mm for Power inlet/s)

Things:

Universal:

Platsa_Spool_Holder_short_69mmSpool (Shortened Spool holder for 800g / 1000g Spools ; You'll also need 1x Platsa_SpoolHolder_Cap)

Platsa_SpoolHolder (his bigger brother - used it 8 months without problems, now after the bear conversion it seems to be a bit to big. You'll also need 1x Platsa_SpoolHolder_Cap. Thanks to dermartin https://www.thingiverse.com/dermatin)

Platsa_Lamp_wo_switch_L&R (20x8mm LED profile Lamp mount without switch. If you want a built in switch, there is a switch version for the right side)

Platsa_Lamp_w_switch_right_final (Lamp holder with switch right side)

Platsa_Adapterplatte_m3insert/hex_final (Thing to use the push to open mechanism included in the Besta Hinges)

Platsa_Inlet_PowerSupply_32mm (32mm Inlet to feed the Powerline into the enclosure)

Platsa_Pliers_Pinmount (simple push in mount for pliers on ikea systems ; will add a second version of these)

PTFE_Feeder_Platsa_M6/M10_45_Deg (simple reverse Bowden mount for the right side, M6 and M10. Thanks to dermartin https://www.thingiverse.com/dermatin)

Platsa_RaspberryCase_Pinmount (if you'll use the mount for Pi3; https://www.thingiverse.com/thing:3346880. I'm not using it anymore, I've created my own 2020 profile mount for the bear frame.)

Platsa_Pliers_Screwmount_extended_V2 (latest version of the pliers mount - not on the pictures atm)

ZipTieSocket (to attach the wires for lighting on the top. simply put it on 19mm double sided tape - not on the pictures atm)

Mostly Mini Specific:

1x Mini_PTFE_Feeder_Platsa_M6_straight (chose which one you want to use. There is a M6 and M10 version, also some which are easier to print.)

Mini_Usb_Tool_Mount_Taped (Mount for USB, Hex Keys, Stock Bowden, .. to tape on the wall with dual sided tape. Clip version will be added in future.)

Platsa_Mini_Sheet_Mount_V2 (Screw on dual Sheet holder for Textured&Pei Sheet on the right side)

Platsa_Mini_SH_Mount_V2 (Spool holder holder :D Simple hook to mount the spool holder which came with the Mini, so you can take it out easy)

Platsa_Mini_PSU_mount_right (PSU mount on the rear right side of the enclosure)

Mostly MK3S / Bear Specific things:

MK3S_TopBowden_PlatsaEnclosure (M6 reverse Bowden top mount for Stock Prusa frame; if you need it, I'll add a M10 version of this)

Bear_Filament (M6 reverse Bowden top mount for 2020 extrusions / bear frame; if you need it, I'll add a M10 version of this)

Changelog

08/01/21 initial release

08/01/21 added Pliers mount

09/01/21 added ZipTieSocket

Design and description by padigree , licensed CC-BY.
