Kitchen Scale Under-cuppboard Holder

Designed for USB-c chargeable digital kitchen scale models with dimensions 136mm × 190mm × 26mm and of make Shenzen Dihang Electronics, Howeifull Küchenwaage, E-CrossStu GmbH, etc

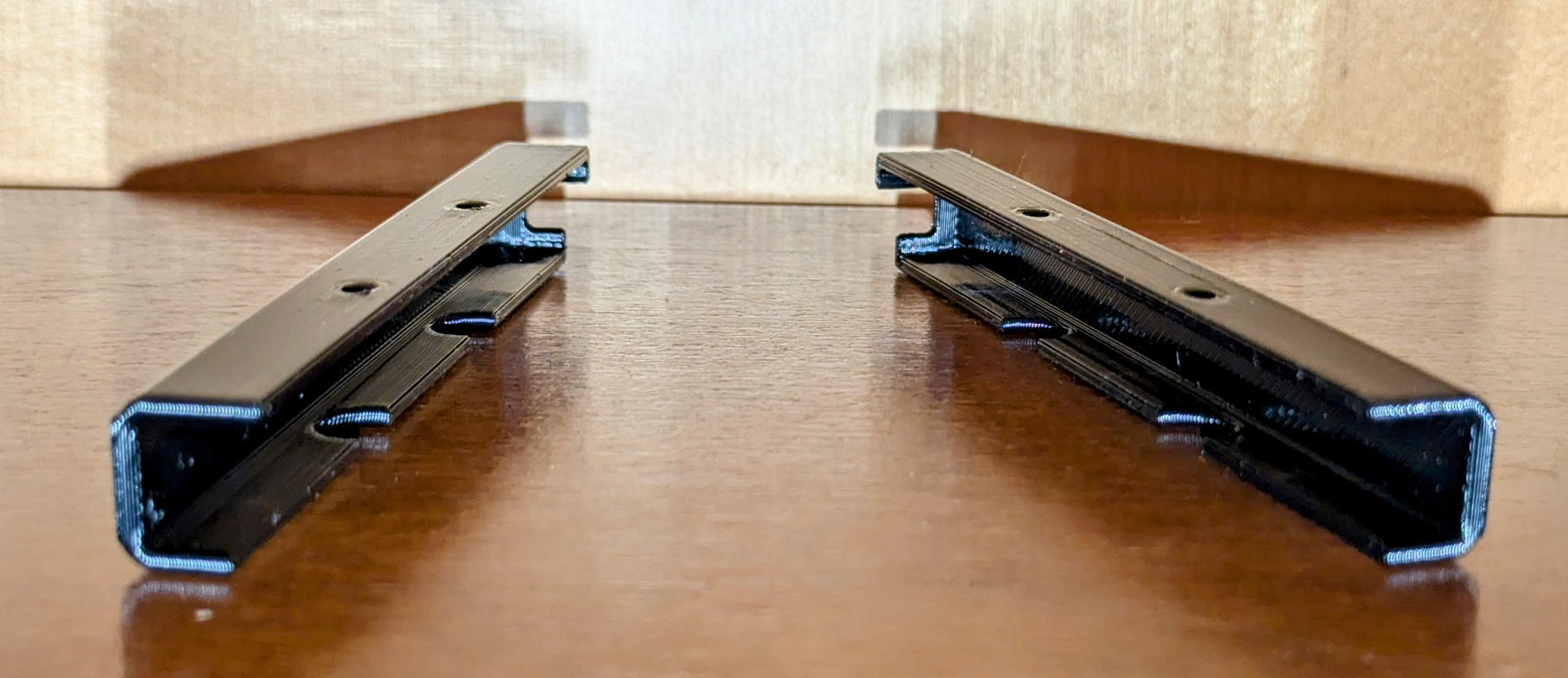

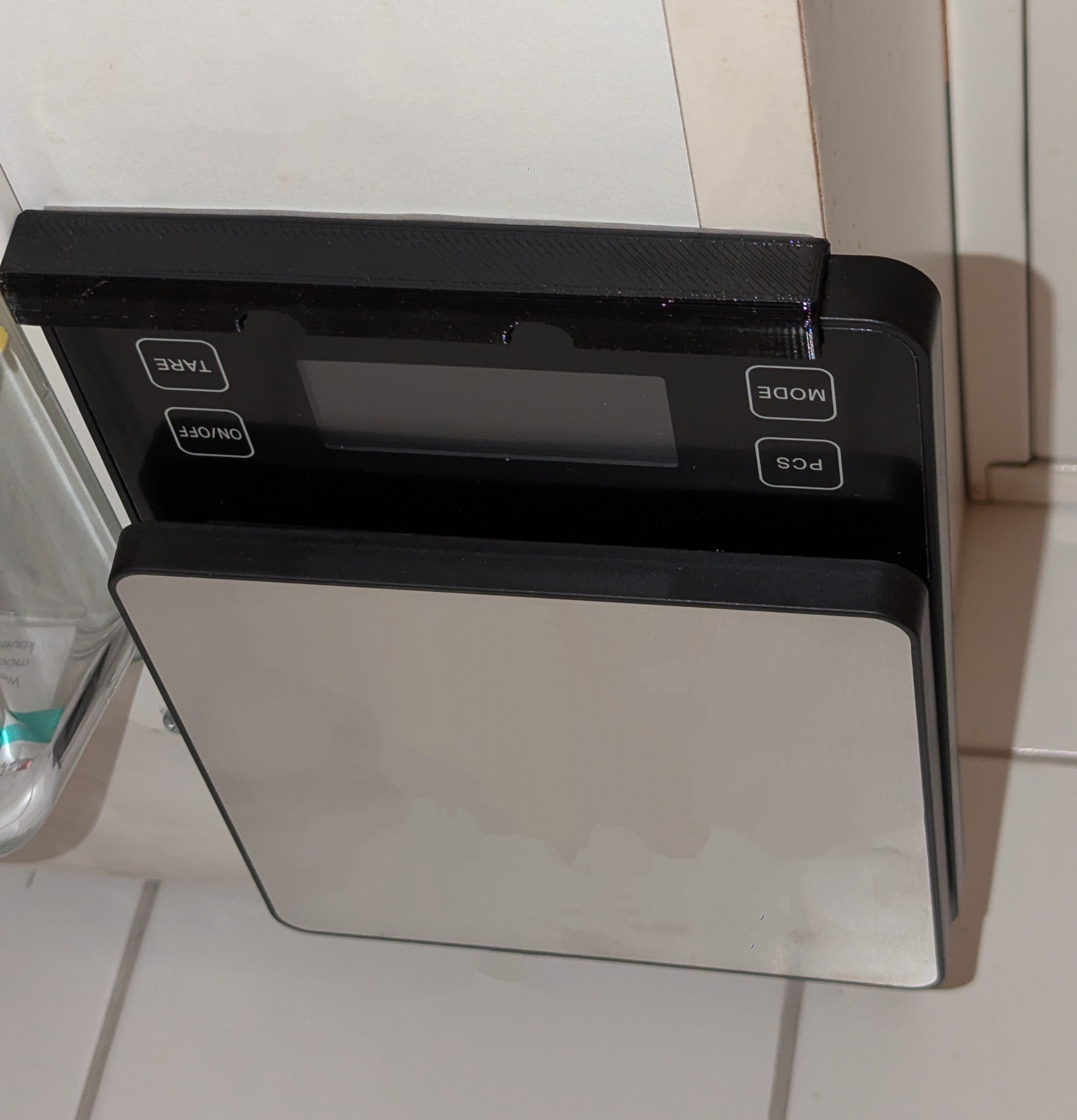

The slides are a bit shorter, since my cupboard did not have space left for the entire kitchen-scale :-P

Will fit many other similar scales without modifications, as long as the scale has edges of ~12mm in height.

For all other models, parameters may be adjusted in FreeCAD Spreadsheet, which will auto-generate your variant or just re-scale it in your slicer.

There are already tons of kitchen-scale-holders online, but even more types of scales exist. So I wanted to share a easily adaptable parametric FreeCAD model, that will hopefully be the start of many remixes for many scales :-)

Print-Recommendations

• 100% infill • PETG • max or reasonable large layer size for your nozzle. e.g. 0.32mm @ 0.6mm nozzle

Installation-Recommendations

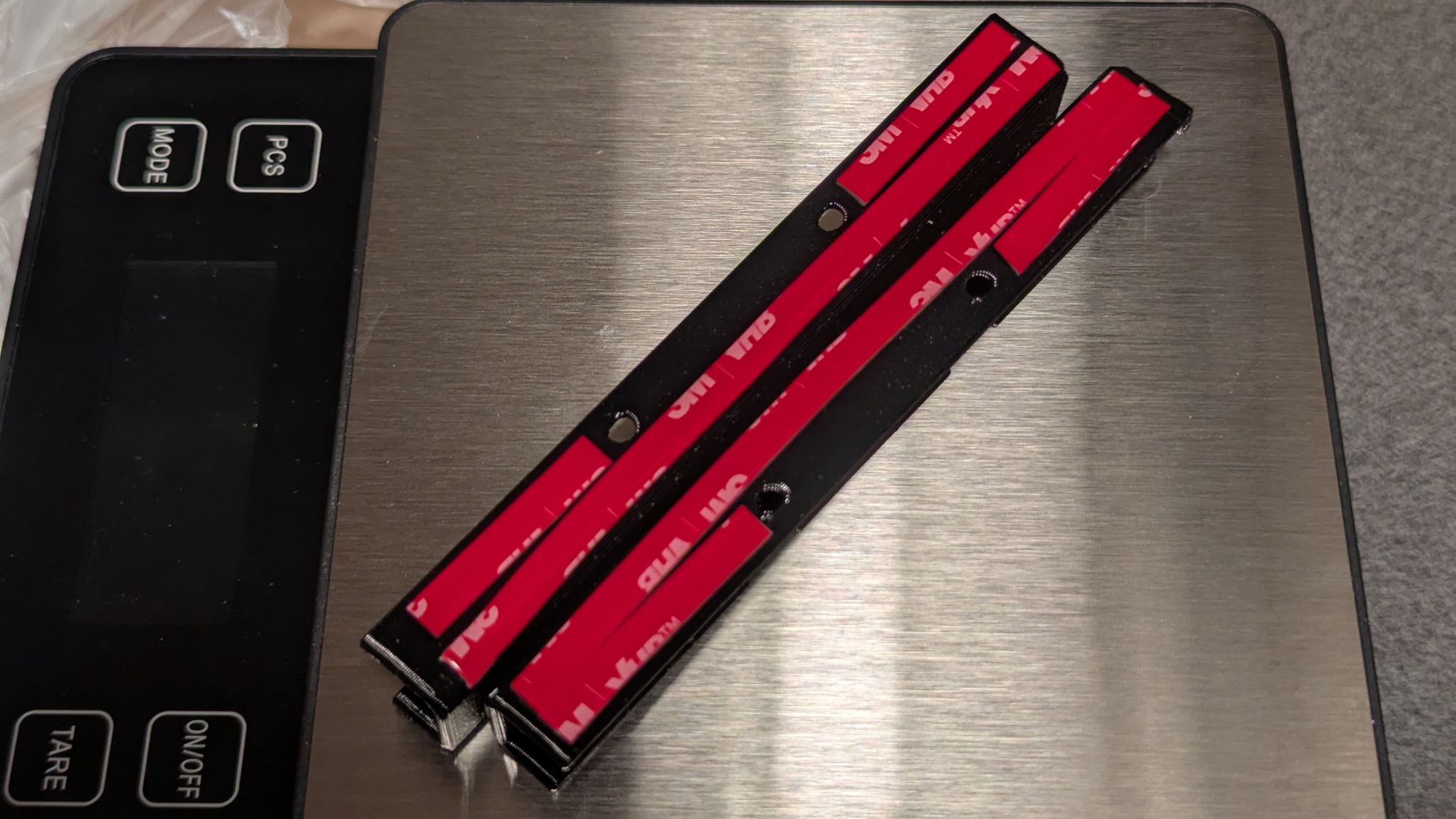

• fit side of screw-holes with double sided tape • slide onto your scale • glue/press into spot • remove scale • press more for good measure • use 3mm countersunk screws to fix permanently in place

Parametric adaption

to change the parameters of the model to your needs

• install FreeCAD • open .fcstd File • go to Spreadsheet in the tree inside the file • change measurements to your liking or needs • watch the model change • select Body in the tree • select Export in File-Menu • print

Design and description by xro , licensed CC-BY-SA.
