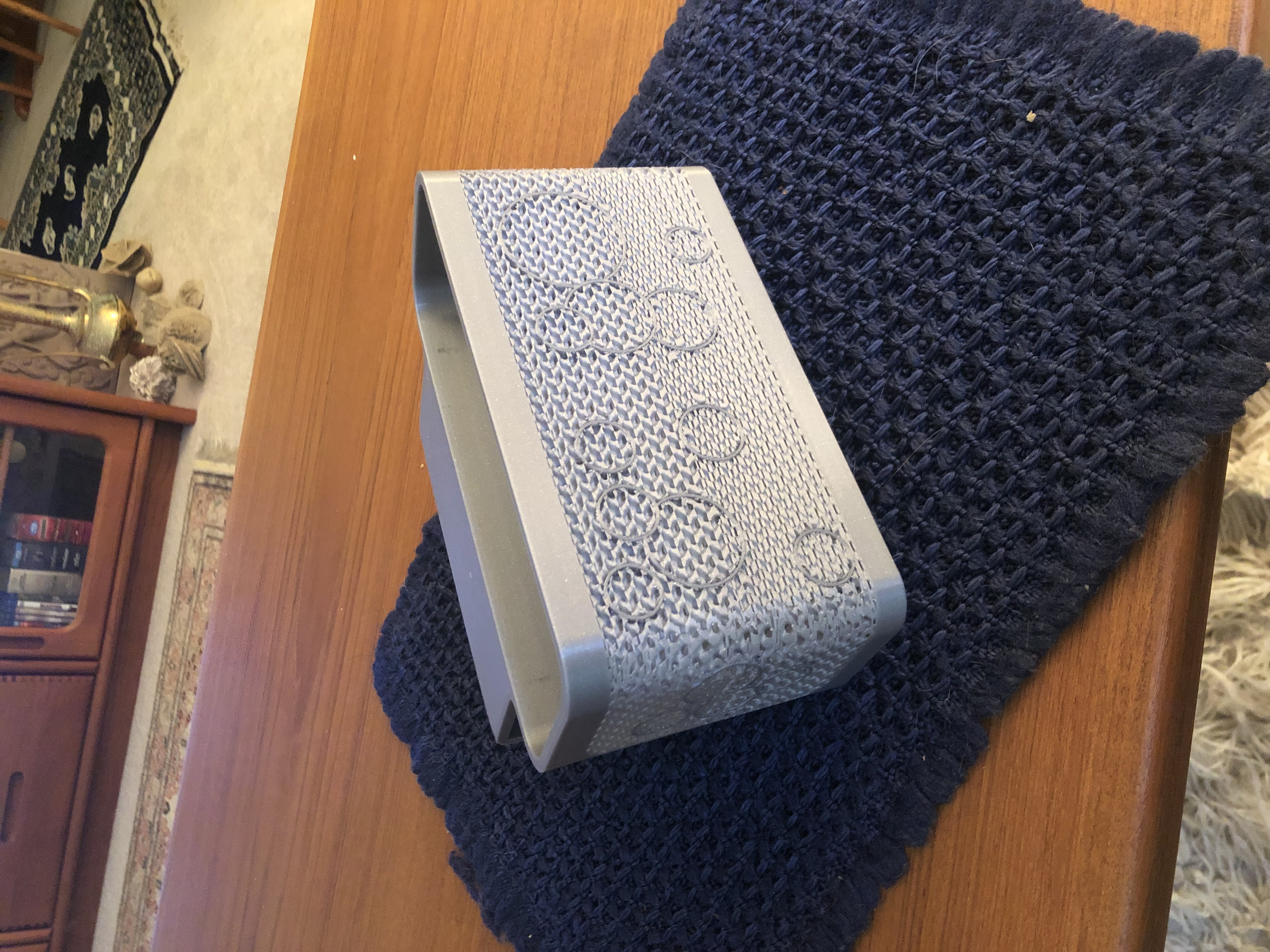

Kitchen Sink Brush Holder (Caddy)

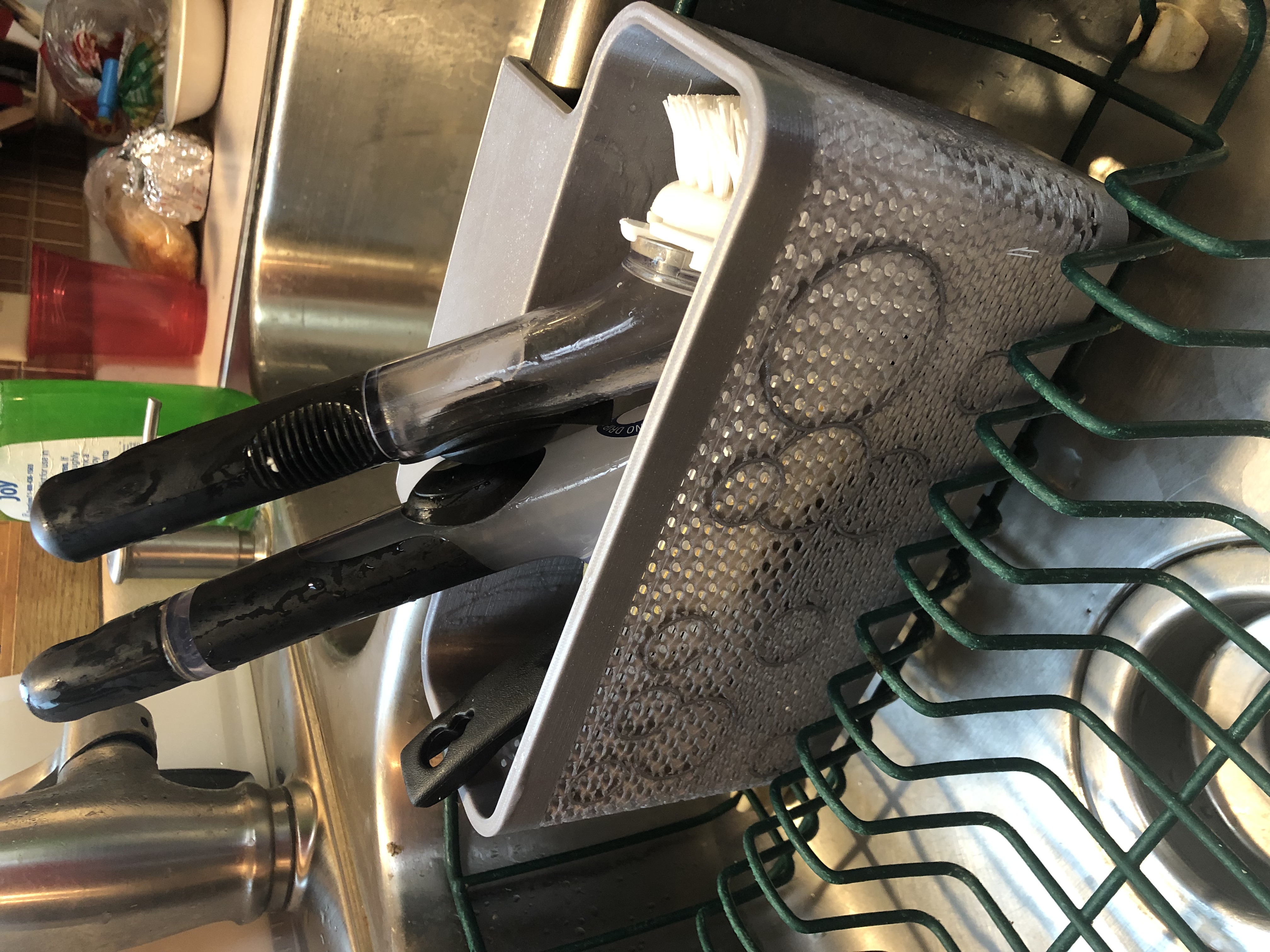

This caddy is used to hold dishwashing brushes. It's large enough so that the brushes can be placed head down in the holder.

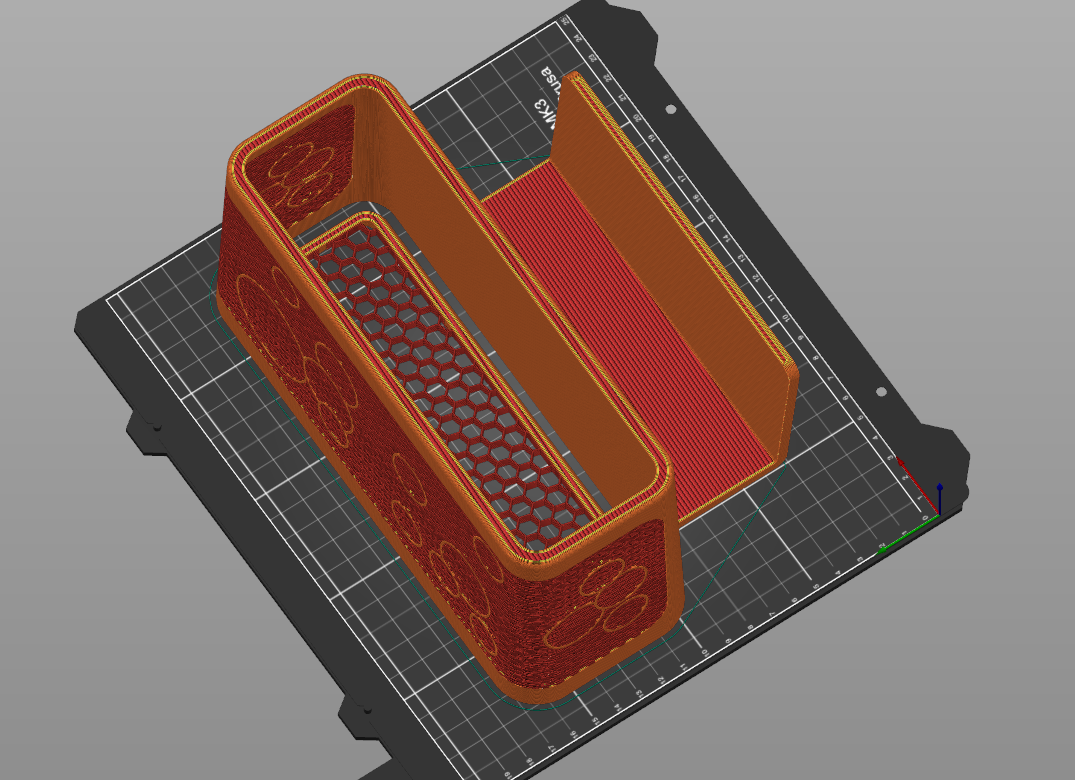

It prints without supports. The bottom prints separately, but is nested within the basket (caddy) in the included 3mf files. The bottom snaps into the holder and can be removed for cleaning (the parts are tapered, with a slight press fit section on the bottom).

I've used part modifiers (side and bottom) to create a bubble pattern and expose the infill to improve air flow/drying. I've included the STP files if you wish to modify the pattern.

I've printed it successfully in PLA and PETG. 0.2mm layer height. 3 perimeters. Basket infill is 15% Gyroid (a lesser) and the bottom infill is 10% Honeycomb.

I've used a solid infill on the upper ¼" (6mm) to improve the strength.

There is a wide version for hanging over a sink and into the drying tray. A narrow version is to be used without the drying tray. You can select the version that most closely meets your desired width and scale in the slicer to get width dimension you wish.

3MF, STP, and STL files are provided.

Design and description by Brent_L , licensed CC0.
