Kitchen Sink Faucet Replacement Button for Kohler Forte K-R10433

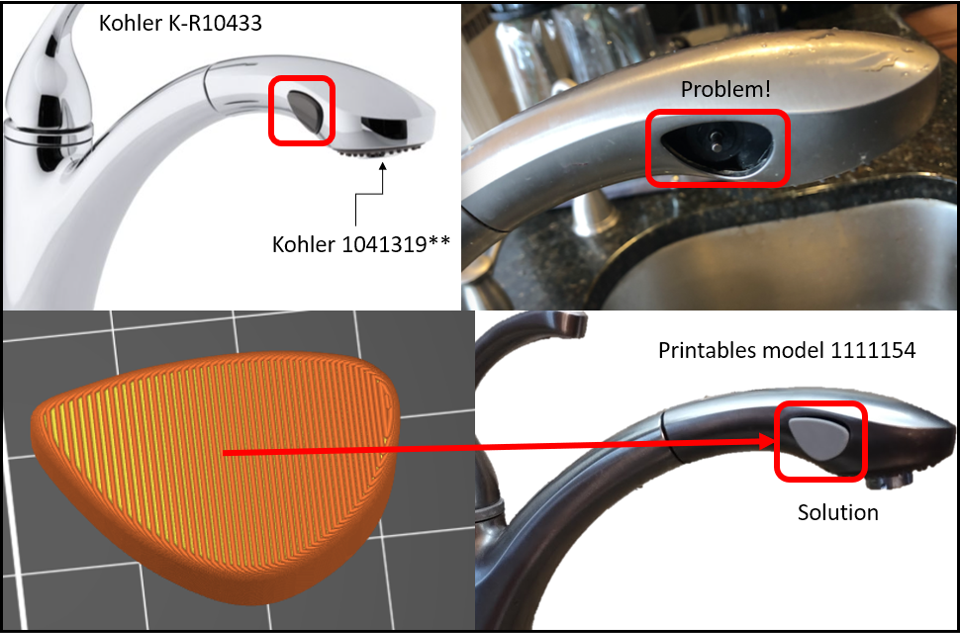

This part fits a Kohler pull-out faucet handle (Forte Kitchen Sink Faucet K-R10433 with various finishes, one UPC is 0650531224743) that is discontinued and replacement parts (K-1346768) are not readily available, or expensive. This faucet has stream/spray selector buttons that tend to fall off and break.

This is a fairly common failure.

This design replaces the plastic button. It requires some force to press the post on the faucet into the hole, but this should be possible by hand without the need for tools. The friction fit seems to work well, especially since the button is only pushed, never pulled. The files for this design include a button for both sides.

Some variants that this design should fit:

K-R10433-VS (Vibrant Stainless)

K-R10433-CP (Chrome Polish)

https://www.kohler.com/en/products/kitchen-faucets/shop-kitchen-faucets/forte-single-hole-and-three-hole-kitchen-sink-faucet-w-10-1-8-pull-out-spray-spout-r10433

Recommended Print Settings:

Material: PLA

Orientation: Default

Layer Height: 0.1 mm

Infill: 50%

Supports: None

Z-seam: Internal

The PLA gcode file includes a recycling symbol.

If you use material that is not PLA, use the “Not_Marked” file.

Recommended print settings:

• Material: PLA • Layer Height: 0.2 mm or less • Infill % : 15% or more • Supports: No • Print Orientation: Default as modeled • Raft: Optional • Brim: Optional

Design and description by REMLURELMI , licensed CC-BY.
