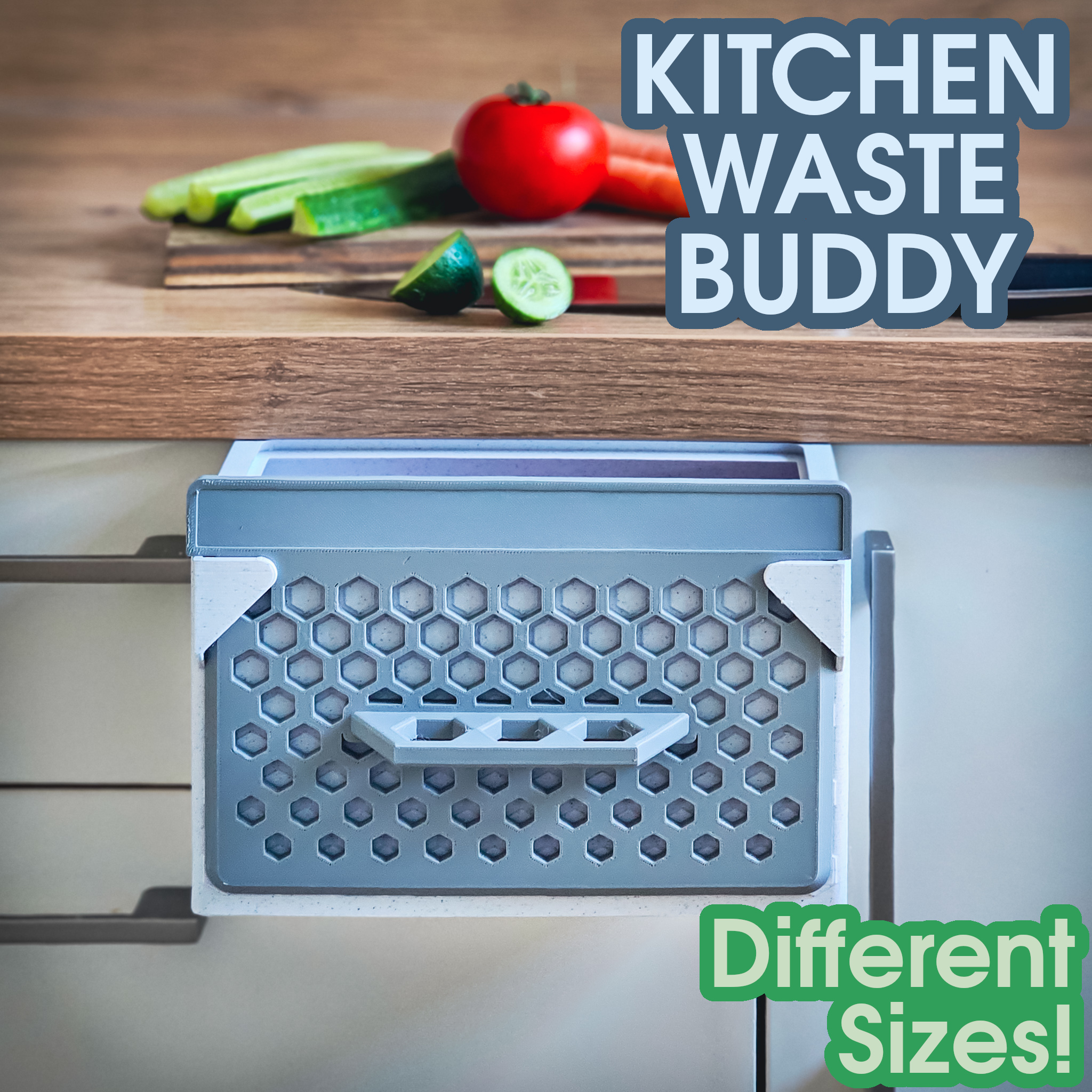

Kitchen Waste Buddy - hangs in your drawers! (Different Sizes!)

Read the disclaimer below about food safety! Use this print only for disposals and be aware of bacterial growth in the cavities of the print! That said…

Presenting Kitchen Waste Buddy!

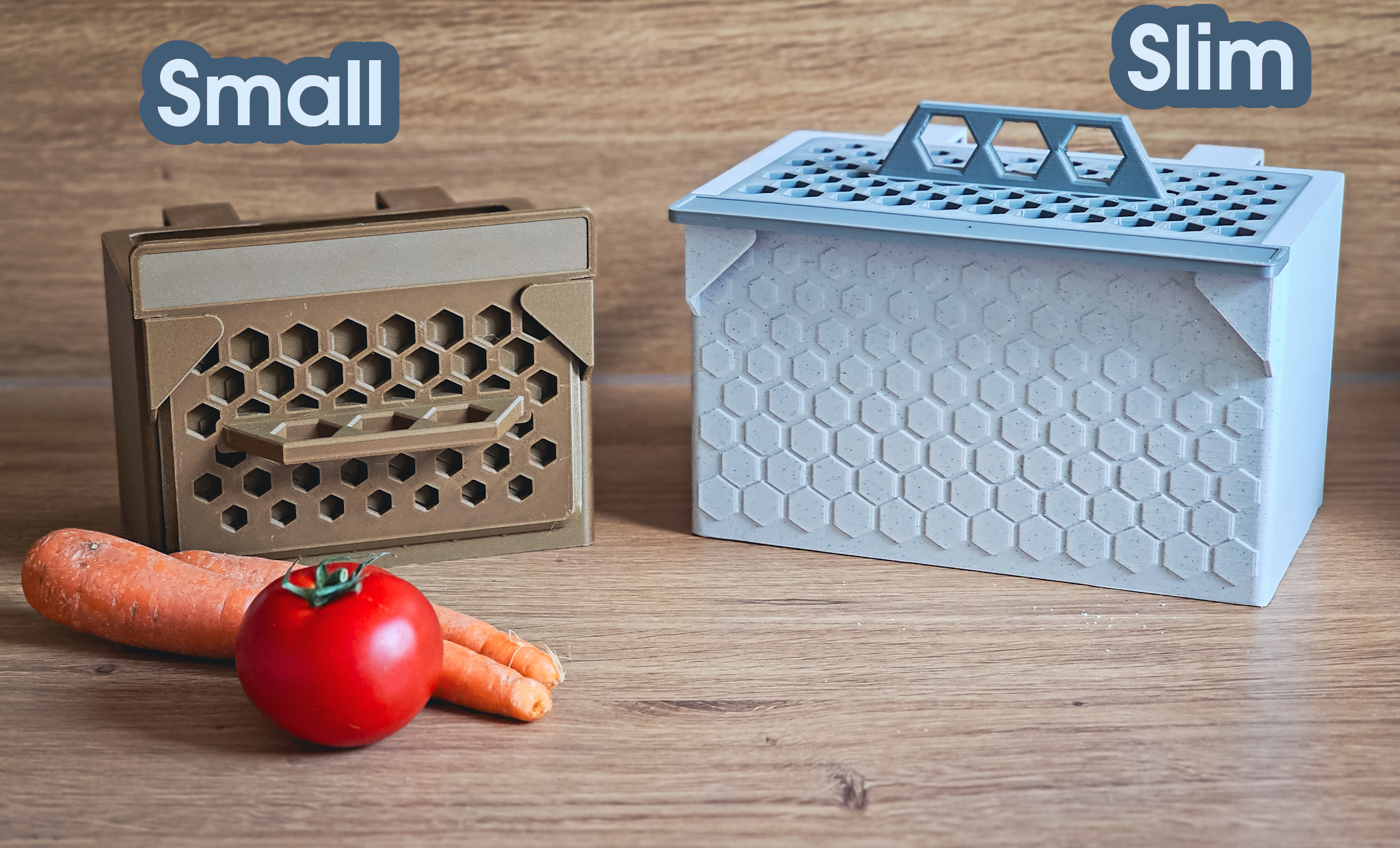

• Hangs conveniently in any of your kitchen drawers for all your kitchen waste disposal needs. • Sliding lid on top, which can be stored in front while you keep on cutting on a clutter-free space. • Handle on top of lid for easy carrying. • Different sizes: • Extra Large (storage volume W: 230mm, H: 180mm, D: 180mm) • Large (storage volume W: 230mm, H: 150mm, D: 150mm) • Medium (storage volume W: 210mm, H: 120mm, D: 120mm) • Small (storage volume W: 160mm, H: 100mm, D: 100mm) • Slim (storage volume W: 230mm, H: 150mm, D: 110mm)

• Neat hexagon design because…. hexagons!!

Printing

• Print with 0.2mm layer height • Consists of two parts: the bin and the lid • Lid • Print without any supports • Infill 15% • Add a brim if your setup tends to warping • Remove brim with a deburrer • Slide Lid into bin a few times to make it go easier

• Bin • Add snug supports at the hooks (see 3mf files provided with medium model) • Infill 15%

Disclaimer

This is called Kitchen Waste Buddy for a reason! Don't use it for storing food which you want to eat later!

In fact, if you feel uncomfortable with food touching any 3D print, even if it is disposed, don't print this model or use a baggy inside the bin to prevent any food touching the bin. If you are concerned about bacteria growth, regularly disinfect the bin.

onshape Model

The model is fully parameterized and the onshape model is available here.

Updates

2024-07-20

• Uploaded 3MF files • Renamed “can” to “bin”

Design and description by christopher-auer , licensed CC-BY.
