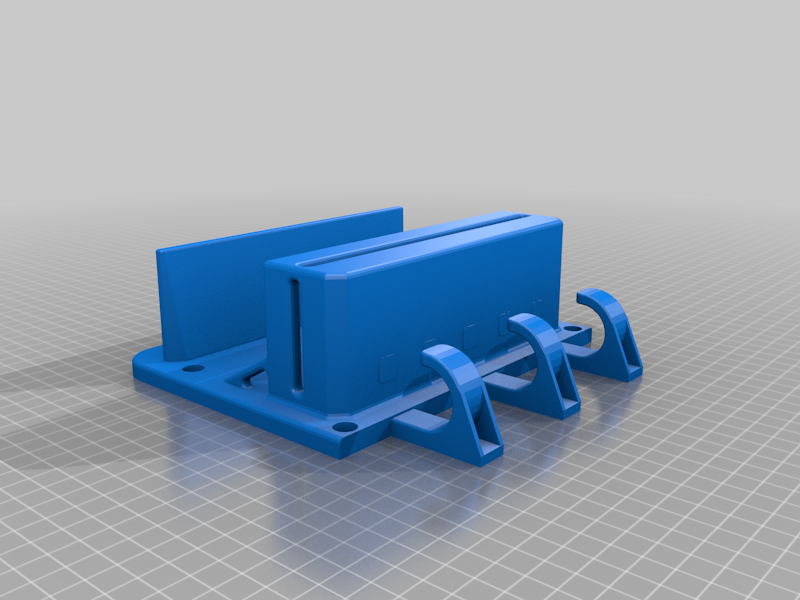

Leash Holder with shelf

Changed the hooks so they aren't so close to the bottom of the shelf. They are longer and have a shape that is more effective and better looking.

To add a customized name, I made an indention of the dogs name about 2mm into the leash holder (you can use tinkercad).

I also printed the STL of the dogs name. In other words, I took the same object I used to indent the name onto the leash holder, exported it as a separate object, and printed it out as well (in another color).

When printing the name, I compensated for the clearance in CURA by setting the horizontal expansion setting to -0.1. This allowed the name to fit into the leash holder indention.

I printed the name at 3.5mm high. This makes the name protrude out a little bit for a better look.

Overall pretty much perfect for what I wanted, and it all fit on my ender 3 build plate. I printed the leash holder in matte black filament, and the name in red.

Note: When printing the leash holder, even with my good support settings, there were marks left on the leash holder where the supports were for the bottom of the bucket. They were more prominent because I used matte black, but the shadow from the shelf and their location makes them hard to see. If I were to reprint this, I might consider printing the bucket as a separate part and attaching it post-print.

Print Settings

Printer Brand:

Creality

Printer:

Ender 3 Pro

Rafts:

No

Supports:

Yes

Resolution:

0.16

Infill:

20

Filament: Hatchbox PLA Carbon Fiber/Matte Black

Category: Pets

Design and description by tymau5 , licensed CC-BY.
