long reach soundhole clamp / bridge clamp (for guitar repair)
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~43 g
- Print time
- ~2.4 h
- Express shipping
- $20
More information

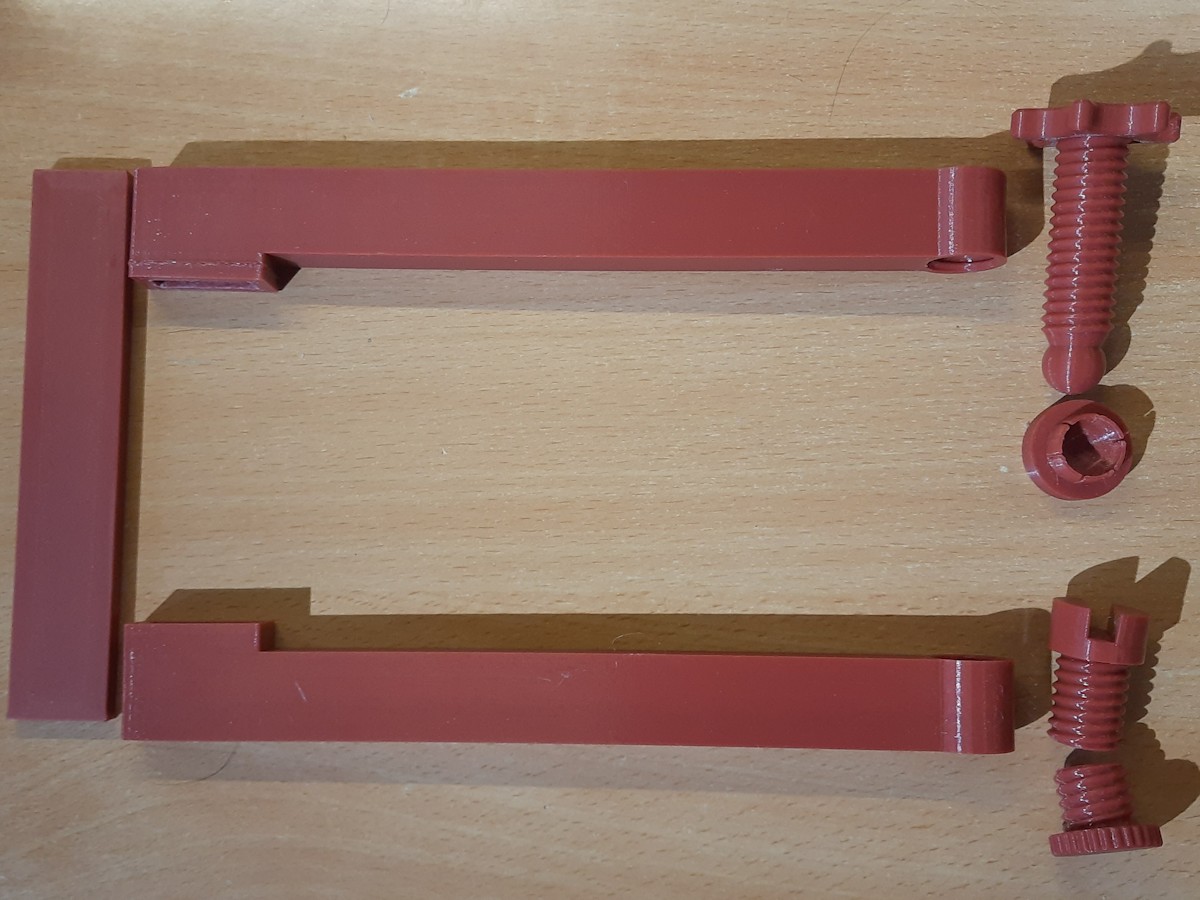

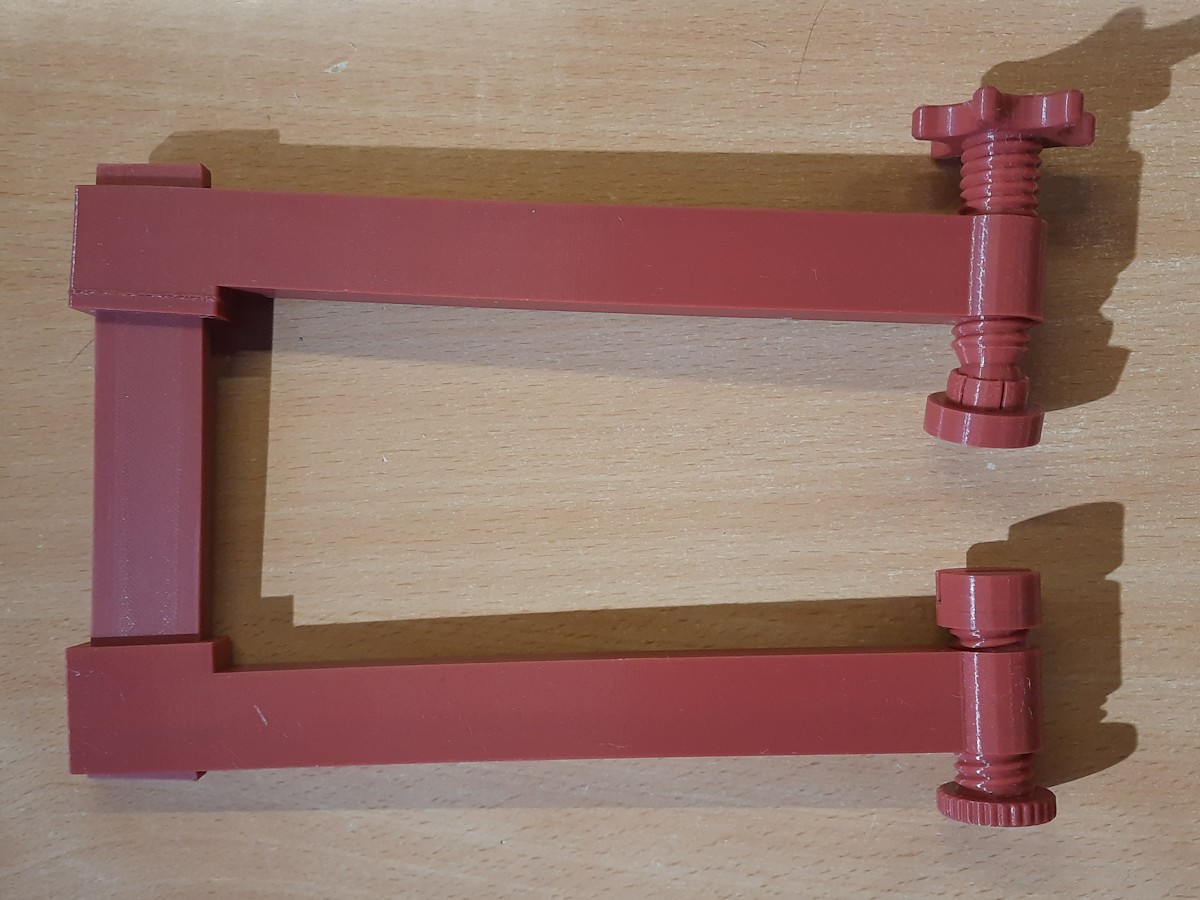

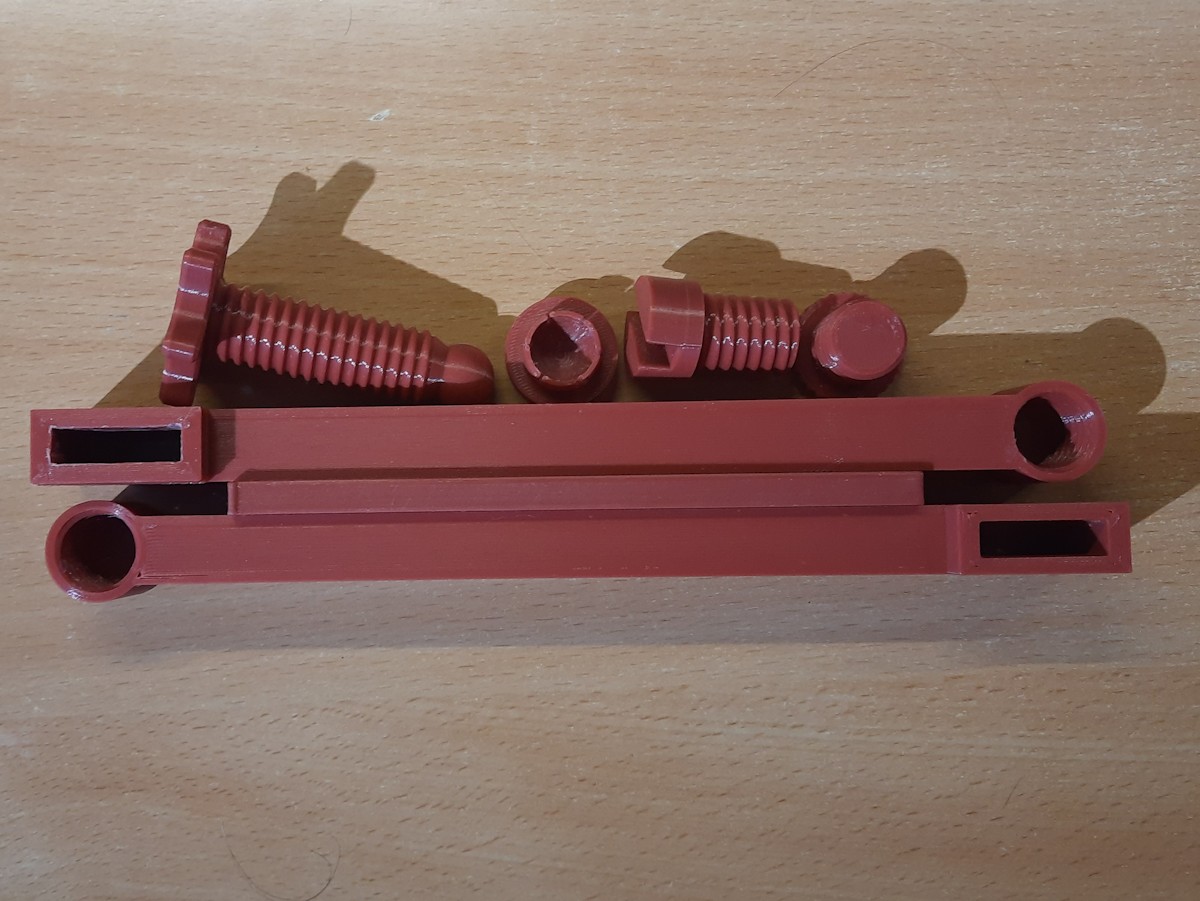

My guitar's bridge broke off, so I wanted to glue it back on, but I needed some suitable clamp to hold it in place while the glue sets. LoboCNC had designed one, but it was a bit too short for my guitar and a bit too big for my Prusa Mini, and so I designed my own, it worked great.
Printing: For the bar use lots of top and bottom layers (say 8), and even more walls/perimeters (say, 12). For the two arms use lots of walls/perimeters and even more top/bottom layers. I used PLA, which is more rigid than PETG.
Split the model into objects to assign different layer and perimeter settings to each part or to mark them as printable/not printable or to reorient them. On the Prusa Mini I printed the arms one at a time and diagonally.
I also used a 0.4mm nozzle and 0.2mm layer height, but bigger values there should be fine, too.
Design and description by DrJones , licensed CC-BY.
More 3D printed guitar and ukulele accessoriesMore 3D printed replacement parts
Frequently asked
How long does shipping take?
long reach soundhole clamp / bridge clamp (for guitar repair) is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
