Low-profile DIN rail clip
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~17 g
- Express shipping
- $20
More information

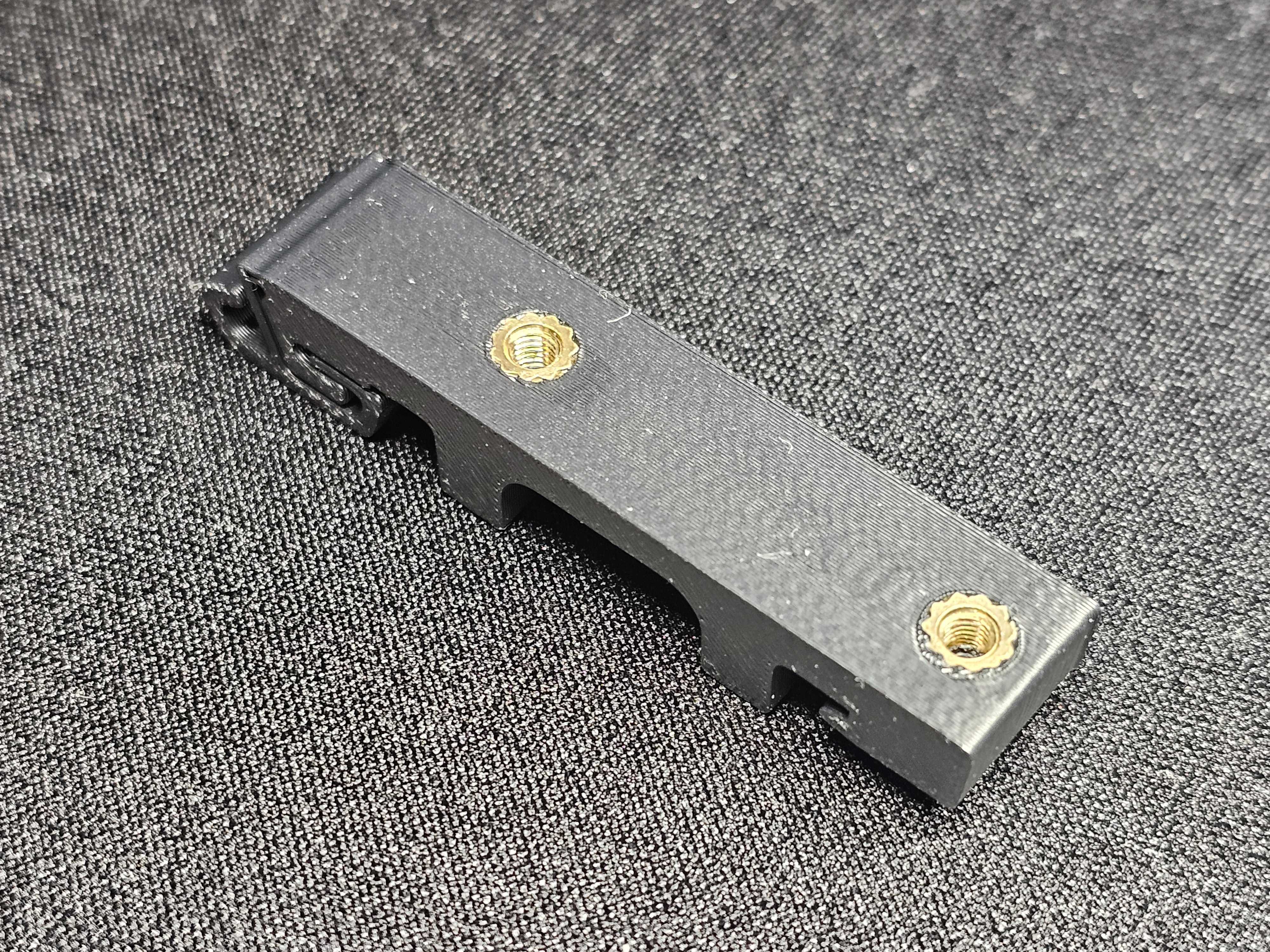

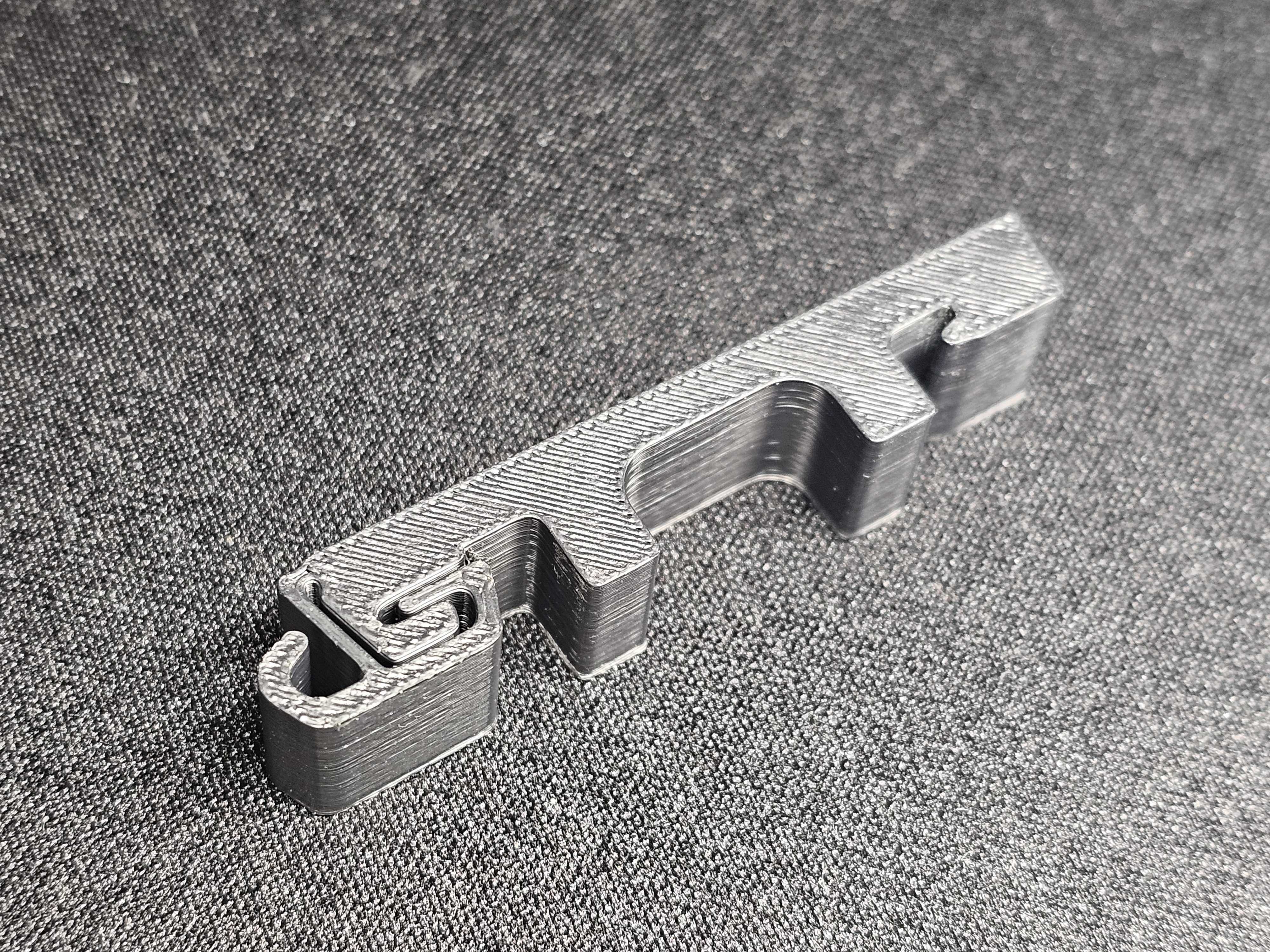

This DIN rail clip has a pull tab to release it from the rail. A flathead screwdriver or Allen wrench can be used to pry/hook and pull the tab.
Spacing between holes is 31mm.
Triangle symbol on the clip shows correct orientation with the mount.
Required parts:
• 2x M3x5x4 brass insert (Voron BOM standard insert) (example: Cnckitchen store)
DISCLAIMER: This model has very tight tolerances around the release tab, make sure your printer is well-calibrated to have a fully functional print. Compatible Only with standard 35 × 7.5 DIN rail (IEC/EN 60715)
Print settings
• 0.2mm layer height
• 4 wall perimeters
• 4 top/bottom layers
• 40% infill
• Currently only tested with ABS/ASA and PETG
Design and description by Oseo , licensed CC-BY.
Frequently asked
How long does shipping take?
Low-profile DIN rail clip is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
