Magnetic Dual-Axis Pulley for Flexible Filament – Friction Reduction for Prusa Enclosure
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~41 g
- Print time
- ~2.3 h
- Express shipping
- $20
More information
Overview

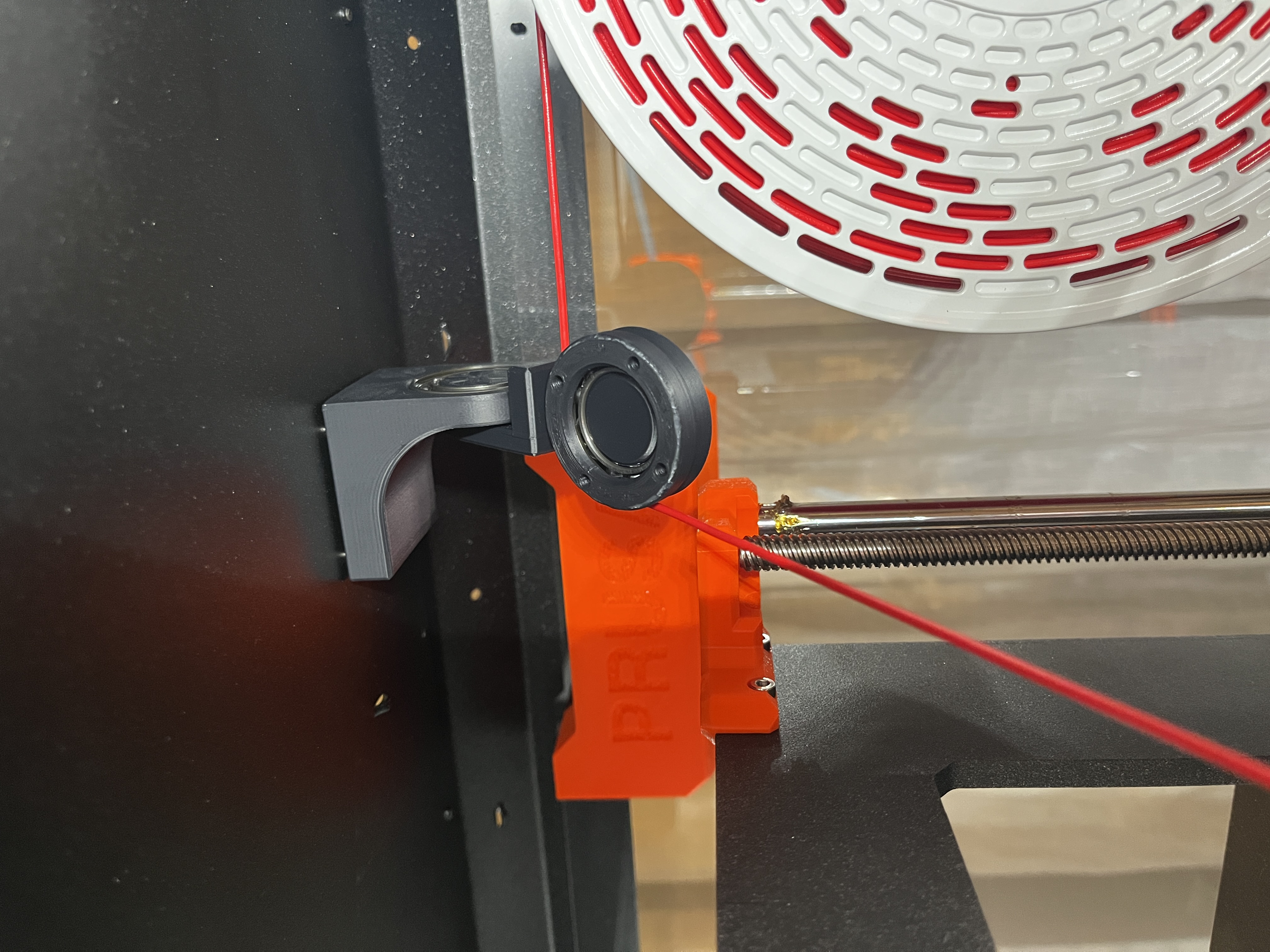

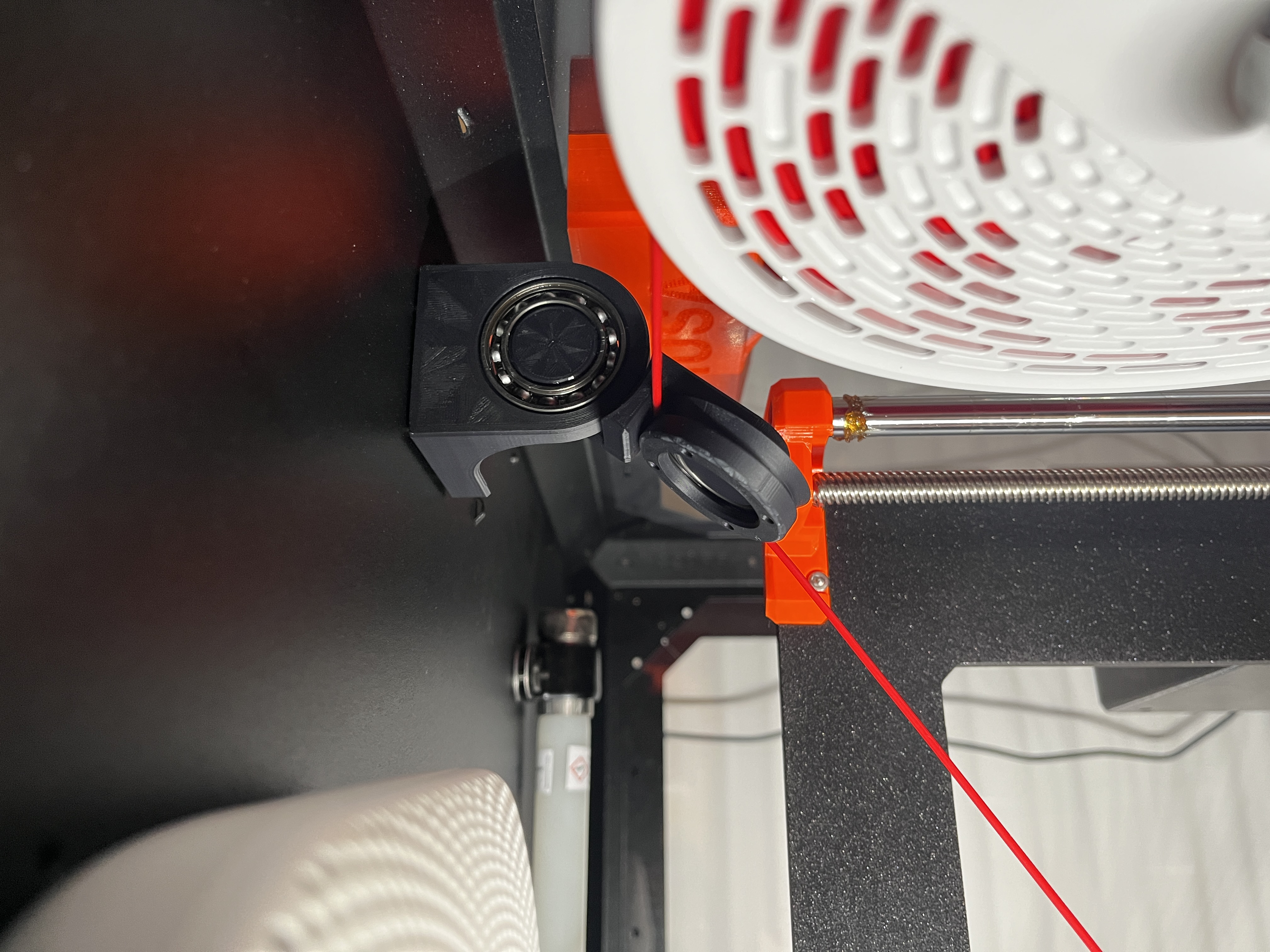

This magnetic pulley system reduces filament friction when printing with TPU or other flexible filaments inside the Original Prusa enclosure.
##
Features
• Dual-axis rotation:
• Axis 1: Guides filament smoothly from spool to extruder • Axis 2 (rotated 90°): Allows the pulley to pivot and follow the motion of the toolhead
• Magnetic mounting: Attach it anywhere in your enclosure to match your filament path and workflow. Easy to reposition Or move out of the way when not needed • Enclosed filament channel: the filament is fed through a tapered channel that prevents it from slipping out during printing.
Required Hardware
• Bearings: 2x 32mm OD, 20 mm ID, 7 mm thickness ball bearings • Magnets: 4x 4 mm diameter, 8 mm length cylindrical magnets
Print recommendations
• Use PETG or other sturdy material for strength • No supports required if oriented properly

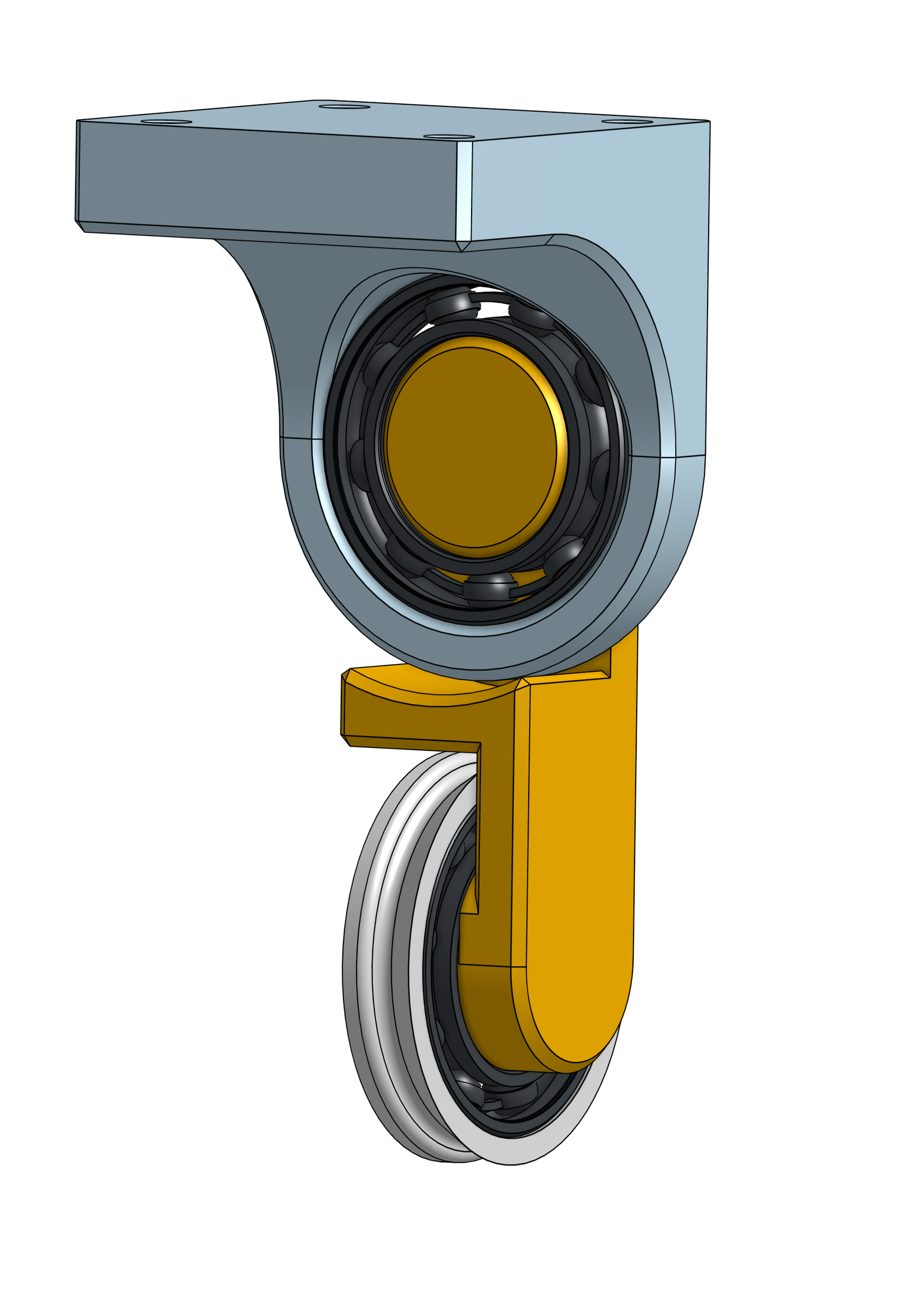

The .step file is included so you can easily adjust the design to fit your own setup, bearings, or magnet sizes.
Design and description by Alex_Repairs , licensed CC-BY.
