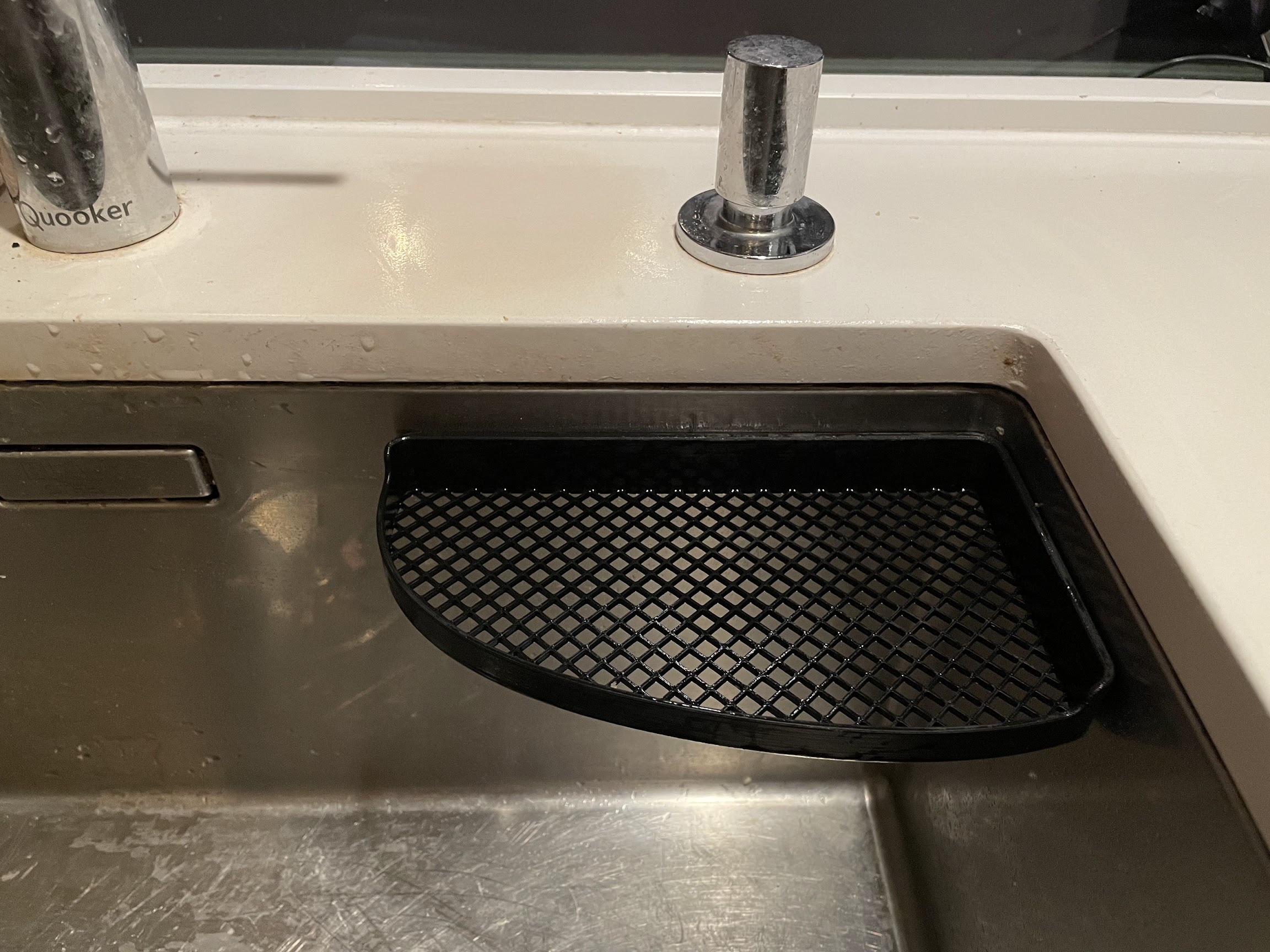

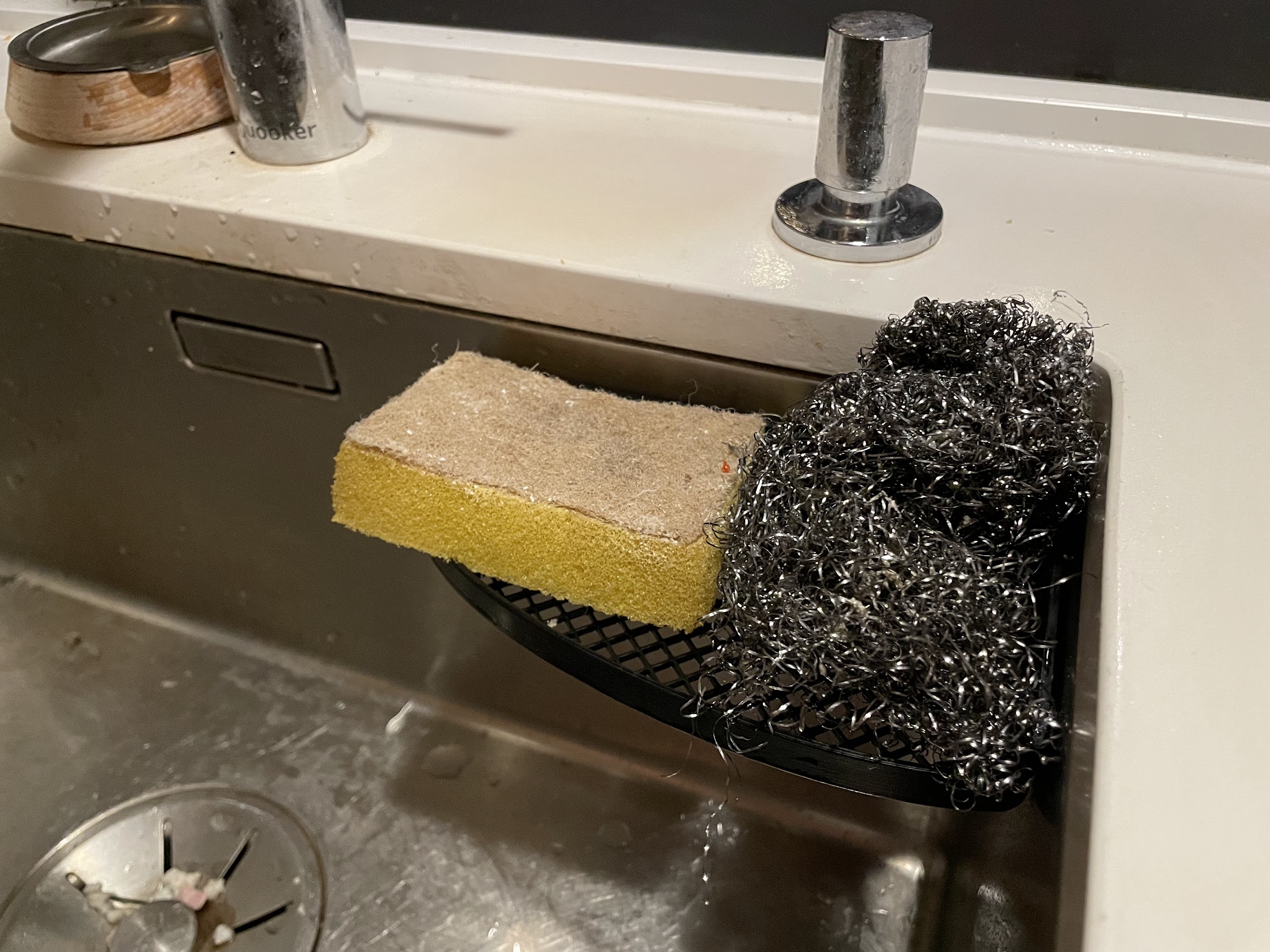

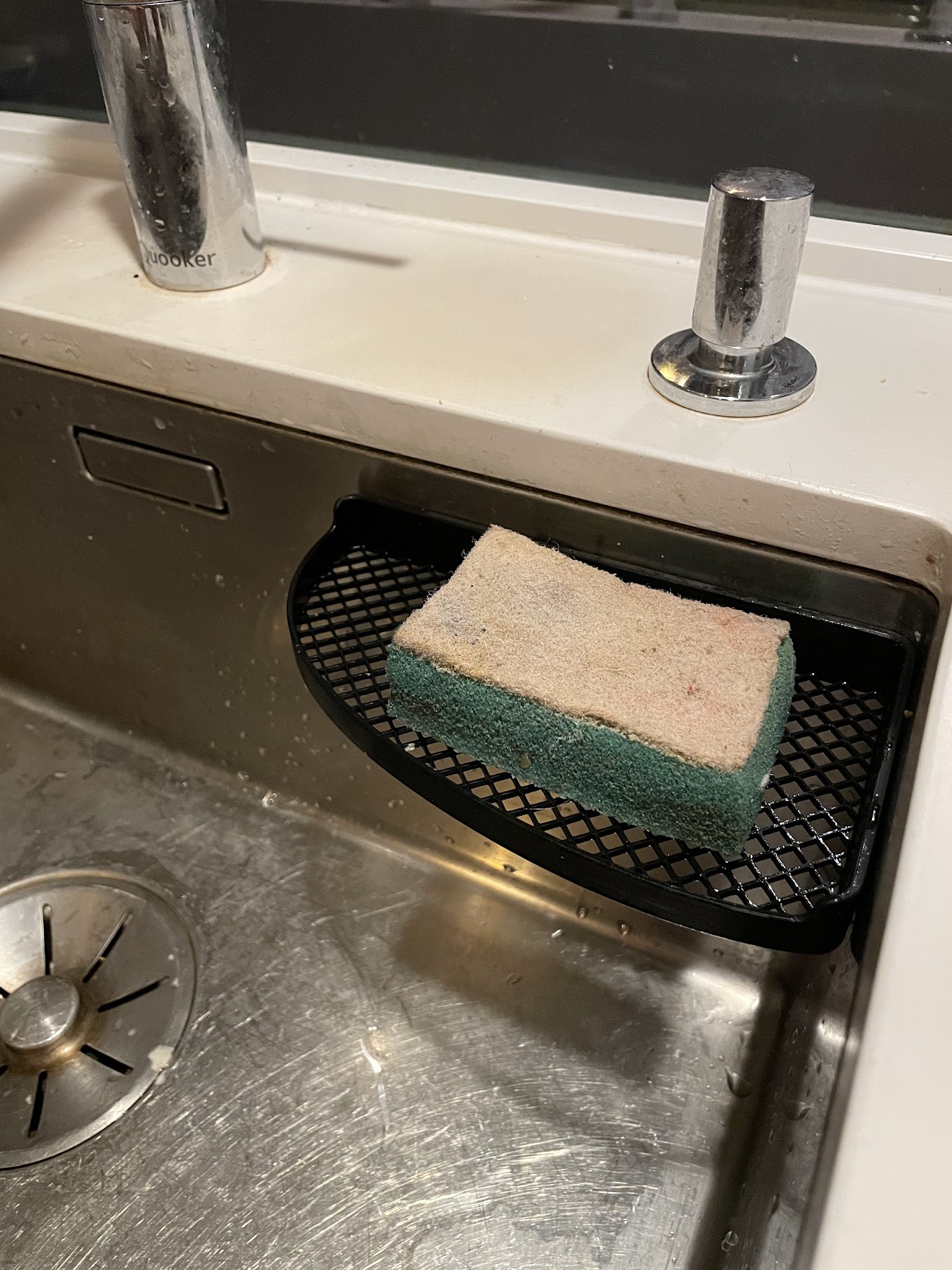

Magnetic Mesh Basket for Kitchen Sink

Magnetic mesh basket for your kitchen sink to hold sponges etc. It is magnetic so it's easily detachable if you need the full sink or need to clean the sink.

There are 3 versions, two rectangular large ones (165x90mm), left and right respectively, and one smaller, symmetric one (90x90). They are added as 3 different plates in the attached 3mf. The large shelf requires 10 round magnets (10x2), and the small one requires 8 round magnets (10x2)

Assembly

• Use superglue to add the 10x2 magnets to the holes of both the basket and the holder. Make sure to line up the polarities correctly!

• Test mount the basket and holder. Use basket to slide the holder up behind the sink. When in place, just remove the basket and the holder will fall down.

• Add some super glue (not the very fast acting version) to the front of holder where it will meet the sink and use the basket to slide the holder up behind the sink like in (2). Leave the basket in position until the glue is cured.

Design and description by mrmossevig , licensed CC-BY-SA.
