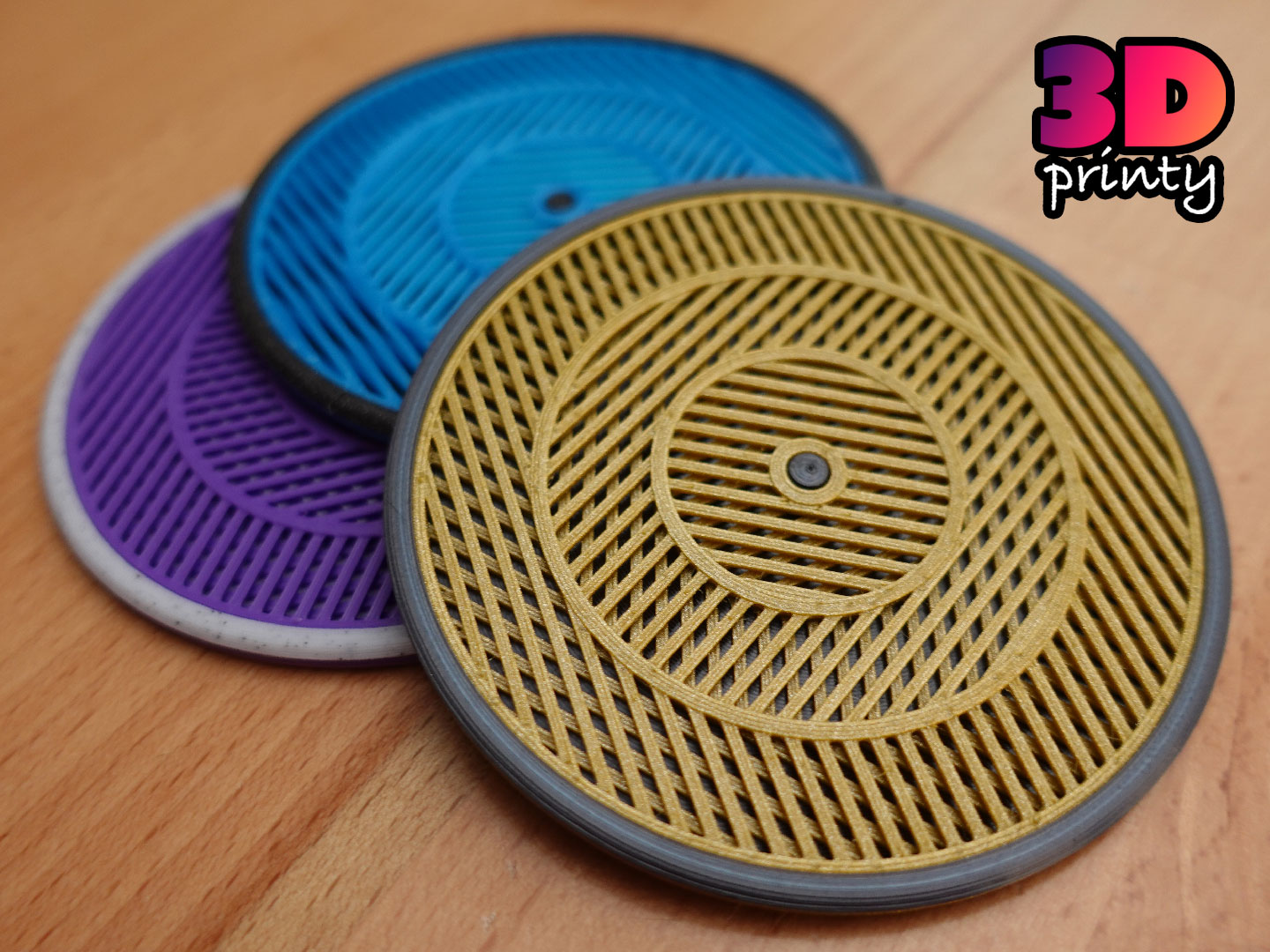

Moving Moiré Pattern Coaster

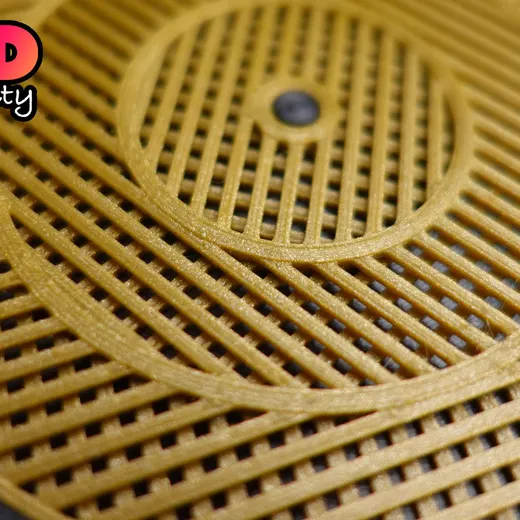

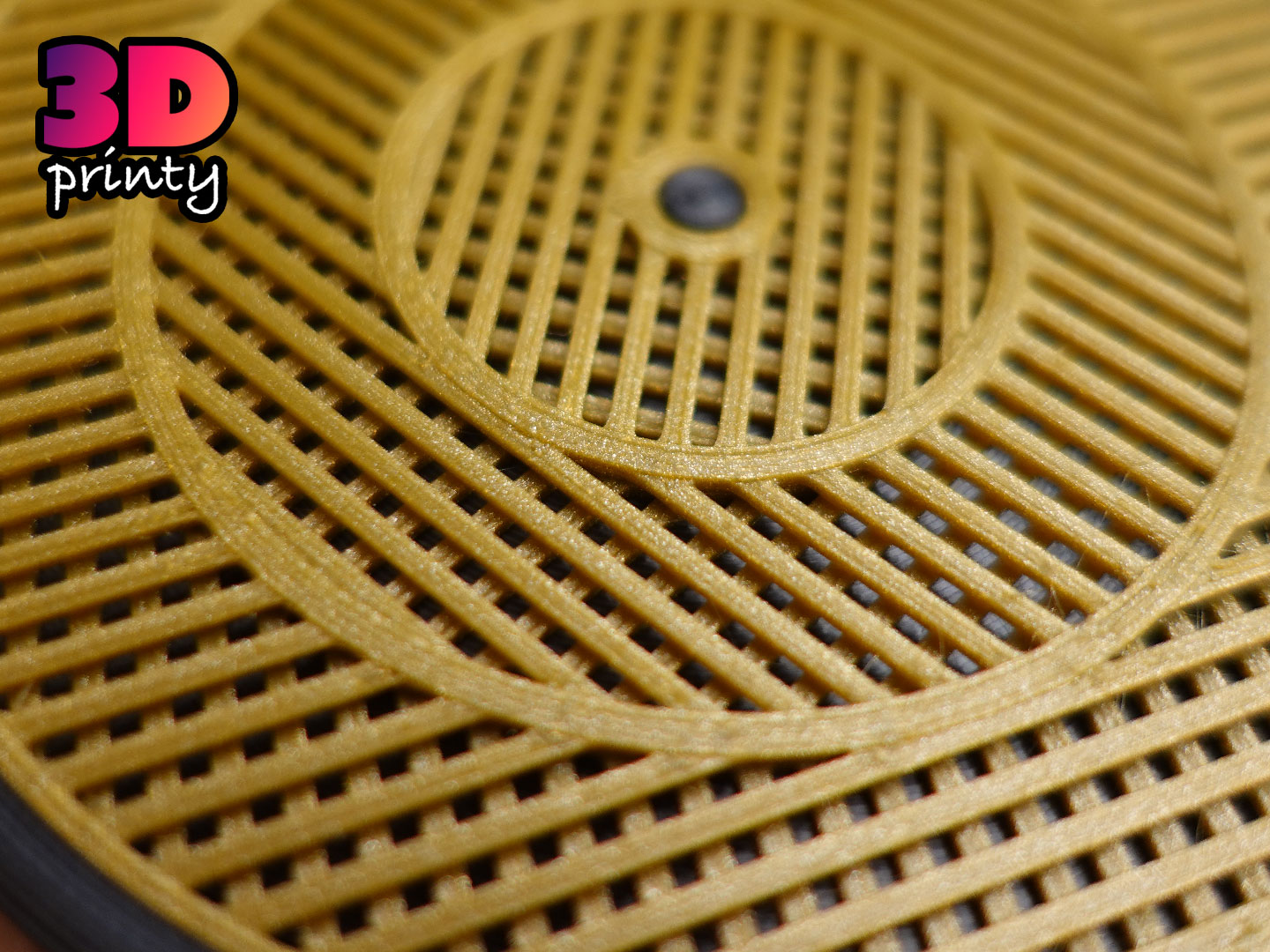

This coaster creates a moving moiré pattern through the rotation of a center disc. Even when it's not being used to protect tables from condensation, the coaster can provide a mesmerizing visual and tactile experience!

https://youtu.be/D0nCNdl3-aA

Print

• No supports or brim needed. • This design is optimized for 0.4mm line widths. Other line widths will work, but may result in small gaps in the thinner sections of the design. • For best results, swap out the filament color when printing the frame so that the line pattern stands out from the background. For my prints, I added a second filament swap back to the original color once past the line pattern. • Bright colors on a dark background will reveal the pattern more clearly than dark colors on a light background.

Assembly

After printing both parts, gently flex the insert until it fits under the lip of the frame on one side.

Continue pushing the insert under the frame as you work around the outer edge.

Important! The insert should be added with the smooth bottom facing down. This will give you a smoother rotation and better fit.

Options

• Deep Frame - The deep frame takes more time to print than the regular frame, but it will catch more condensation. • Wide Bars - Both the frame and insert have a “wide bars” variation for a larger, easier to print, texture. If printing this option, increase your perimeter count until each bar is made entirely out of perimeter lines.

##

Can I sell copies of this?

Yes! This project was shared under the Creative Commons - Attribution license.

This license allows selling copies, but you must provide proper attribution, as detailed in the license itself.

Please note that any other projects linked here (remixes or related projects) may have a different license. Please respect those licenses.

Click here for attribution examples

Design and description by 3D Printy , licensed CC-BY.
