Multi Position PCB Clamp
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~11 g
- Express shipping
- $20
More information

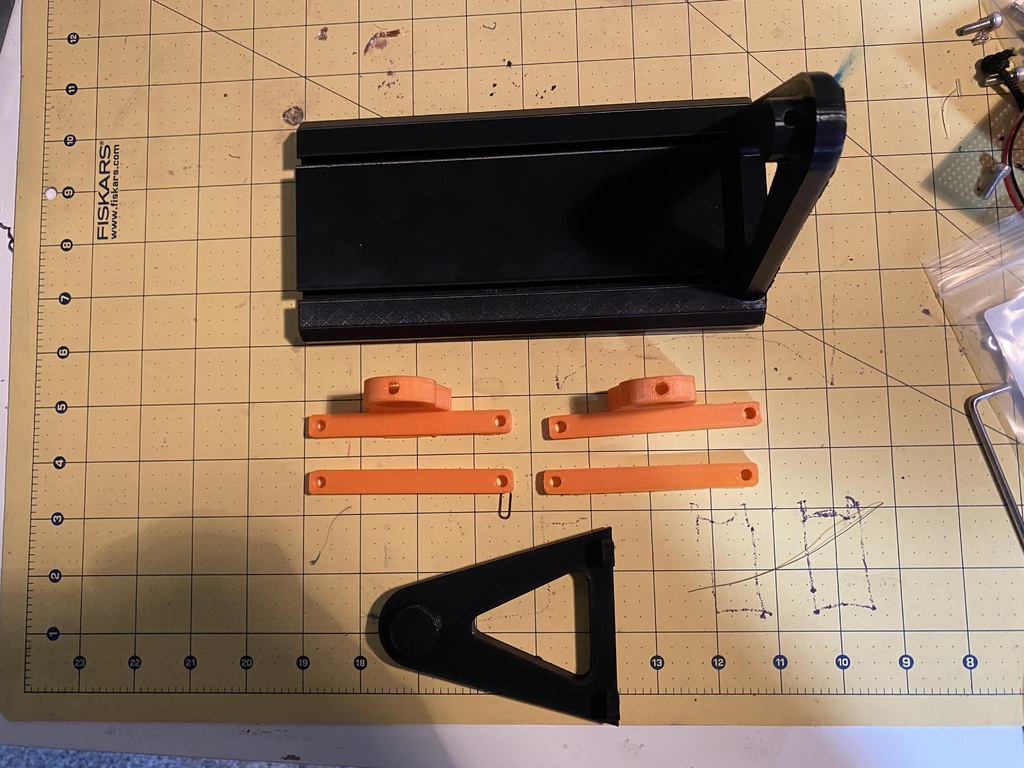

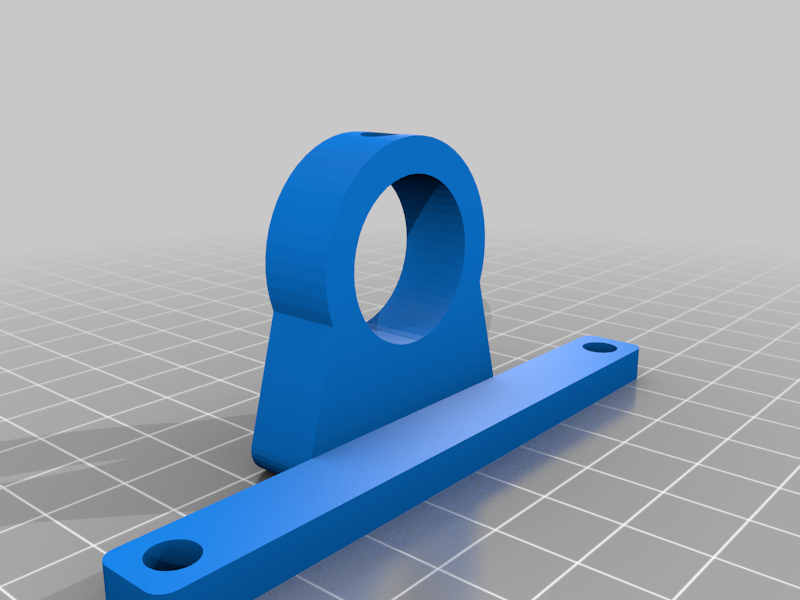

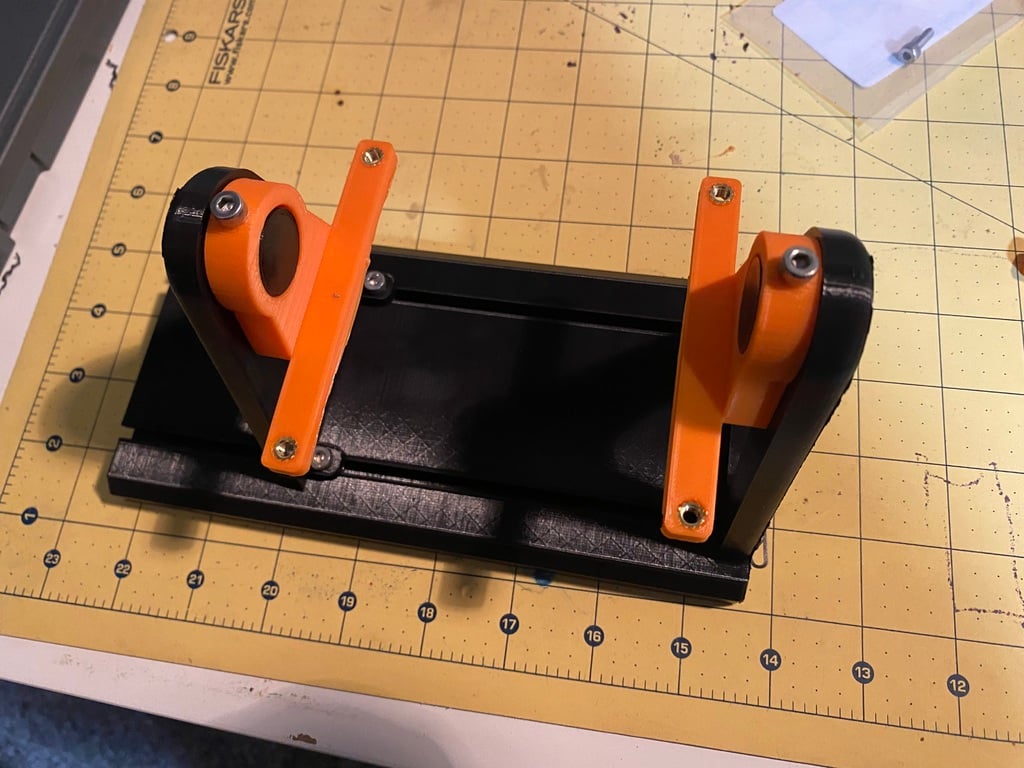

This is a 3D printed clamp for clamping PCB boards with a max width of 72mm, and a max length of 150mm. I will design other clamps for wider boards. The clamps rotate 90 degrees as shown in pictures. You will need to print 1 of each part except for CLMPS.PT2., of which 2 needs to be printed. NOTE: BASE. is 200mm tall.
Instructable with assembly instructions: https://www.instructables.com/Multi-Position-PCB-Clamp/
Print Settings
Printer Brand:
Creality
Printer: CR-10S
Rafts:
Doesn't Matter
Supports: No
Resolution:
n/a
Infill: 20%
Filament: n/a n/a n/a
Notes
BASE. and END.BRKT. print on their backs (clamp mounting studs up) without support.
Category: Tool Holders & Boxes
Design and description by CobraDesign47 , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Multi Position PCB Clamp is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
