Never lost Ikea Samla Clip Remix (11l, 22l, 45l, 65l)

I needed this great design from Canislupus for a 22l samla box, so I recreate a clean fusion 360 file based on his v1 for sharing and allowing easy further modifications.

Two models are proposed

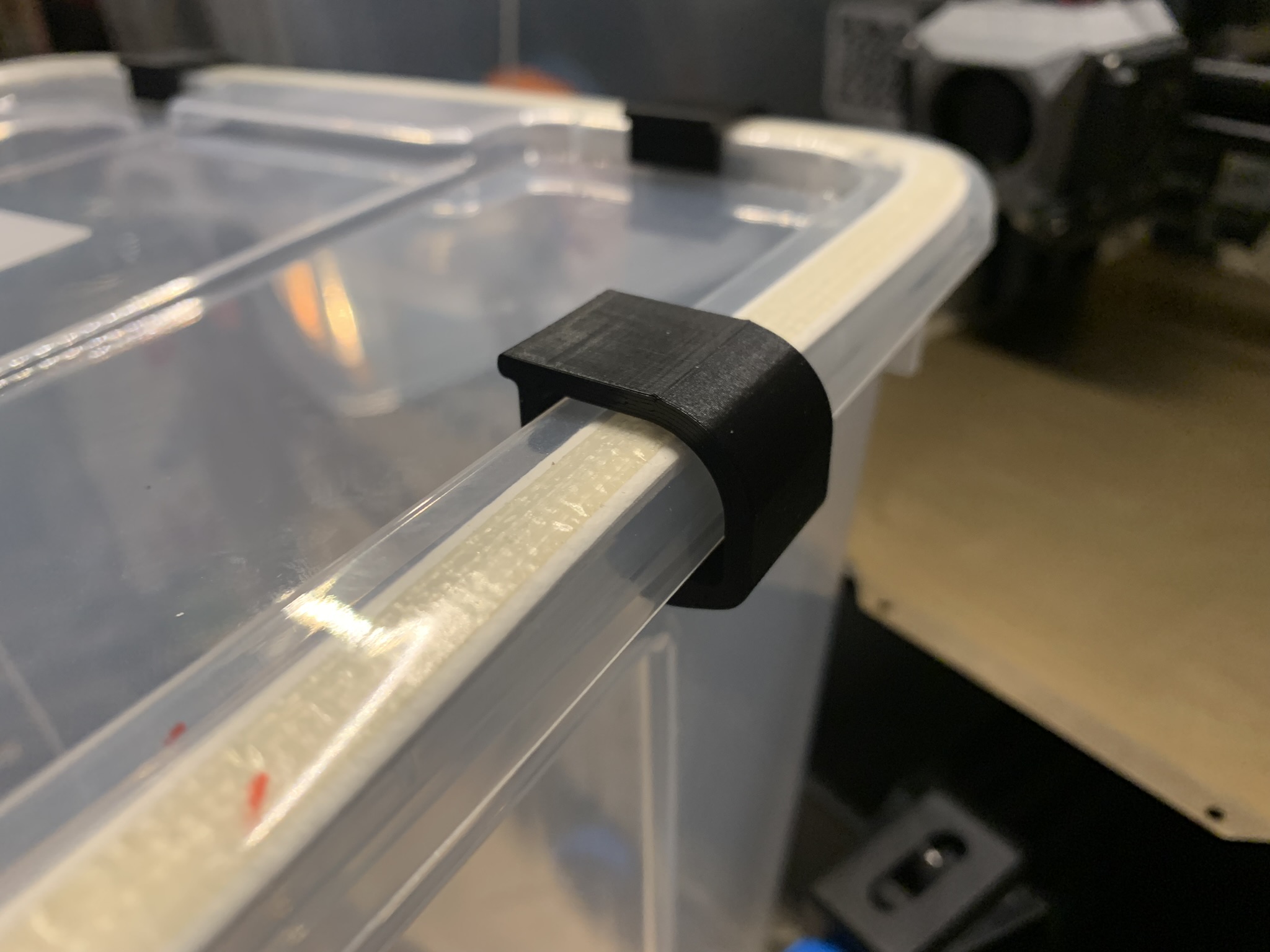

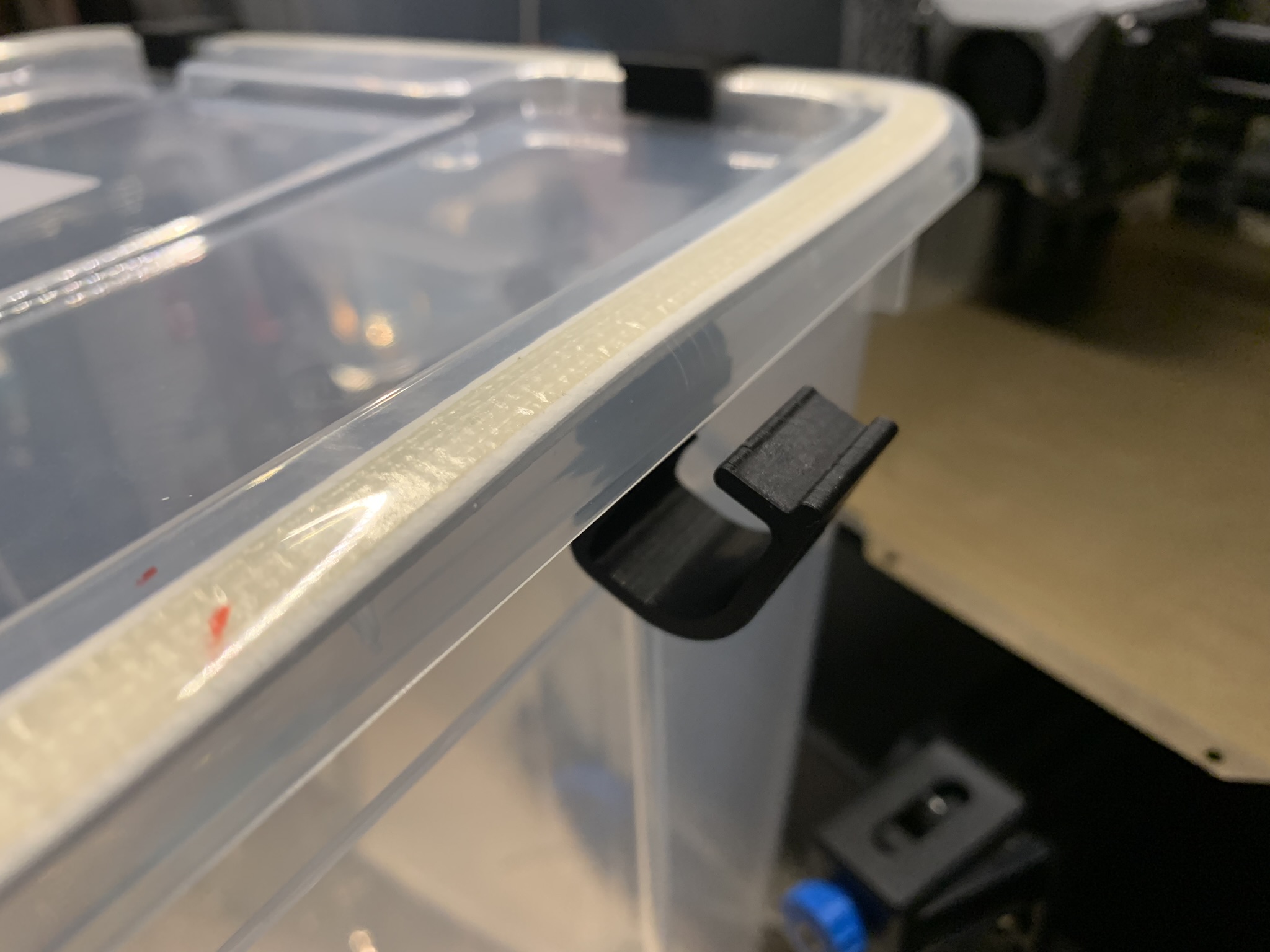

• 11-22l samla box clip v1 • Tested with 11l and 22l, it should be compatible with 5l box too, can anyone confirm that ? • Rounded edge to better fit samla box • Little chamfer for better print quality • Tighter close compared to the 45-65l original one

• 45-65 samla box clip v1 • Tested with 45l and 65l • Little chamfer for better print quality • Tighter close compared to the 45-65l original one • I was not planning to publish it in the first place but the print result of the hinge is better with this version than Canislupus original one. Since it should be identical from the original file I took in reference, I am not sure why but I think it is because I have regenerated the stl mesh from the clean new model I have created, maybe more polygons, so tolerances get better.

Fusion 360 file is available for easy modifications or remix

Printing feedback

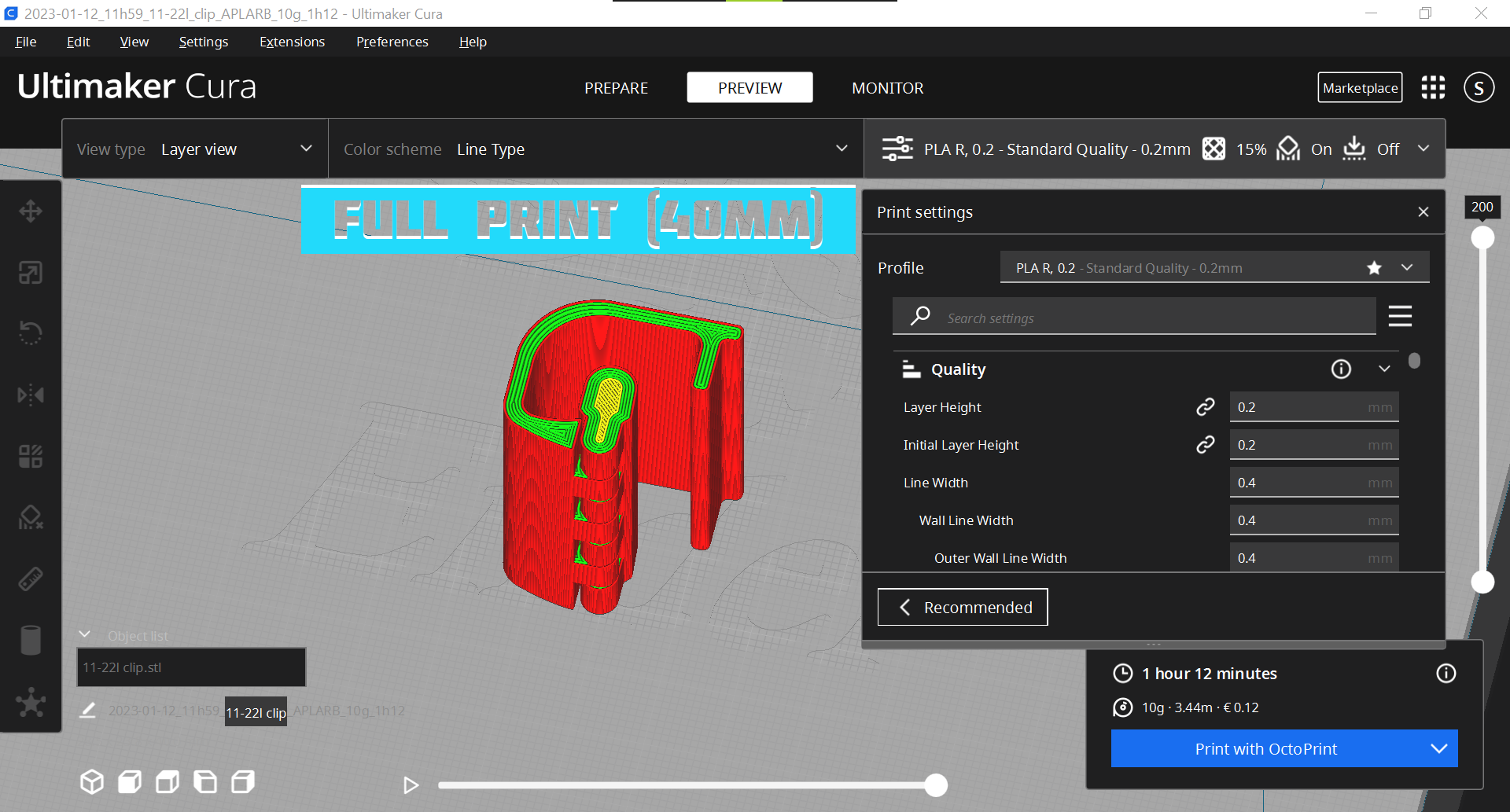

• Print in place, 5 walls/perimeters, 15%-30% infill, any material • Tip: half print the model work really well, just cut in the middle (20 mm) when positionning in the slicer as illustrated, half time gain • Use some glue or double side tape for a durable fixation on the ikea samla box

Note

All credits are going to Canislupus for his great original design. By chance, we published a remix at the same time on 12/01/2023, have a look at his versions:

• Link to his (45l + 65l) V2 • Link to his 11-22l version

Revision history

Date Version Description Comment

12/01/2023V1.0First releaseBased on Canislupus V1.0

13/01/2023V1.0Update descriptionAdd link to the V2.0 and his remix for 11-22l of the original creator (@Canislupus) published at the same time

19/01/2023V1.0Update name

Design and description by Slaig , licensed CC-BY.
